Feature

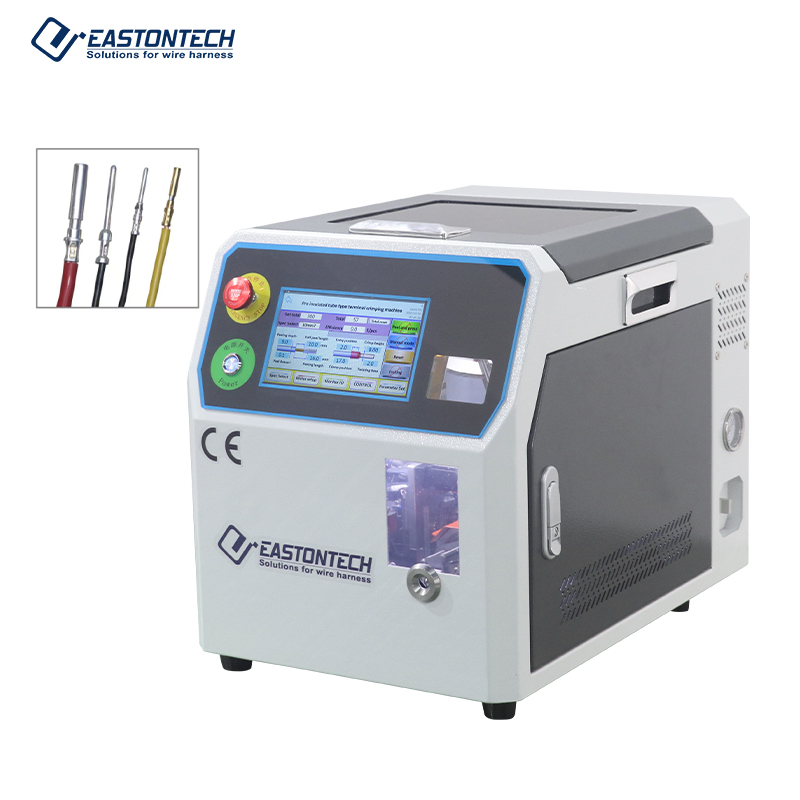

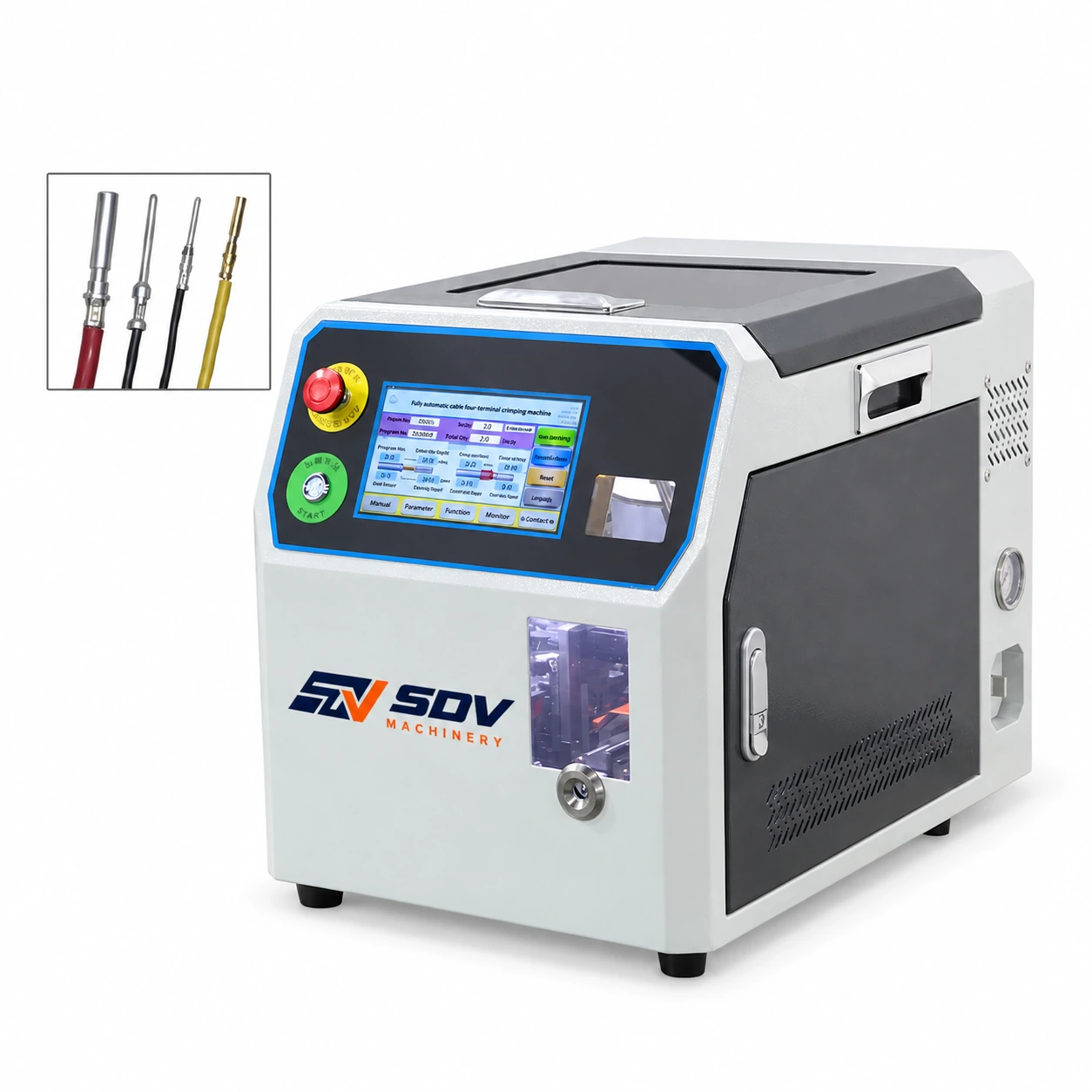

● Desk-top compact design with dimension 360*520*425mm and net weight 62KG, flexible to place at final product assembly workstation.
● Wide compatibility, multiple types of loose pin terminals can share one machine to save equipment procurement cost.
● All-in-one integrated process for full insulation stripping and terminal crimping with fully closed structure for safe operation.
● Combined stripping and crimping working flow reduces manual working steps and lowers overall processing cost.
● Processing wire range: 0.5~4.0mm²; wires below 0.5mm² support customized test after sample confirmation.
● Adjustable stripping length ranges from 6mm to 30mm; fit terminal specs with insulator length＜11mm and conductor length＜20mm.
● Fast production efficiency with 3.2 seconds processing for each single wire.
● Dual operation modes: automatic trigger working plus manual jog operation for flexible debugging and small-batch trial.
● Power parameter: AC220V 50Hz, rated power 1500W, required clean compressed air 0.5~0.6Mpa.
● CE & RoHS certified, conform to global factory safety production standards.
Application Range
● Small-size loose pin connector processing for consumer electronics internal wiring harness.
● Home appliance control board connecting wire stripping and terminal crimping production.
● Automotive small sensor wiring and miniature connector assembly processing.
● Industrial control equipment PCB internal connecting wire loose pin crimp manufacture.
● Communication module and precision electronic component wire harness fabrication.
