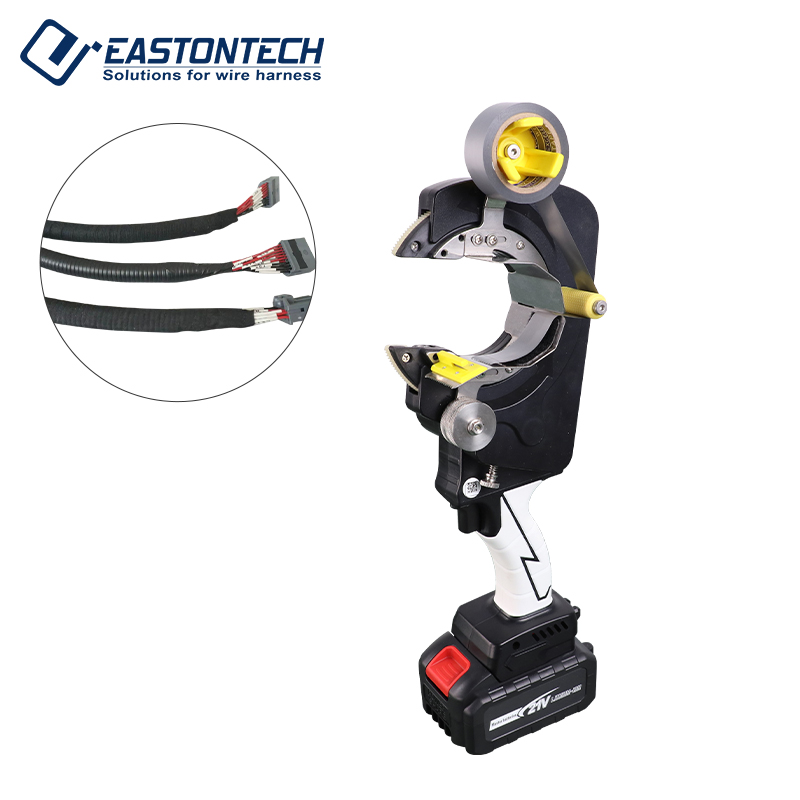

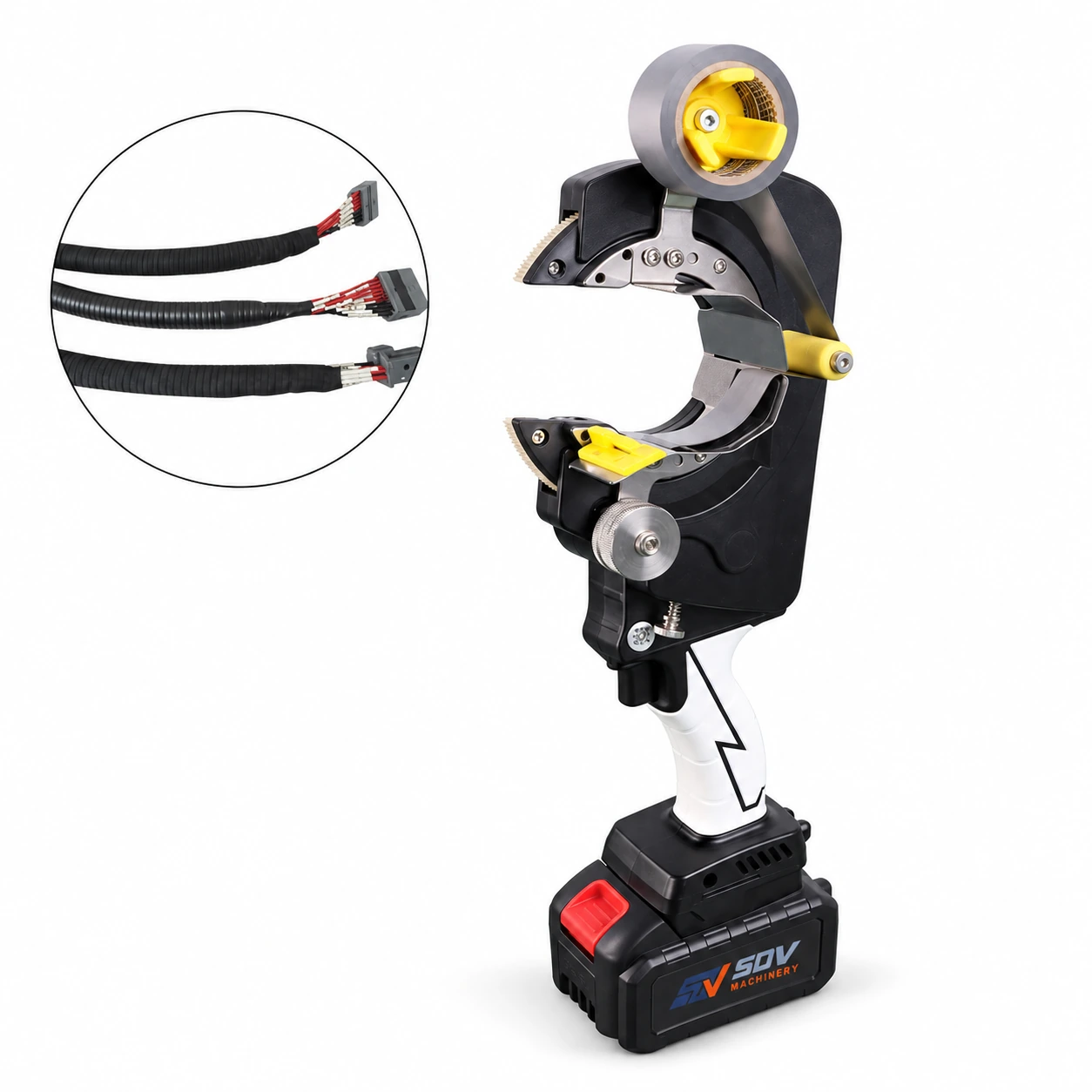

Feature
● Lithium-Powered Cordless Portability: Driven by a high-capacity built-in 6000 mAh lithium battery that delivers up to 5 hours of continuous wrapping runtime on a single charge. This cordless architecture allows operators to move completely unobstructed around massive wire harness layout boards without dragging restrictive power cables.
● Flexible Branch-Skipping Design: Features an ultra-lightweight 1.75 kg body frame paired with an open-ended mechanical head that can hook onto the cable bundle at any location. This agile structural configuration makes it exceptionally simple to skip offshoot wires and wrap complex, multi-branched automotive wire harnesses cleanly.
● Adjustable High-Speed Taping: Supports both full-wrap and half-overlay wrap configurations with a fully adjustable execution speed of 2 to 4 circles per second. It smoothly applies PVC electrical tape, standard adhesive tape, and sound-dampening felt tape ranging from 9 to 25 mm in width.
● Ergonomic Fatigue Reduction: Engineered with a dynamic, weight-balanced body profile and paired with an independent balancing slant belt system to distribute operational weight evenly across the arm. This user-centric mechanical layout minimizes muscle strain and physical exhaustion during extended factory operating shifts.
● Adaptable Model Configurations: Available in two distinct factory specifications to align perfectly with your manufacturing plant workflow and floor preferences. The standard EW-1665 version includes an integrated stabilizing bottom plate, whereas the ultra-agile EW-1665-1 model offers a pure, minimalist handheld framework.
Application Range
● Automotive Harness Assembly Boards: Spot-wrapping and continuous insulation taping of complex automotive cockpit, door panel, and engine bay wiring looms on vertical layout boards.
● Aerospace & Defense Electronics: Bundling lightweight, multi-branch signal cables inside avionics panels and communication bays under tight physical space constraints.
● Industrial Machine Control Cabinets: Taping multi-wire groupings directly inside heavy equipment enclosures where stationary machinery cannot fit.
● White Goods & Appliance Wiring: High-mix packaging of internal wiring harnesses for washing machines, refrigerators, and heating ventilation systems.
