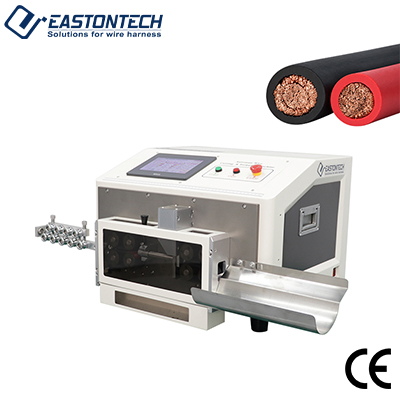

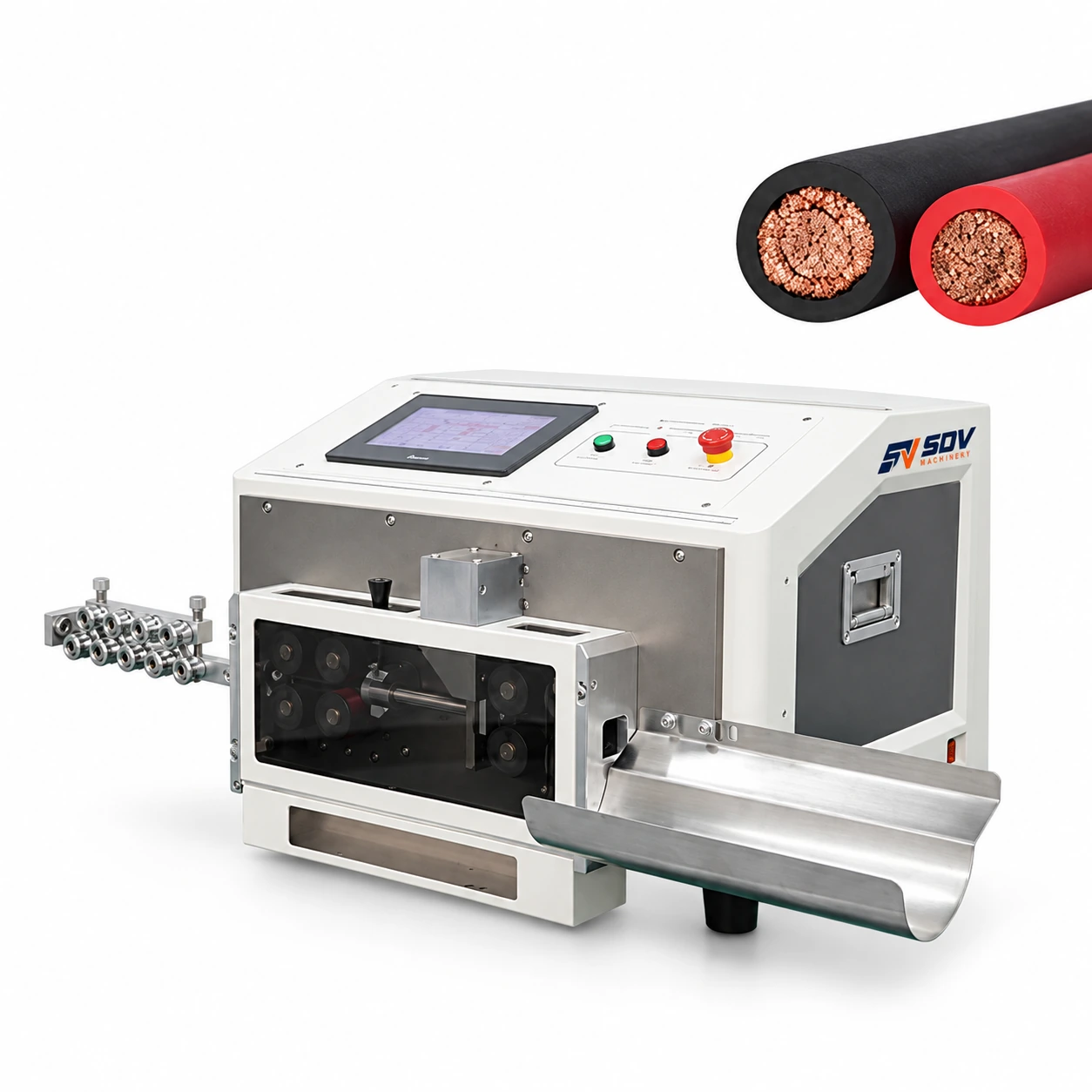

Feature
● 100% Fully Electric (No Air Compressor Required): Eliminates the need for external pneumatic air lines, drastically reducing operational noise, maintenance costs, and facility installation constraints.
● 12-Roller Crawler Feeding System: Increases feeding friction and distributes clamping torque evenly across the cable jacket, guaranteeing zero surface indentation while maintaining high-speed accuracy.
● Two-Way Screw Pressing Wheels: Ensures precise concentric alignment of wires with the cutter center, preventing off-center blade contact and protecting delicate inner copper strands from damage.
● Ultra-Precise Hybrid Stepper Drive: Delivers exceptionally quiet operation with a stripping accuracy of 0.01 mm across cutting lengths from 0.1 mm to 99,999.9 mm.
● 16-Position Intermediate Window Stripping: Supports head stripping (up to 250 mm), tail stripping (up to 100 mm), and up to 16 customizable intermediate stripping points along a single cable.
● Intuitive Touchscreen CNC Interface: Full computer numerical control allows operators to adjust cutting depth, wire length, and roller clamping pressure digitally, storing preset processing profiles for quick job switching.
Application Range
● New Energy Vehicles & Charging Systems: High-volume cutting and multi-stage stripping of battery connection cables and power supply harnesses up to 35 mm².
● Industrial Electric Cabinets & Power Distribution: Clean processing of single-strand hard wires (BV) and multi-strand flexible conductors (BVR).
● Airless / Mobile Production Environments: Ideal for workshops or factory floors without central compressed air infrastructure, offering instant plug-and-play installation.
