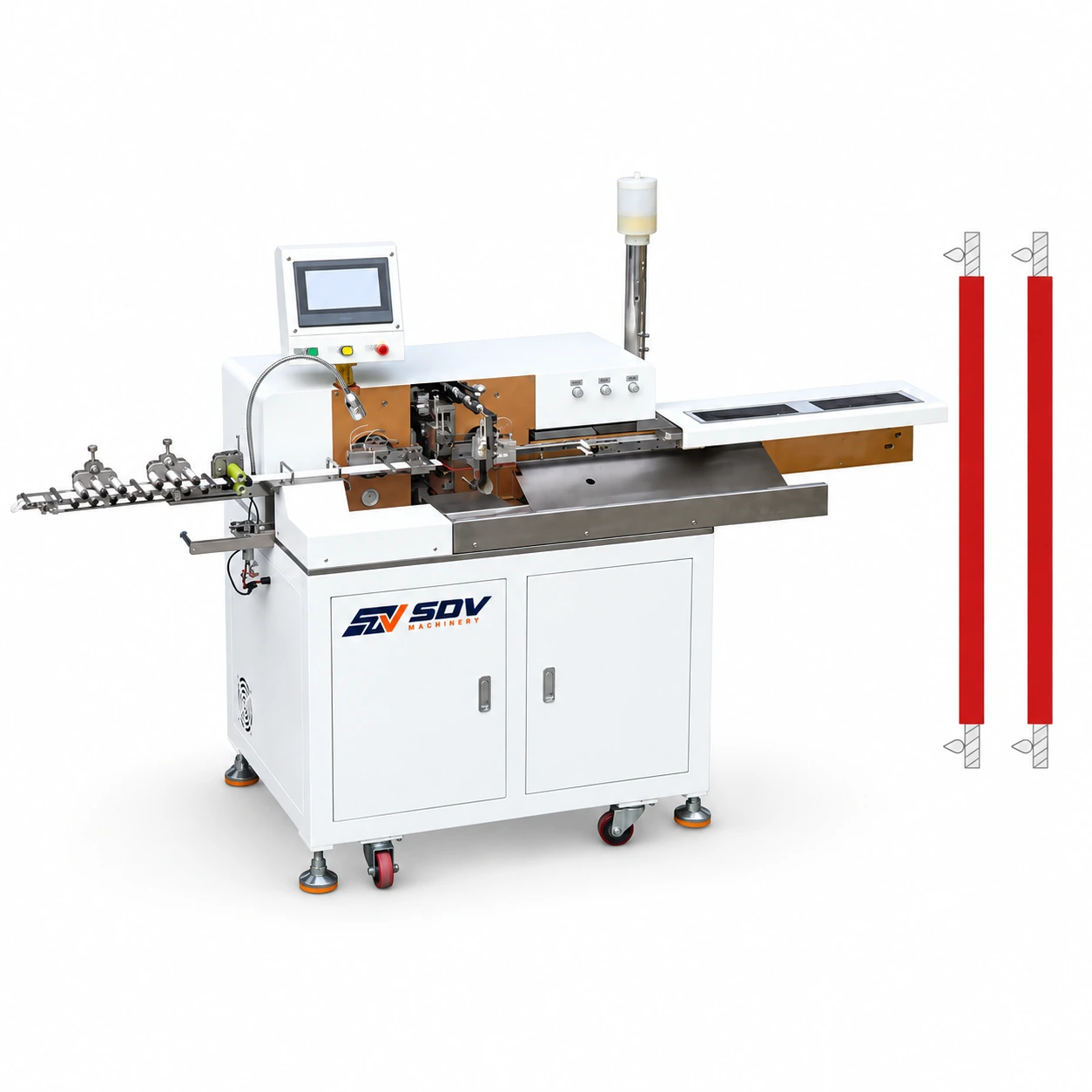

Feature
● Industry-Leading Parallel Output: Eliminates the single-wire bottleneck by scaling production based on your wire gauge, achieving a massive yield of 6,000 to 18,000 pieces/hour (at 100mm length):
AWG 32 - AWG 28: Processes 10 wires simultaneously.
AWG 26 - AWG 24: Processes 8 - 9 wires simultaneously.
AWG 22 - AWG 20: Processes 6 - 7 wires simultaneously.
AWG 18 - AWG 16: Processes 4 - 5 wires simultaneously.
● Comprehensive Double-Ended Processing: Automatically executes precise wire cutting, single/double-end half or full stripping, digital motor-driven twisting, and highly consistent double-head solder tinning in one single cycle.
● Broad Gauge & Tough Insulation Adaptability: Flawlessly runs thin-to-medium wiring profiles from AWG 32 to AWG 16, easily stripping electronic wires, high-temperature lines, and slick Teflon wires without core wire nicks.
● Micro-Programmable Finishing: Fully adjustable via the intuitive touch screen LCD display, featuring a cutting length of 10-830mm, stripping lengths up to 12mm (upgradable to 15/18mm), twisting lengths of 2-10mm, and clean tinning depths of 0.5-11mm.
● Automotive-Grade QC & Safety Sensors: Features integrated fail-safe detection for wire shortage, wire knotting, and low air pressure (0.6Mpa), drastically lowering material waste.
● Eco-Friendly Clean Workstation: Built with standard automatic collection systems for waste flux, tin slag, and rubber scrap, keeping your high-speed line free of debris.
● Rigid Heavy-Duty Frame: Engineered on a precise screw, guide rail, and reducer transmission chassis weighing 380kg (1720×750×1450mm), requiring a compact footprint of just 3m².
Application Range
Consumer Electronics & Jumper Bundles: The definitive production setup for multi-conductor ribbon cables, board-to-board internal jumper wires, and sensory lead lines in smartphones, white goods, and office hardware.
Aviation, Medical & Signal Arrays: High-precision parallel preparation of delicate multi-core data links requiring completely uniform twisting and microscopic solder tin coatings.
Industrial Automation & Power Supplies: Prepares massive batches of neatly tinned, low-resistance multi-wire connectors for power rails, transformer blocks, and control cabinet relays.
