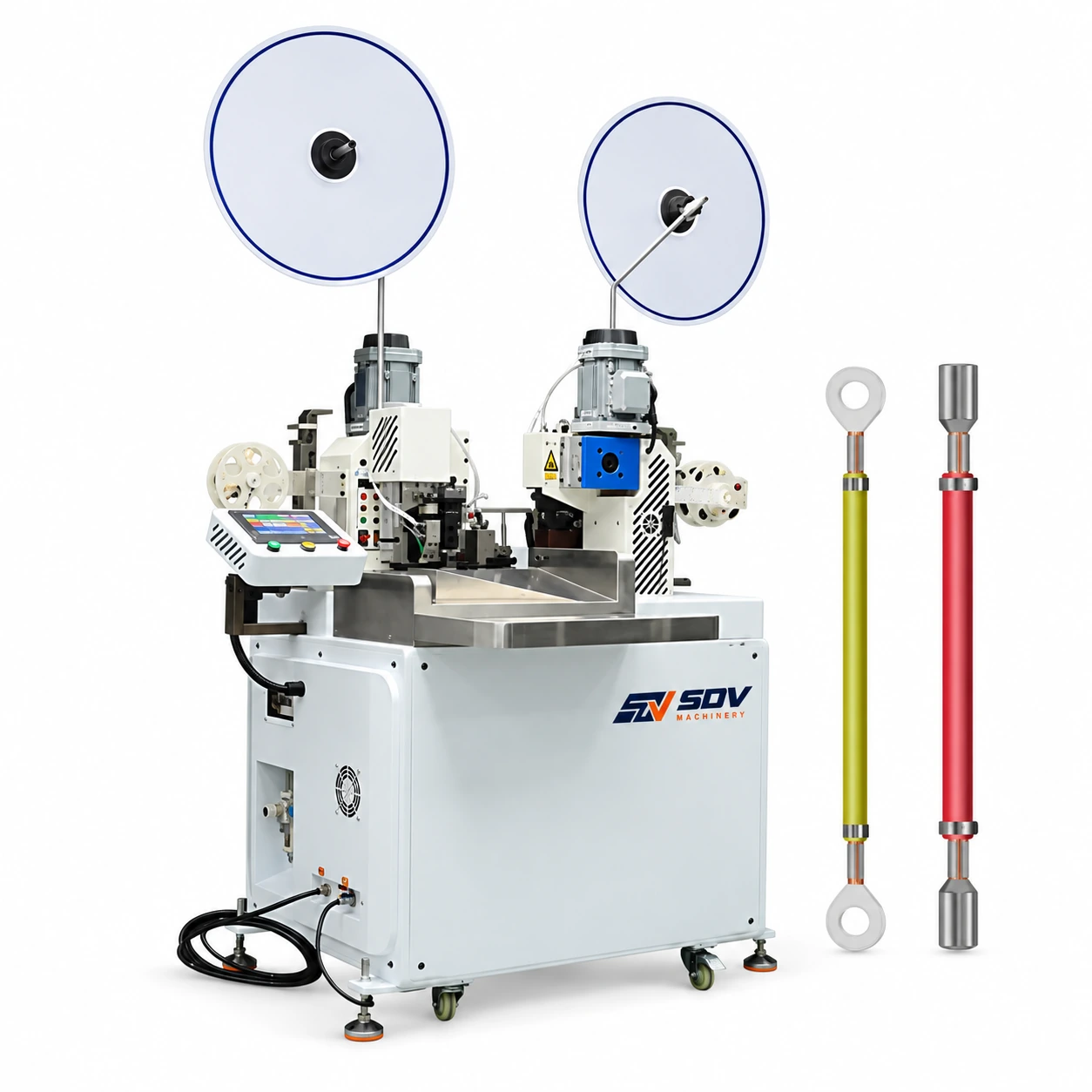

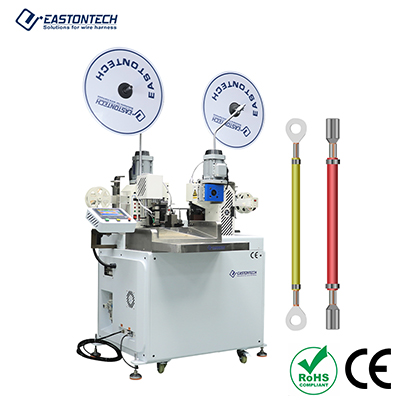

Feature
● Massive Production Throughput: Delivers ultra-high-speed automation with a capacity of up to 4200 pieces/hour, maximizing factory floor ROI.
● Broad Wire Compatibility: Flawlessly processes electronic, Teflon, and high-temperature wires ranging from AWG 30 to AWG 14.
● Servo-Driven Cutting Precision: Uses a 4-wheel wire feed and precision screw rod/guide rail to maintain tight cutting tolerances within±0.1 (0.1 + 0.005*L)mm.
● Rigid 2T Casting Press: Equipped with a 350 kg casting-type precision terminal machine delivering 2T crimp capacity with low noise and zero clutch-failure downtime.
● Universal Mold Integration: Fully compatible with universal horizontal and vertical mini-applicators for fast, 5-minute production changeovers.
● Industrial 4.0 Error Detection: Features real-time detection for wire knotting, missing wire, and low air pressure (0.4-0.8Mpa), with an optional Terminal Pressure Monitor (CFM).
● Space-Saving Architecture: Demands a compact floor footprint of just 3.5m² (Machine size: 1230×820×1600mm) running on standard AC220V/50Hz (2000W) power.
Application Range
● Consumer Electronics & Appliances: High-volume output of internal wiring loops, white goods jumpers, and connector assemblies requiring double-ended termination.
● Automotive & Sensor Sub-Harnesses: High-speed processing of mid-to-fine gauge signal lines, steering wheel harnesses, and automotive sensory modules.
● High-Temperature & Specialty Wiring: Seamlessly cuts, strips, and crimps tough Teflon and high-temperature wires used in industrial heating elements, power supplies, and aerospace components.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
