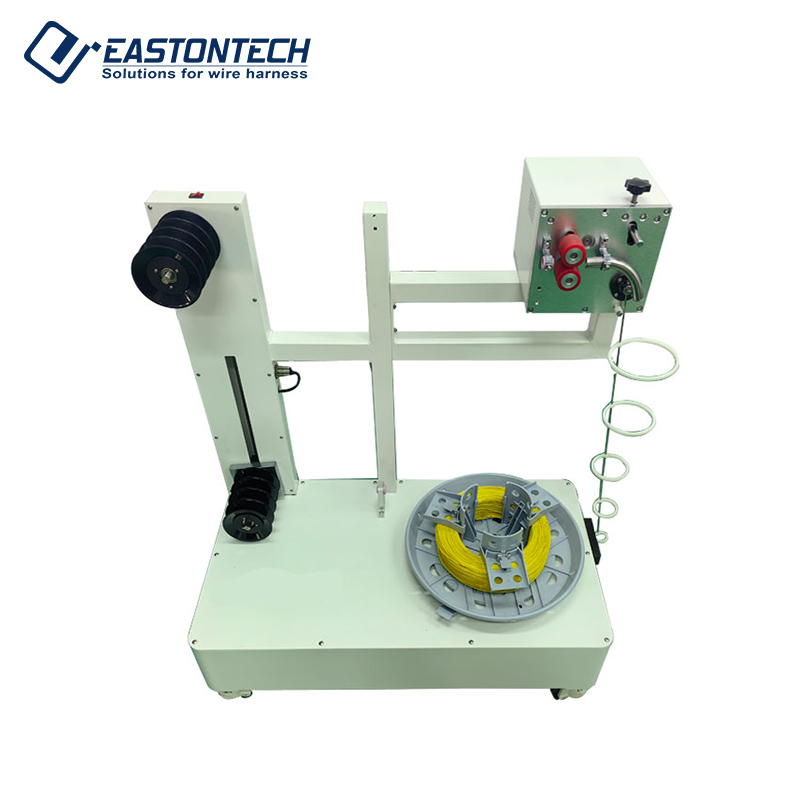

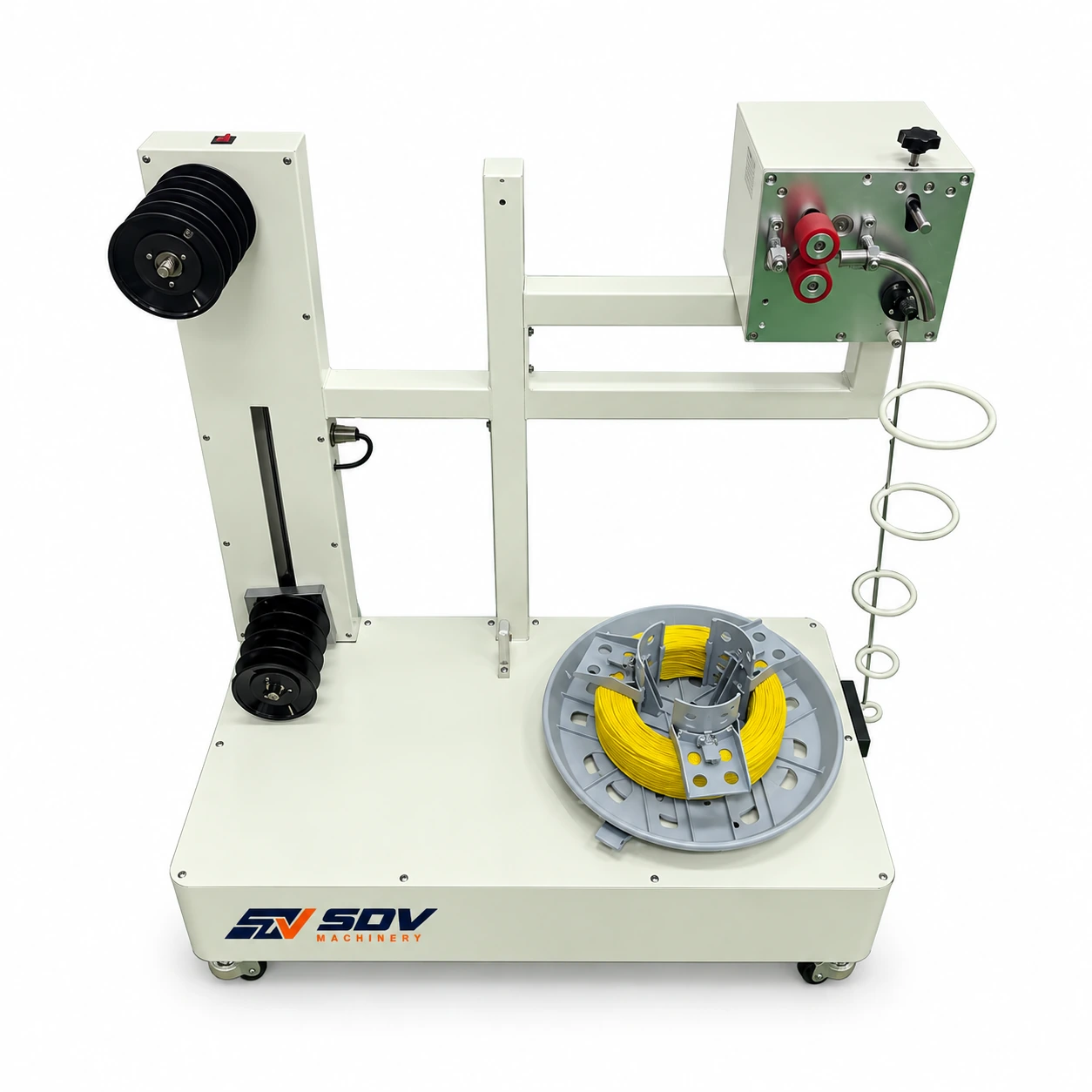

Feature
● Double Servo Drive System: Dual-servo architecture delivers exceptional synchronization, high responsiveness, and micro-precision speed control to match fast-acting wire processing lines.
● Rapid 60 m/min Feed Wire Speed: High-velocity pre-feeding up to 60 m/min eliminates material drag, preventing feeding slippage and cutting length errors.
● Powerful 400W Servo Motor (3,000 r/min): Provides immediate acceleration and smooth braking response to keep wire tension constant without overruns or entanglements.
● 30 kg Spool Loading Capacity: Robust structural frame supports cable reels and wire drums with an outer diameter up to 350 mm (120 mm ID) weighing up to 30 kg.
● 4-Reel Data Recipe Memory: Stores up to 4 sets of reel data parameters, enabling operators to switch between different wire types quickly without re-entering parameters.
● Compact Floor-Standing Footprint (50 kg): Measuring 850 × 420 × 850 mm, this 50 kg floor unit integrates easily into automated cutting, stripping, and terminal crimping lines.
Application Range
● Automotive Wire Harness Lines: Synchronized pre-feeding for high-speed automatic wire cutting, stripping, and crimping machines.
● Control Cabinet & Panel Wiring: Tension-free feeding of insulated wires and multi-conductor cables from heavy 30 kg spools.
● Appliance & HVAC Power Leads: Rapid feeding for high-volume automated terminal processing workstations.
● Electronics & Industrial Cable Assemblies: Precise pre-feeding that prevents wire jacket stretching and conductor deformation.
