Feature

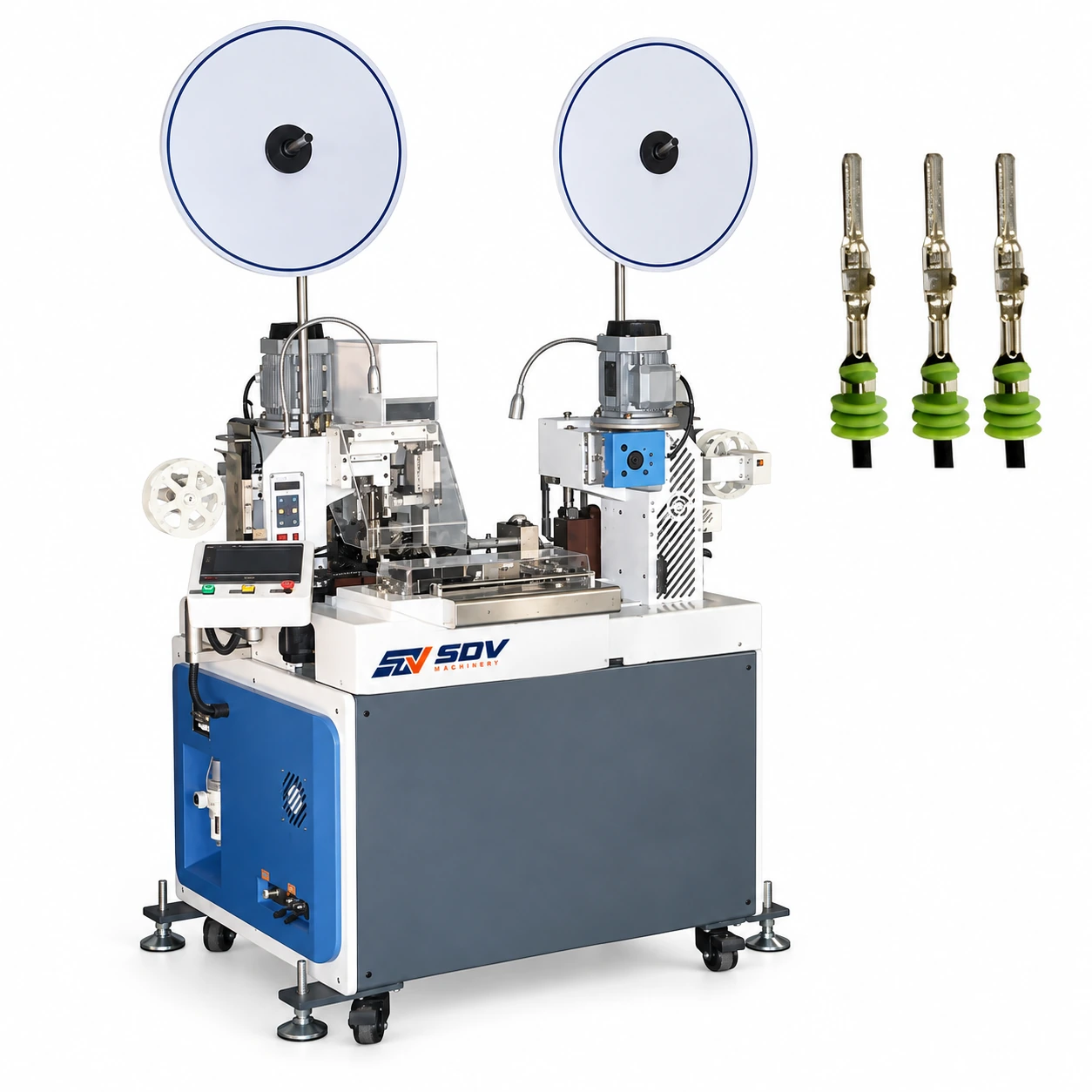

● High-Integration Workstation: Combines wire cutting, dual-end stripping, single-side weather seal insertion, and double-ended terminal crimping into one process, reaching a capacity of 1200-1700 pcs/hour (L=100mm).
● Tough Wire Capability: Engineered to process standard electronic wires, high-temperature wires, and slick Teflon wires ranging from AWG 28 to AWG 16.
● Gas-Tight 2.0T Press: Equipped with dual 2.0T crimping force presses, supporting customizable 30mm or 40mm strokes to fit global industry-standard mini-applicators.
● ±0.1mm Cut Precision: Maintains rigid mechanical cutting tolerances within ±0.1(0.1+0.003*L)mm(L=cutting length), allowing a flexible strip length profile (front ＜16mm, end ＜18mm).
● Industrial 4.0 Fault Detection: Features real-time sensors monitoring low air pressure (0.5-0.7Mpa), wire run-out/overload, terminal run-out/overload, and crimp errors to prevent material waste.
● Heavy Anti-Vibration Frame: Built on a stable 550KGS chassis (1700*920*1580mm) operating reliably under 220V/50HZ (3000W) power.
Application Range
● Automotive Powertrain & Sensors: Mass production of IP67/IP69K-rated engine harnesses, oxygen sensors, and chassis wiring where one side interfaces with a sealed waterproof plug and the other terminates inside the cabin module.
● Outdoor Energy & Lighting: Ideal for terminating weather-proof connections found in outdoor LED lighting arrays, solar panel junctions, and EV charging auxiliary circuits.
● Harsh-Environment Industrial Controls: Provides reliable dual-ended terminations for heavy-duty washing machines, marine control electronics, and industrial pumps operating in high-moisture environments.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
