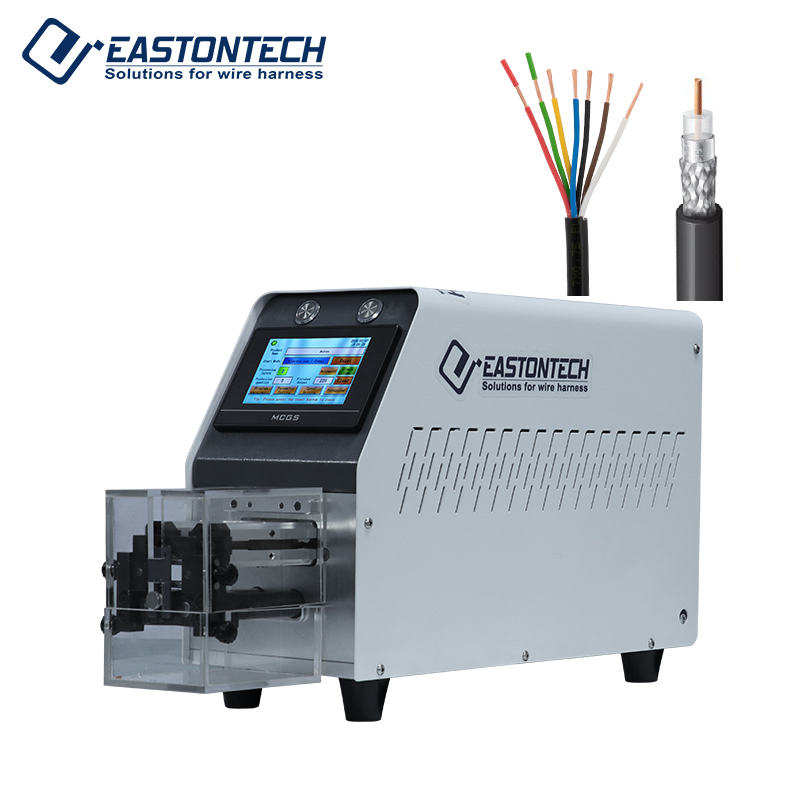

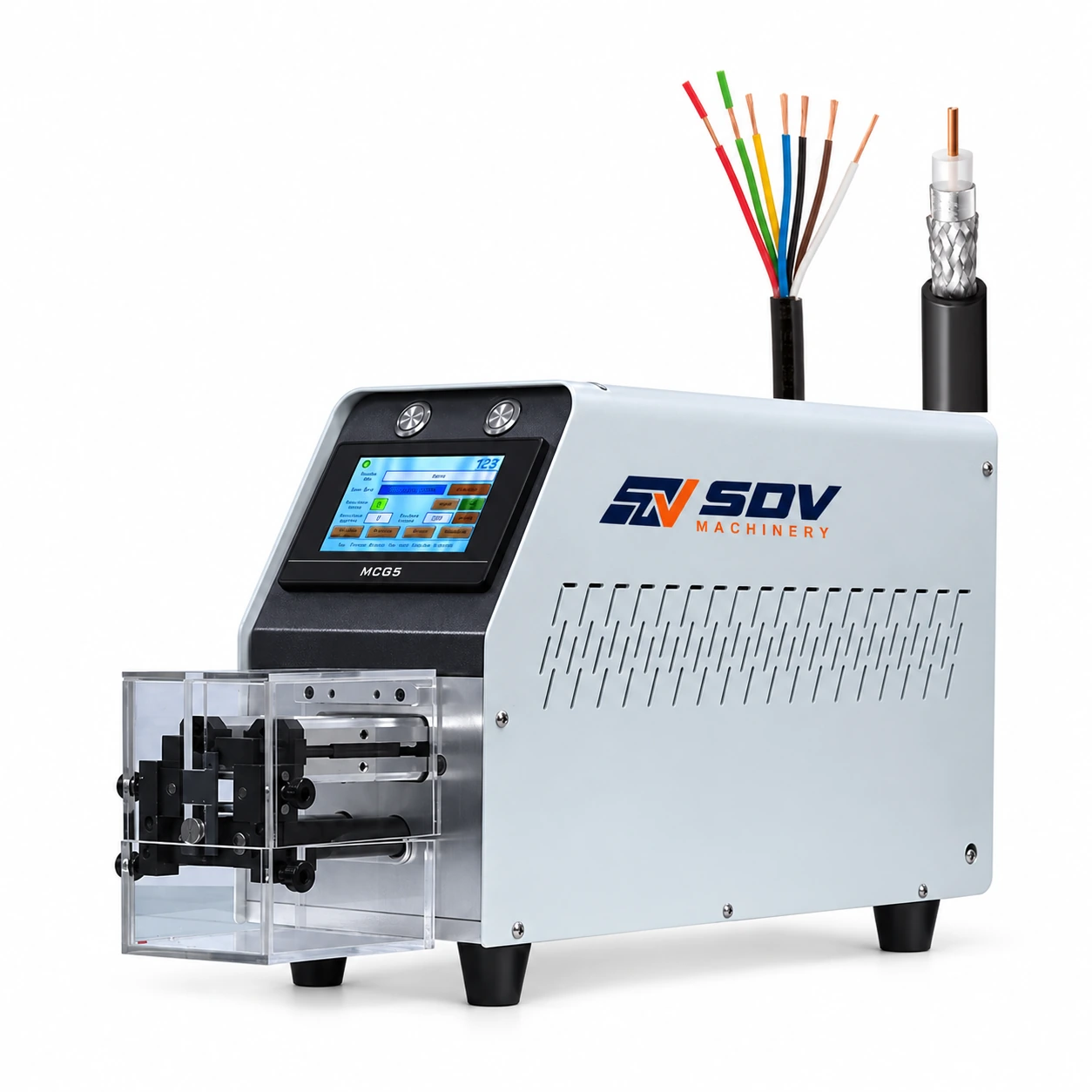

Feature
● Universal 90° Tungsten Steel V-Blade: Features imported tungsten steel V-shaped blades that handle various wire gauges and insulation types without needing frequent blade replacements.
● 100% Electric Operation (No Compressed Air Required): Operates on a quiet, energy-efficient 300 W electric motor, eliminating pneumatic hose setups, compressor noise, and compressed air costs.
● Multi-Layer High-Precision Stripping: Capable of stripping up to 5 layers per cable (such as multi-core shielded or jacketed wires) with a fine step depth precision down to 0.05 mm.
● Versatile Processing Modes: Touchscreen controls support full-stripping, half-stripping, double-end stripping, long-length stripping (up to 40 mm), and multi-step stripping program recipes.
● Flexible Tri-Mode Initiation: Operators can trigger processing cycles via foot pedal, manual touch start, or automatic sensor initiation to match ergonomic preferences.
● 100-Recipe Memory Storage: Store and instantly recall up to 100 wire processing parameters directly from the intuitive touchscreen interface for fast job changeovers.
Application Range
● Automotive Wiring Harnesses: Precise jacket and conductor stripping on multi-core sensor wires, battery cables, and ECU harness leads.
● Industrial & Control Panel Cables: High-accuracy multi-layer stripping for power cables, control cabinet interconnects, and DIN rail wiring.
● Home Appliance & Power Tools: Rapid stripping of power cord jackets, silicone wires, and internal distribution leads.
● Electronics & Telecom Wiring: Fine precision stripping on multi-conductor signal cables without strand damage or conductor fraying.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
