Feature

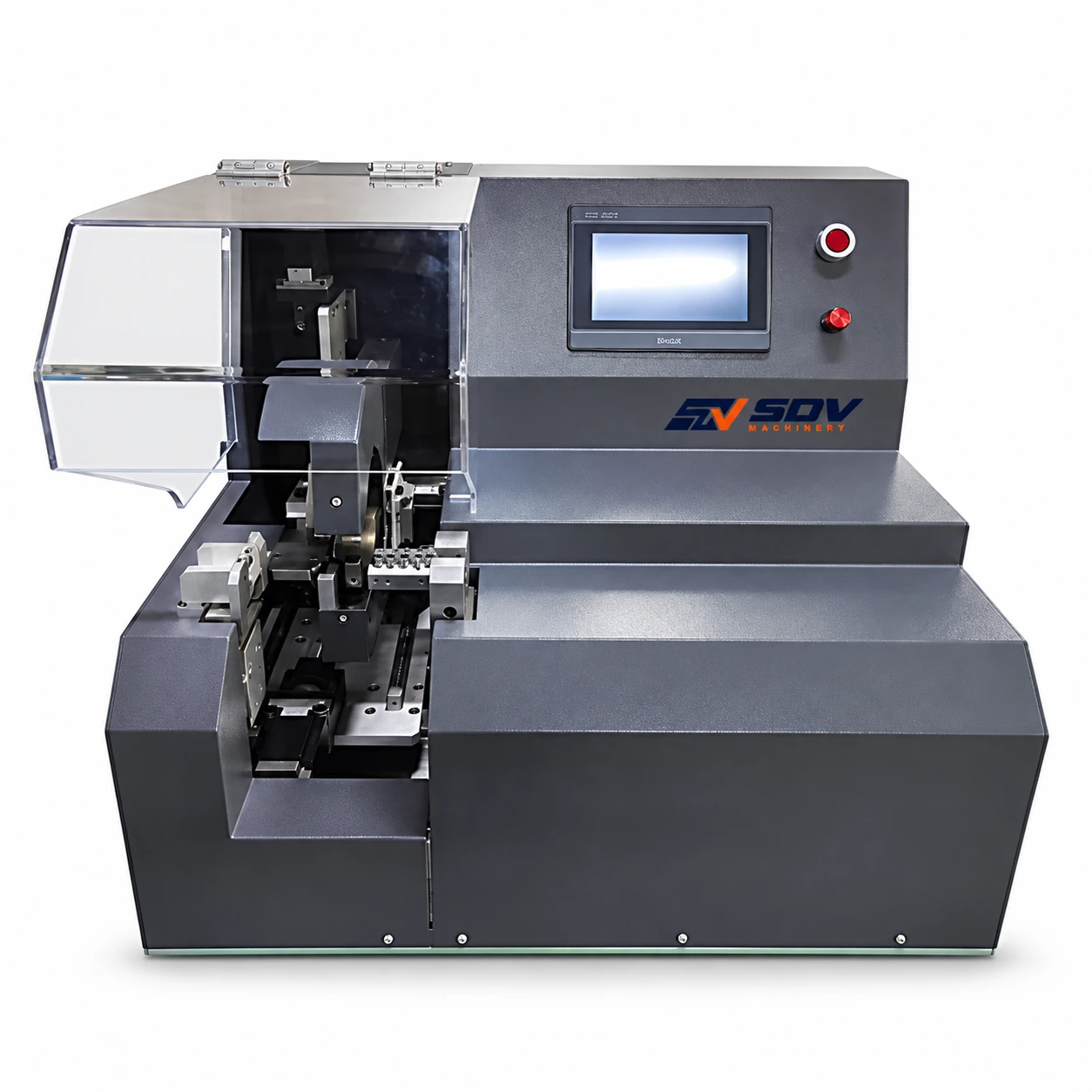

● Multi-Point Precision Taping (±2 mm Accuracy): Achieves exact positioning along cable runs and branch joints, ensuring uniform harness geometry and bundle tightness.
● Integrated Clamping, Wrapping & Auto-Cutting: Combines cable clamping, smooth rotary wrapping, and clean tape cutting in one automated step to eliminate manual scissors and manual holding.
● Versatile Tape Compatibility: Processes standard PVC, cloth, duct, and acetate industrial adhesive tapes up to 40 mm wide with roll outer diameters up to 105 mm.
● Flexible Dual Start Controls: Features both a foot pedal switch and hand-push button start for maximum operator ergonomics, safety, and operational speed.
● CE & RoHS Certified Industrial Build: Low-maintenance 400 W pneumatic-electric system (0.4–0.6 MPa) engineered to international safety and quality standards for demanding factory environments.
Application Range
● Automotive Wiring Harnesses: Spot taping and branch bundling for engine harnesses, chassis cables, and door wiring trees.
● Home Appliance Wire Bundles: Spot wrapping and insulation securing for multi-wire control bundles in washing machines, refrigerators, and HVAC units.
● Rigid Tubes & Corrugated Conduit: Securing protective sleeving, split conduits, and rigid fluid lines with adhesive tape.
● Industrial & Commercial Cabling: Wrapping power cabling, control cabinet jumpers, and telecommunications wire bundles.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
