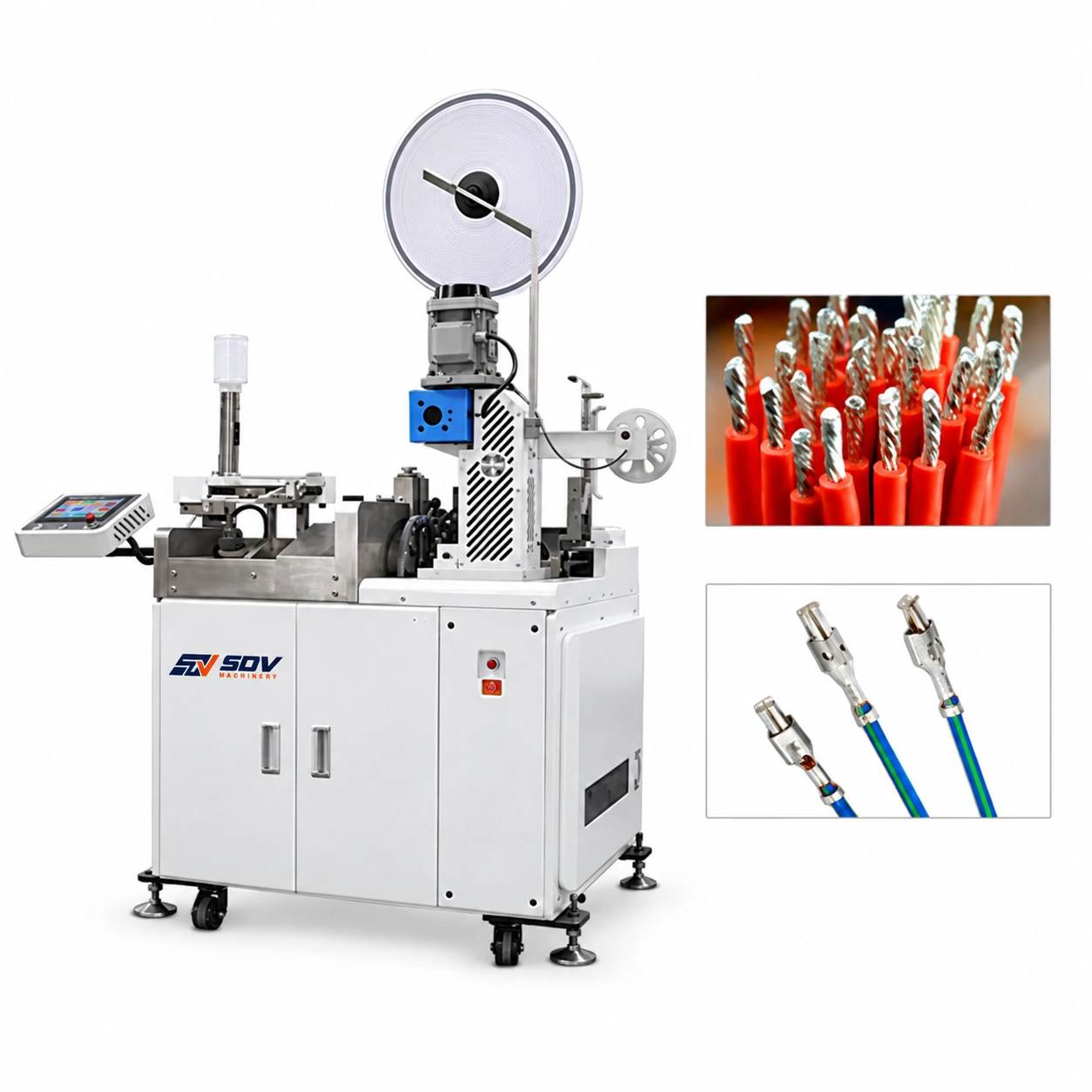

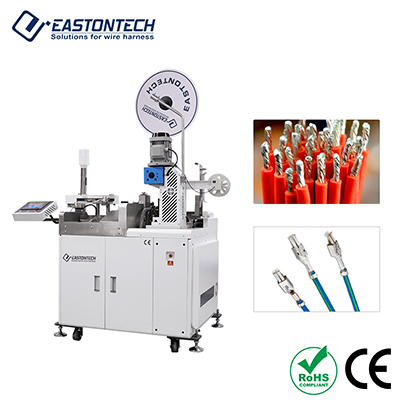

Feature
● OSHA-Compliant Contactless Safety: Features an advanced safety light curtain that creates a virtual barrier around hazardous zones. It protects operating personnel by instantly auto-stopping upon entry, ensuring maximum visibility and zero physical workflow barriers.
● Premium Inovance Servo Drive: Driven by high-stability Inovance servo motors and precision ball screws, providing ultra-precise, low-noise motion control and maximum energy savings compared to traditional mechanical clutches.
● Special Tough-Wire Processing: Equipped with high-structural-strength tool holders and specialized high-precision blades, effortlessly processing difficult insulations like Teflon, halogen-free, and high-temperature wires.
● High-Speed Multi-Process Yield: Automatically cuts, strips, twists, and executes single-end 2T crimping and dual-end 18mm changeable tin dipping, achieving a stable output of 2000 pieces/hour (L=100mm).
● Micro-to-Medium Gauge Precision: Flawlessly scales across a broad wire range from ultra-fine 32# to heavy-duty 14#. Delivers a strict cutting tolerance within ±0.1(0.1+0.003*L)mm(L=cut length).
● Lead-Screw Independent Stripping: Utilizes an independent lead-screw stripping method (front strip <15mm, rear strip <16mm), leaving a minimum mid-insulation glue length of 25mm without stripping deflection.
● Compact Floor footprint: Packs this heavy-duty 400kg industrial setup into an optimized frame (1200*1100*1580mm), requiring a placement space of just 5m².
Application Range
● Medical & Consumer Electronics: Ideal for the micro-precision processing of ultra-fine 32# to 26# Teflon wires used in medical sensors, smartphones, and high-frequency communication devices.
● Automotive Tech & EV Sub-Harnesses: High-speed production of halogen-free internal wiring loops, switch harnesses, and relay bundles requiring gas-tight 2T crimping and clean soldering.
● Appliance & Industrial Power Supplies: Prepares rugged 14# high-temperature wires for heating elements, industrial power supplies, and white goods.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
