Feature

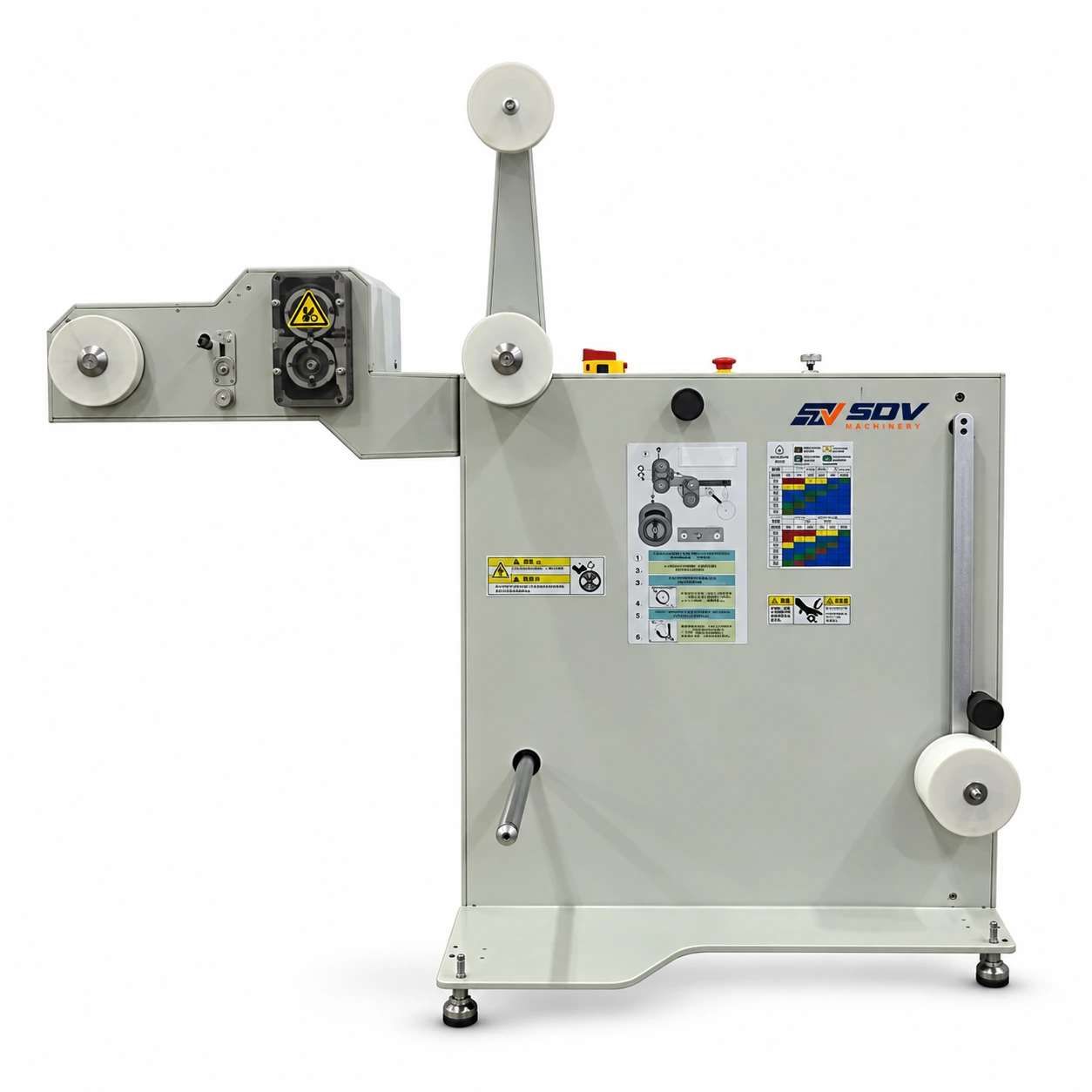

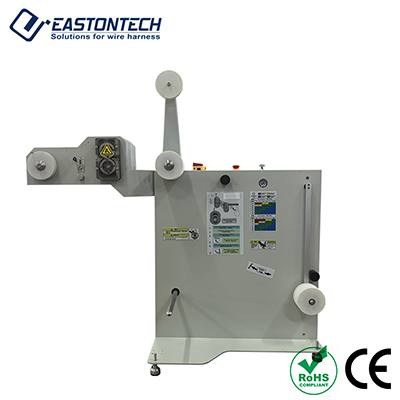

● Dual-Drive Servo Wire Feeding System: High-response dual servo drives actively synchronize wire delivery speed (up to 5 m/s) in real time with downstream cutting and crimping machinery.
● Dynamic Swing Rod Tension Control: The integrated wire storage accumulator arm maintains constant, gentle line tension, preventing snatching, wire stretching, or feeding overshoots.
● Broad Wire Gauge Range (AWG 14–30): Seamlessly handles fine signal lines to medium power conductors, making it an essential companion across versatile harness production lines.
● Compact, Space-Saving Footprint: Ergonomic 1,220 × 520 × 890 mm chassis fits easily into tight factory floor layouts without blocking operator pathways.
● Universal Cable Drum Compatibility: Supports standard wire spools with arbor holes between 20 mm and 30 mm and outer diameters up to 350 mm.
● Pedal-Free Fully Automated Operation: Automatically accelerates, decelerates, or pauses based on dynamic wire demand without requiring foot pedal inputs or manual monitoring.
Application Range
● High-Speed Wire Stripping & Cutting Lines: Active wire pre-feeding to eliminate pull resistance and maintain strict cut-length accuracy.
● Automatic Double-End Terminal Crimping Stations: Synchronized dereeling to prevent tension spikes during rapid start-stop crimping cycles.
● Automotive Wire Harness Production: Smooth feeding of 14–30 AWG single-core cables from reels into automated processing cells.
● Precision Electronics & Control Panel Assemblies: Tension-free feeding for delicate, fine-gauge conductors to avoid copper strand elongation.
