Feature

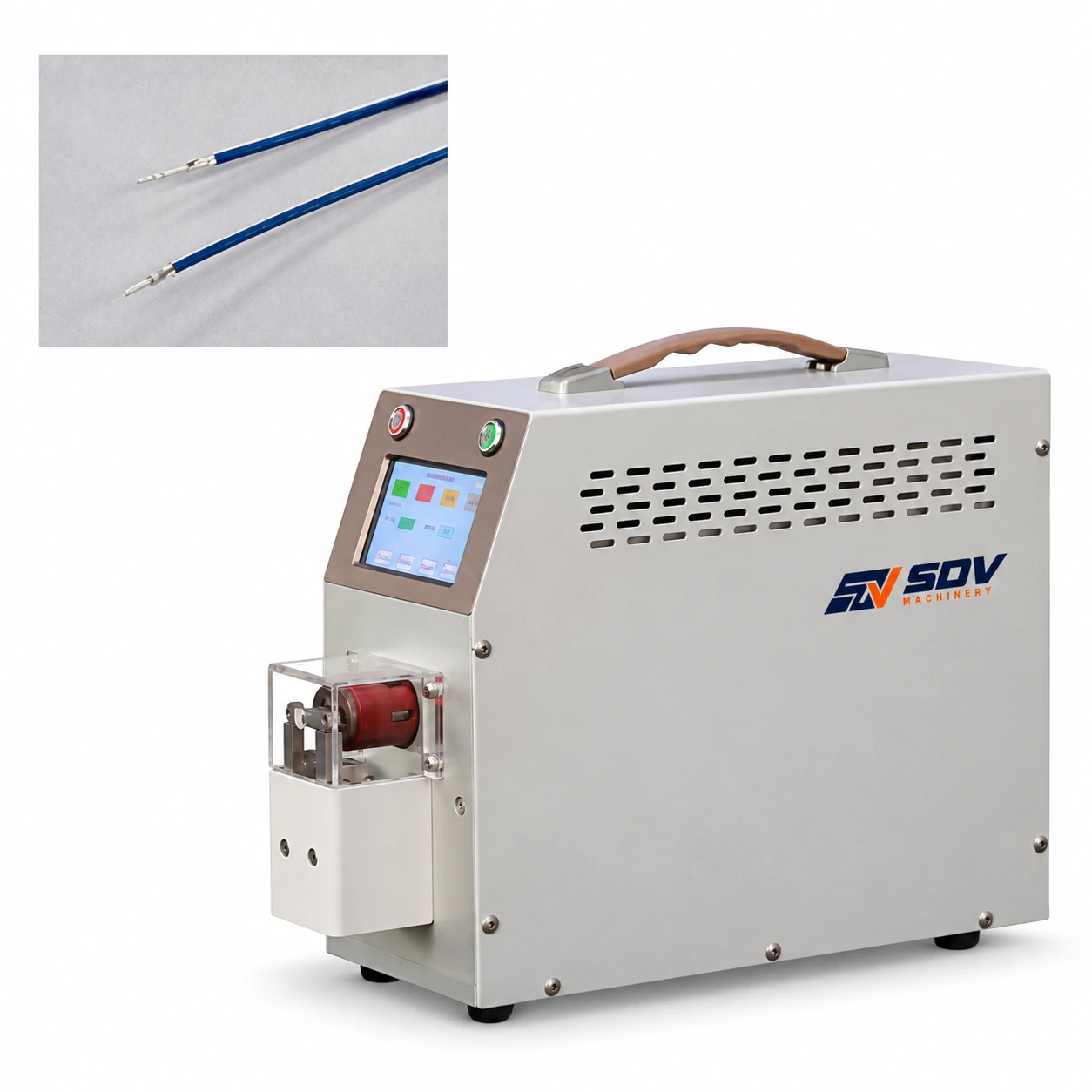

● Ultra-Fine Micro-Coaxial Range (0.4–1.6 mm OD): Specially engineered to process extremely thin, flexible coaxial cables used in high-frequency signal transmission and medical diagnostics with zero conductor damage.
● Up to 9-Layer Programmable Rotary Stripping: Performs complex multi-layer stripping (outer jacket, shield braid, dielectric insulation, inner conductor) in a single uninterrupted automatic cycle.
● 3-Blade Tungsten Steel Head with Conductor Protection: Utilizes three rotating tungsten steel blades paired with three wire protection blades to maintain perfect central alignment, extending blade lifespan and protecting central conductors.
● Motor & Ball Screw Precision Drive (0.01 mm Accuracy): Replaces pneumatic drives with a smooth motor and ball screw positioning system, delivering ultra-precise depth control down to 0.01 mm and length tolerance of ± (0.002 × L) mm.
● Automatic Waste Vacuum Absorption: Built-in suction system automatically collects stripped insulation jacket bits and shield remnants into a waste receptacle, keeping the blade head clean and preventing debris buildup.
● Touchscreen UI with 99 Memory Recipes: Store up to 99 multi-layer processing sequences on the digital touch panel for instant, tool-less recipe recall during frequent cable batch changes.
Application Range
● Medical Equipment Manufacturing: Stripping ultra-fine coaxial leads for ultrasound probes, endoscopes, catheters, and patient monitoring sensors.
● Telecommunications & RF Electronics: High-volume preparation of micro-coaxial cables for 5G antennas, router interconnects, and satellite communication hardware.
● Automotive Electronics & Autonomous Systems: Multi-layer wire stripping for camera module feeds, radar sensor lines, and high-speed data transmission harnesses.
● Aerospace & Precision Instrumentation: Processing shielded signal lines and miniature coaxial cables for avionics and precision testing devices.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
