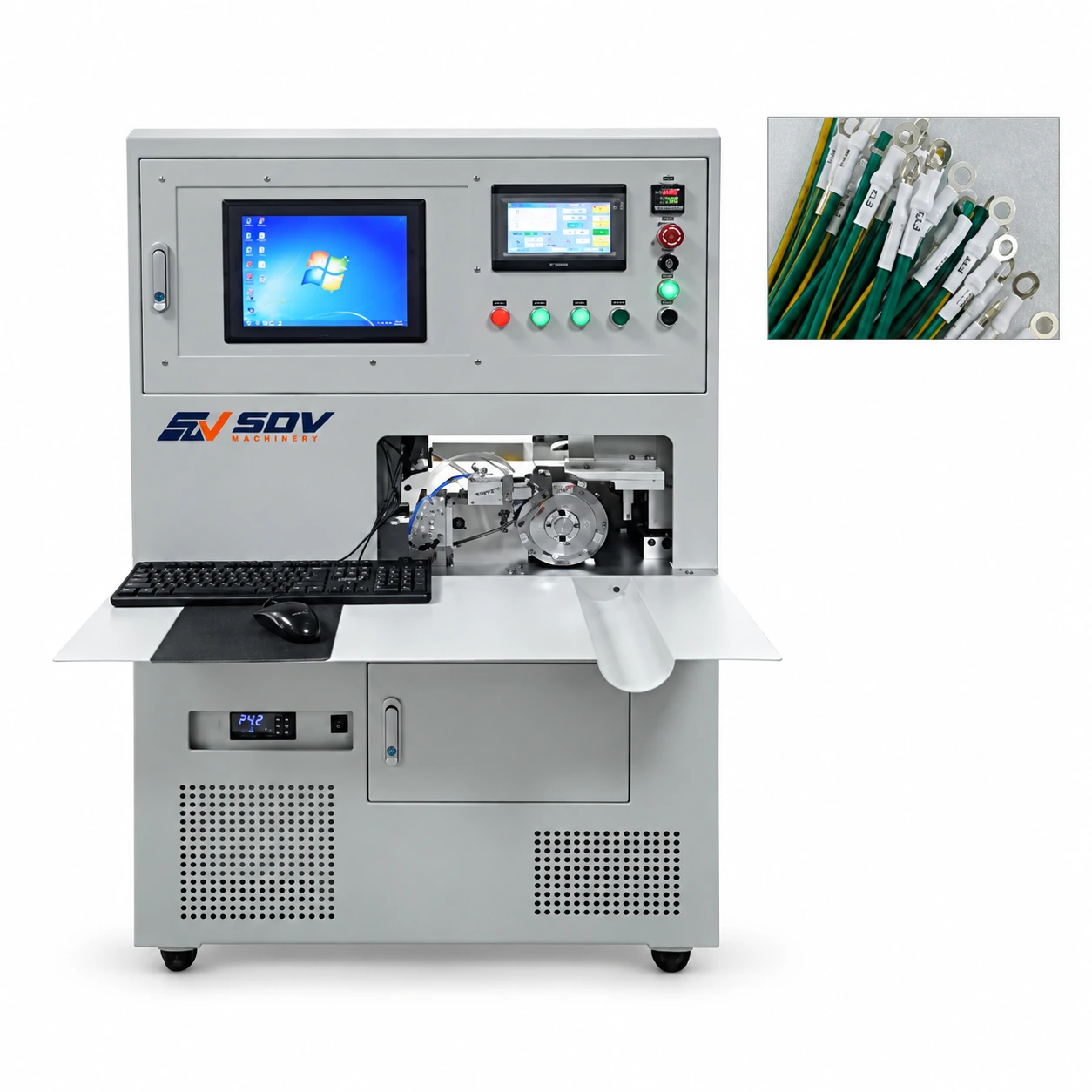

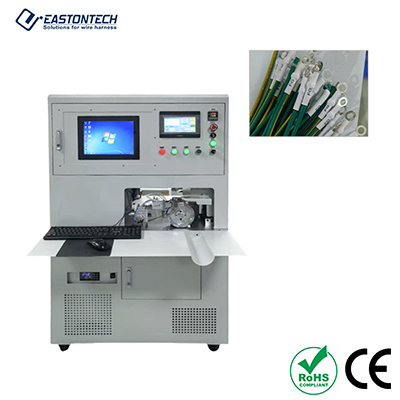

Feature
● All-in-One Automated Processing: Integrates automatic roll feeding, non-contact laser printing, precision cutting, and thermal shrinking into a single continuous workflow—eliminating manual tube handling.
● High-Speed Productivity (1,500 Pcs/Hour): High-efficiency servo drives and rapid laser scanning achieve throughput rates up to 1,500 heat shrink sleeves per hour, dramatically cutting labor overhead.
● Permanent Fiber Laser Marking: High-contrast, permanent laser printing directly on heat shrink materials eliminates solvent inks, thermal transfer ribbons, and ink-smudging quality defects.
● Precision Thermostatic Heat Chamber (0–380°C): Precise temperature control from 0°C to 380°C provides uniform 360° heat application without burning or blistering delicate wire insulation.
● High-Accuracy Feed & Cut Logic: Delivers positioning accuracy within ±0.2 mm and cutting length accuracy within ±0.3 mm for clean, burr-free tube edges.
● PLC Touchscreen Interface & Pedal Control: Features a user-friendly PLC touchscreen for rapid program selection and parameter storage, backed by an ergonomic foot pedal for manual positioning when required.
Application Range
● Automotive Wire Harness Manufacturing: High-speed inline laser marking and heat shrinking for ABS leads, sensor cable bundles, and engine compartment wiring.
● Aerospace & Defense Cable Assembly: Permanent laser marking on polyolefin and fluoropolymer shrink tubing compliant with military wire identification standards.
● Industrial Automation & Control Panels: Clear, non-fading terminal sleeve identification for PLC cabinet wiring, relay harnesses, and terminal blocks.
● Telecommunications & Fiber Optic Assemblies: Clean, precise sleeve shrinking and marking for telecom jumpers and network patch cables.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
