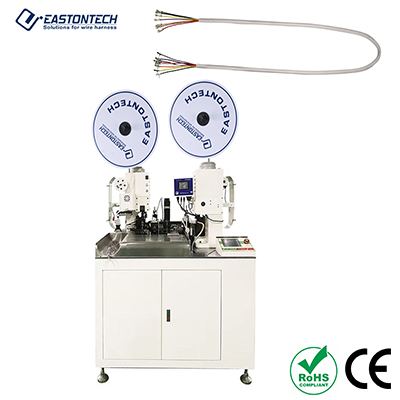

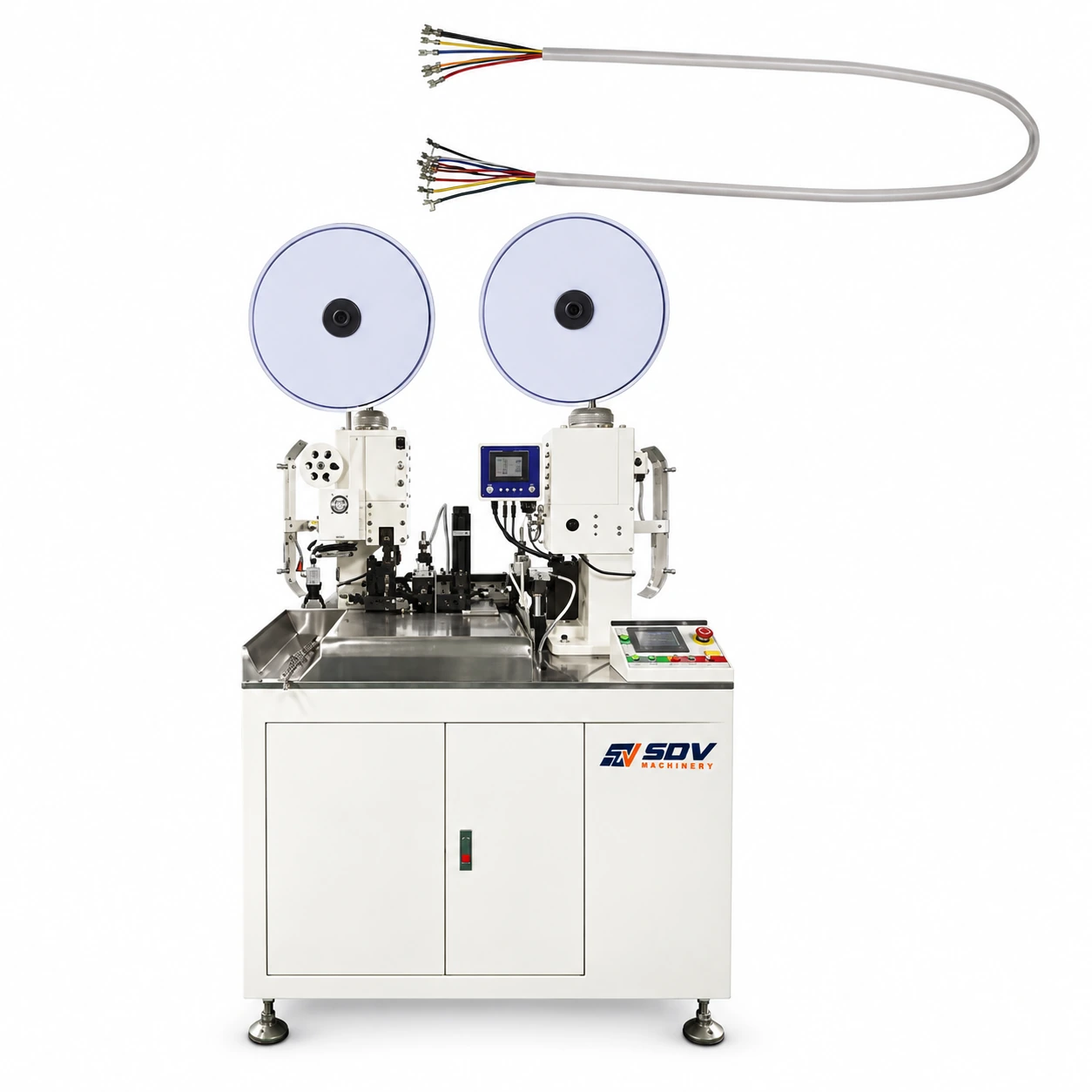

Feature
● Mature and stable, with a high market share, Gree Midea's system has been verified for many years.
● It can process multi-core sheathed wires with 2-13 cores, with an efficiency of up to 1100pcs/h.
● Standard pressure management device to protect the blade and strictly control quality.
● Independent wire splitting device, compatible with various 0TP molds, no special molds required.
● Pressure-adjustable wire splitting clamp to protect the inner skin from damage.
● The crimped terminals can be arranged in the same straight line (not fan-shaped), and the terminals are neat and beautiful after being inserted into the plastic shell.
● The servo motor is equipped with a screw drive, and the motion system has high precision.
● The terminal machine is integrated with cast iron, which is sturdy and durable, and the crimping is stable.
● The touch screen adjusts the knife value, without the need for a knife pad.
● The equipment formula is stored with one click and quickly called.
● The CNC interface is simple, easy to learn and use.
● Safety protection cover, wire transmission and collection belt, MES system and other components can be added.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
