Feature

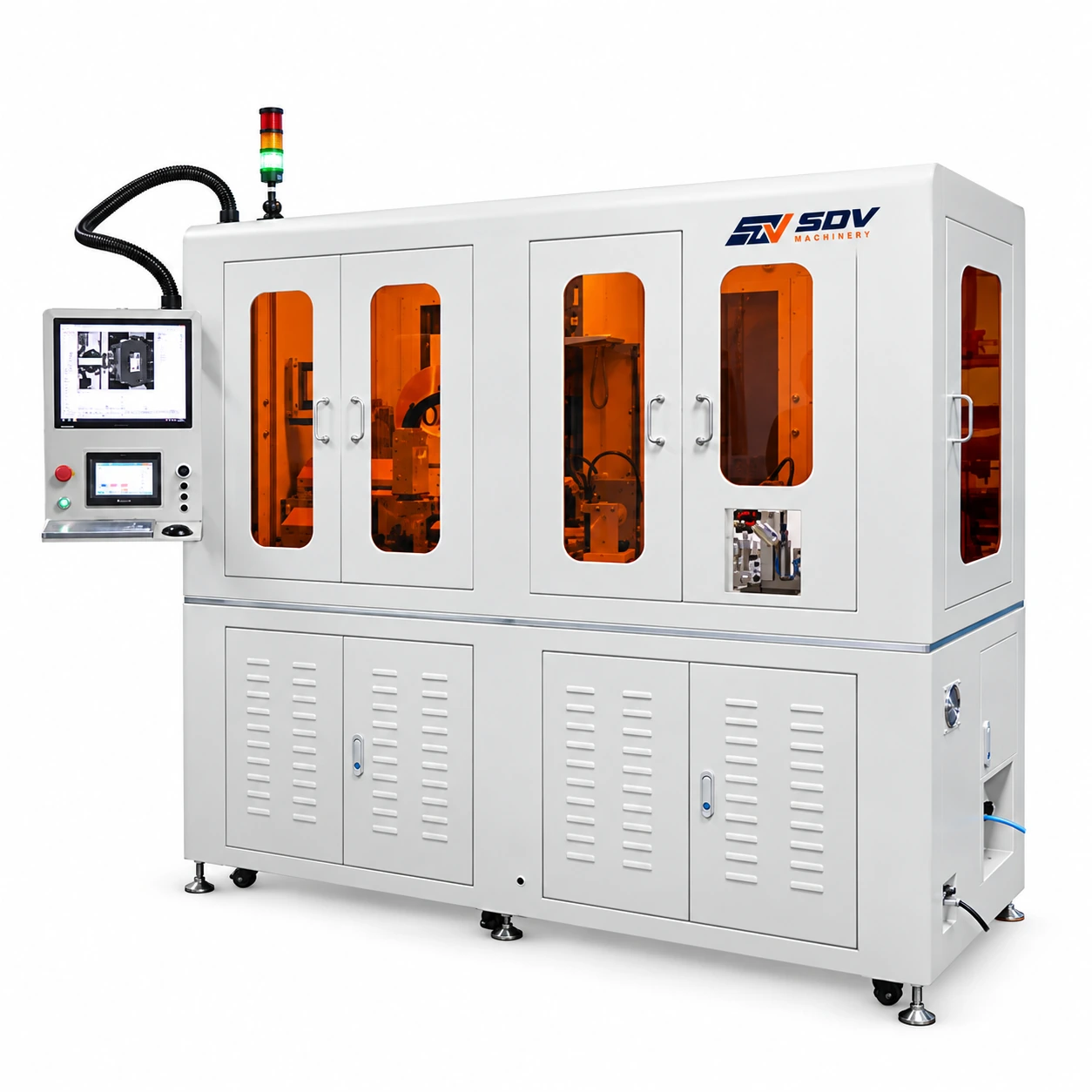

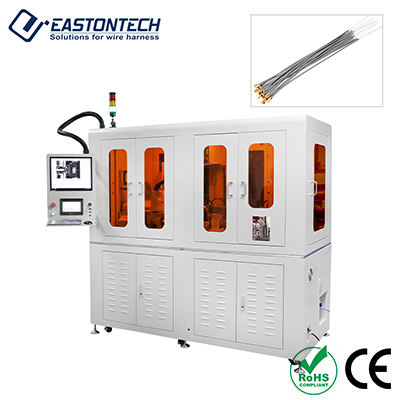

● EPSON 4-Axis SCARA Robot & Original EPSON Vision Suite: High-speed, micron-level robotic transfer coupled with advanced optical alignment ensures pinpoint crimping and soldering accuracy cycle after cycle.
● IPEX Gen 1–5 Micro-RF Connector Compatibility: Designed to crimp micro-RF terminals (IPEX Gen 1, Gen 2, Gen 3, Gen 4, Gen 5, and equivalent major brands) on cables from 0.64 to 1.78 mm OD.
● Upgraded Straight-Line Design: Compact, linear floor layout optimizes workshop footprint while maximizing material flow speed, stability, and operational efficiency.
● 100% Inline Electrical & Vision Quality Control: Integrates high-voltage short-circuit testing, open/continuity checks, dimensional inspection, and position verification to guarantee an audit-compliant yield of ≥ 99.7%.
Application Range
● 5G & Wi-Fi Antenna Harness Manufacturing: Automated mass production of IPEX MHF micro-RF jumper cables for wireless modules.
● Smartphones, Tablets & Laptops: Ultra-fine coaxial signal feeds connecting internal antennas to main logic boards.
● Automotive Telematics & GPS Modules: Precision assembly of shielded high-frequency coaxial leads for smart cockpits and autonomous sensors.
● Medical Diagnostic & Aerospace Electronics: Multi-layer micro-coax termination requiring zero short circuits and strict dimensional tolerances.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
