Feature

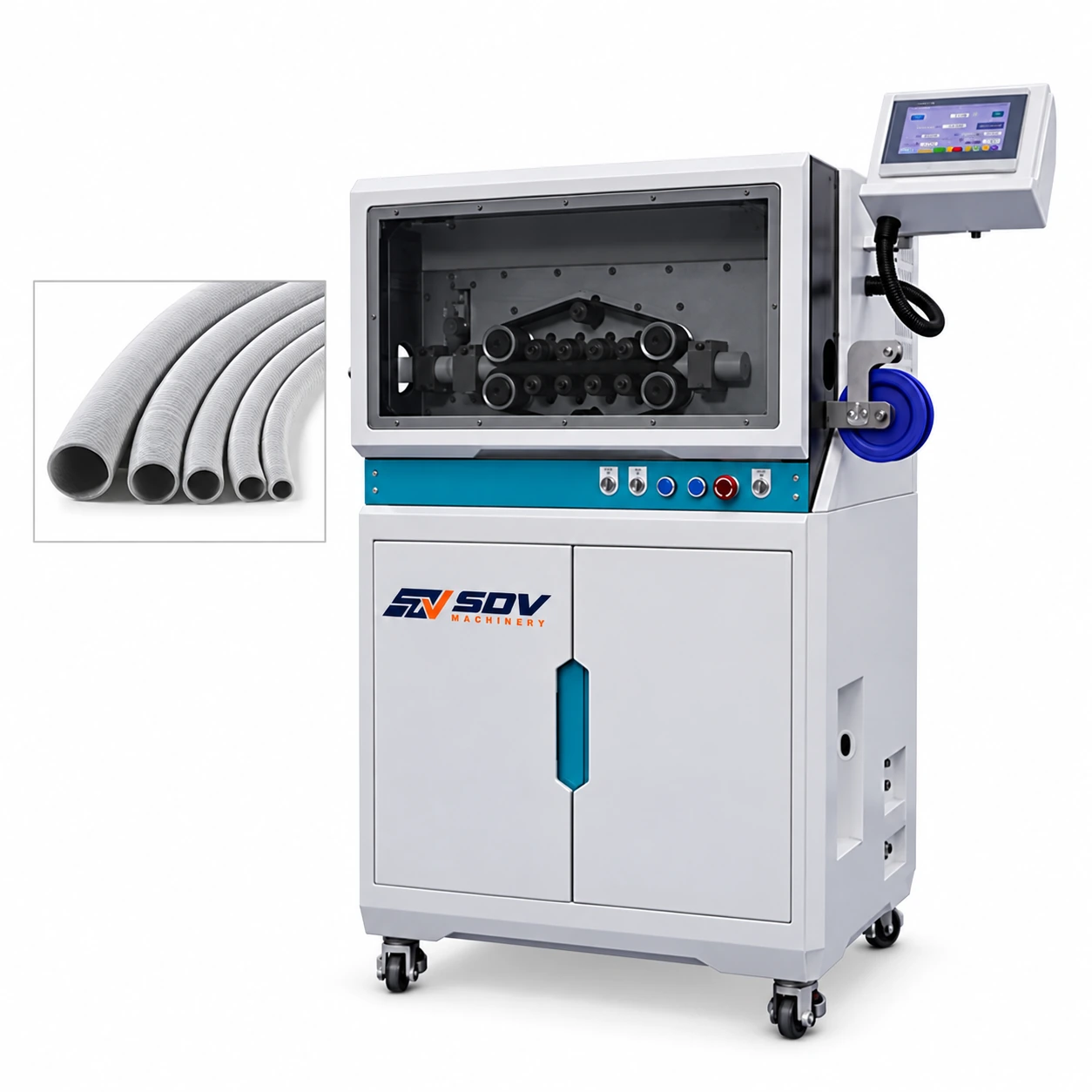

● 14-Wheel Scratch-Free Belt Drive: Utilizes a broad 14-wheel belt conveyor mechanism that holds both soft elastomeric hoses and rigid plastic pipes securely. Distributes pulling force evenly to guarantee zero surface indentations, pinching, or jacket scratches.
● Servo + Precision Grinding Screw Cutter: The heavy-duty blade holder is driven by a high-torque servo motor coupled with a precision-ground lead screw. This combination exerts high shearing force to cut through thick-walled hoses cleanly and square every cycle.
● 100% Electric Operation (No Air Line Needed): Operates entirely on electric power—eliminating pneumatic cylinders, air compressors, and pneumatic maintenance. Easy plug-and-play setup anywhere on the production floor.
● High-Output Capacity (4,000 pcs/h): Reaches cutting speeds up to 4,000 pieces per hour (for 100 mm cut lengths on 10 mm OD tubing), maintaining tight length tolerances strictly within ±(0.003 × L) across lengths from 1 mm to nearly 1,000 meters.
● Digital Pressure Roller Height Adjustment: Features digital height control on the 7-inch touch-screen interface, allowing operators to fine-tune belt clamping pressure electronically for rapid, repeatable job changeovers.
● Modular Architecture & MES / IoT Ready: Built with an open modular control system. Easily expands with optional MES/IoT network integration, inline fixed-point inkjet printing devices, and peripheral equipment alarm monitoring.
Application Range
● Automotive Hose & Fluid Lines: Precision fixed-length cutting of low-pressure fuel/oil lines, engine breather hoses, and vacuum lines.
● Pneumatic & Automation Tubing: High-speed processing of polyurethane (PU), polyamide (PA), and polyethylene (PE) air lines for industrial machinery.
● Electrical Wire Harness Protection: Fast slicing of heat-shrinkable sleeves, PVC conduits, and protective corrugated sleeves.
● Medical & General Industrial Plastics: Mark-free cutting of soft silicone tubing, fluid transfer pipes, and plastic extrusions requiring pristine surface quality.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
