Feature

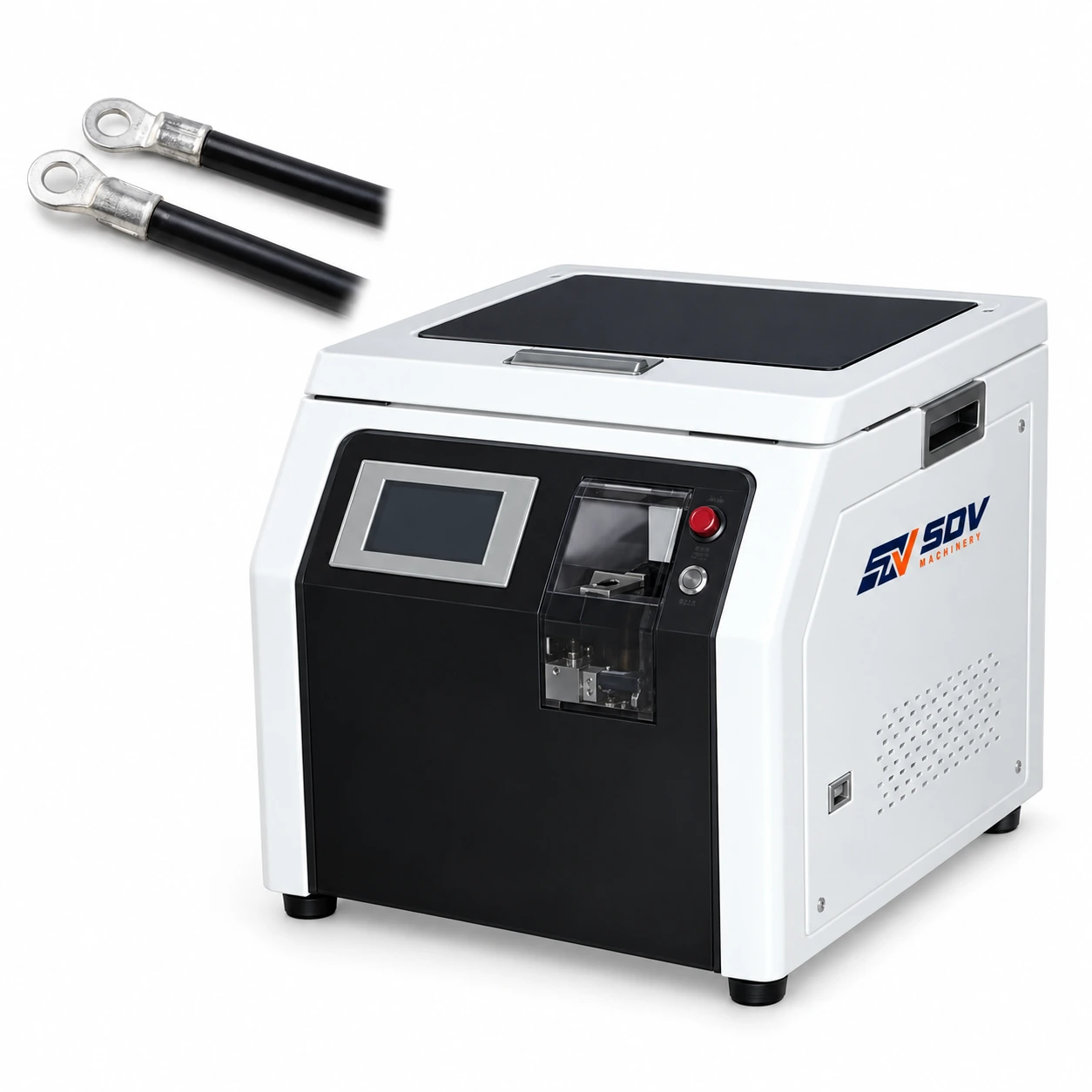

● 4.0KW High-Torque Servo Drive: Driven by a premium servo motor and precision ball screw system. Delivers massive, stable power (4.0KW) to flawless crimp heavy-duty ring terminals with a maximum crimping length of 12mm.
● Multi-Layer Shielded Wire Expertise: Engineered to process both high/low voltage wires and tough multi-layer shielded wires, spanning a versatile wire size range from 0.5 to 6 mm².
● Tungsten Steel Blade Precision: Equipped with ultra-hard tungsten steel blades that hold their edge. Achieves clean insulation removal (outer sheath stripping ≥40mm, core wire stripping 6-18mm) with absolute zero conductor nicks.
● High-Volume Benchtop Efficiency: Reaches a stable production capacity of 1000-1300 pcs./h within an ultra-compact footprint of just L550xW500xH420mm and a net weight of 98KGS.
● Universal Global Power: Fully compatible with international factory grids, featuring automated dual-voltage switching for AC110V/AC220V (50 - 60 Hz).
Application Range
● EV Powertrains & Grounding Loops: The go-to machine for terminating O-ring ground terminals onto 0.5 - 6 mm² multi-layer shielded cables used in electric vehicle (EV) battery packs and inverter modules.
● Solar & Renewable Energy Grids: Mass production of high-voltage wiring harnesses, solar junction box connections, and wind turbine control loops.
● Industrial Power Distribution: Prepares ultra-secure, gas-tight ring lug terminations for industrial PLCs, control cabinets, and heavy-duty switchgears.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
