Feature

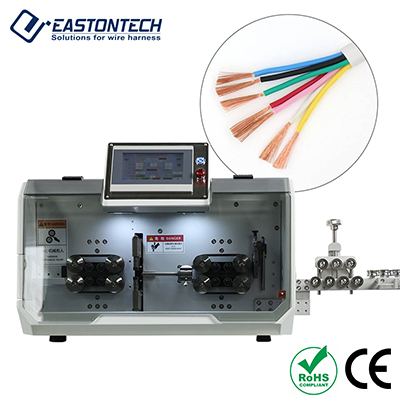

● The EW-05G-2 is a versatile cut and strip machine for multi-core cables (max. 10 cores) and multi-stranded single wire up to 50 mm square.
● Powered by hybrid servo motor, the productivity is maximized to 900 pcs./h (400 pcs./h multi-core cable).
● Uni-V jacket stripping blades (optional radius blades for special jacket material).
● Uni-flat core wire blades for max. 11 core wires (optional teeth blades for rubber insulation).
● Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.
● The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
● Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
