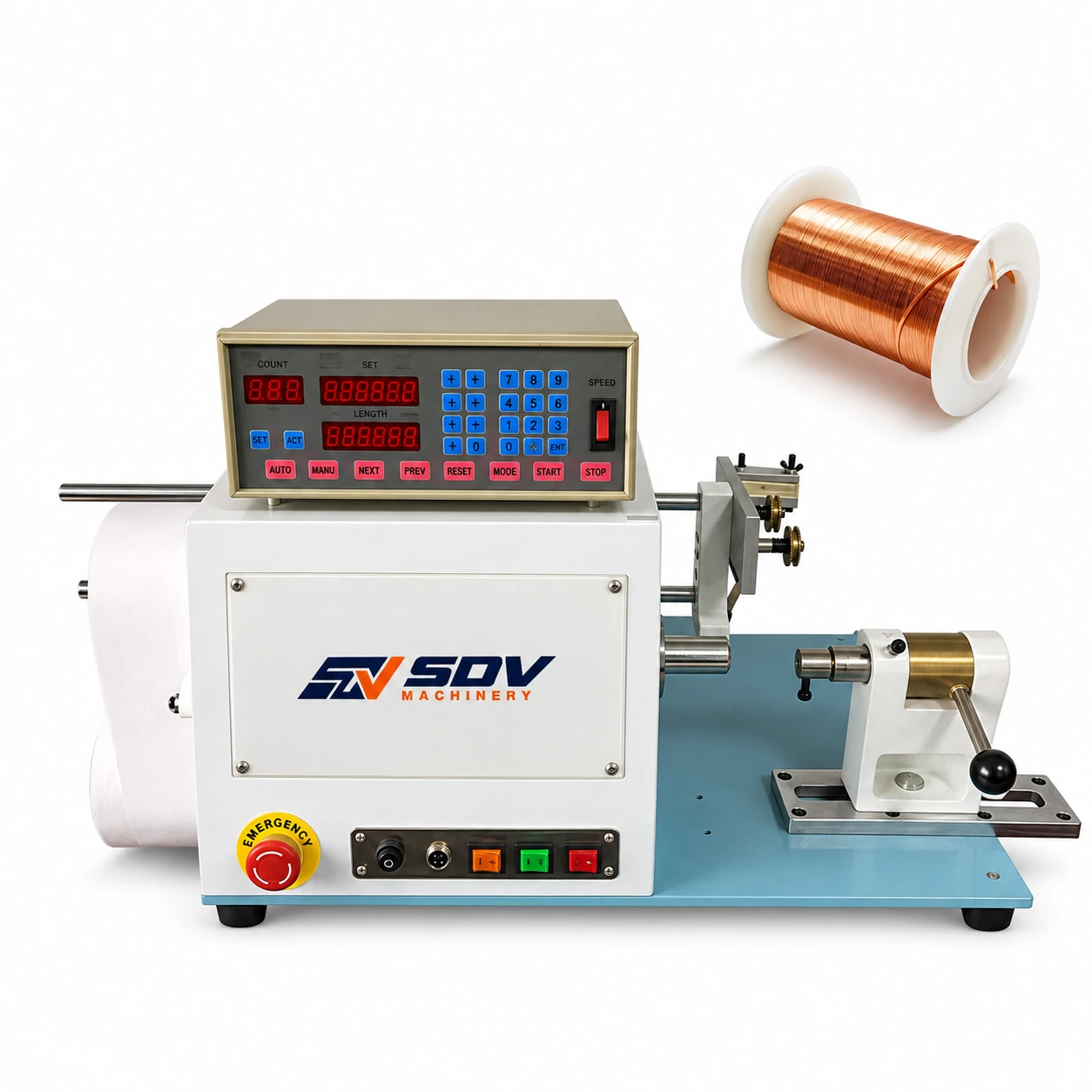

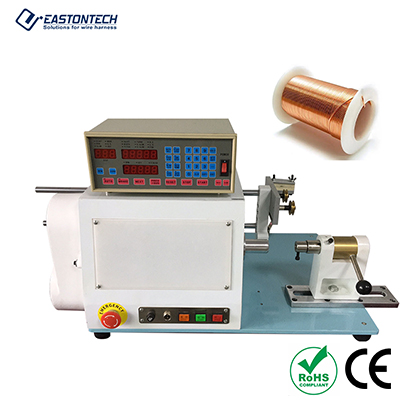

Feature
● Wide Wire Diameter Compatibility (0.1–3.0 mm): Handles fine magnet wire up to heavy-gauge copper winding wire without insulation scratching or wire tension deformation.
● Micro-Stepping Pitch Control (0.001–9.999 mm Pitch): Precision stepper-driven traverse motor ensures micro-fine pitch control for gapless, non-overlapping wire distribution across every winding layer.
● High-Speed 2,000 rpm DC Main Drive: High-torque 500W DC motor delivers smooth, vibration-free acceleration and steady winding torque up to 2,000 rpm for maximum production throughput.
● 999 Multi-Step Program Storage & 9,999 Turn Capacity: Stores up to 999 custom multi-layer winding parameters in memory, enabling fast recall for complex multi-tap transformers and multi-section spools.
● Generous Winding Envelope (200 mm Max Diameter & Width): Rigid mechanical structure supports large coil spools and traverse widths up to 200 mm.
● Heavy-Duty 120 kg Frame & Protective Guarding: Low-vibration 120 kg chassis equipped with protective safety shielding maintains high-speed winding stability and extends machine service life.
Application Range
● Power & Switching Transformer Production: Precision multi-layer winding for step-up/step-down power transformers, high-frequency SMPS transformers, and isolation units.
● Inductor & Solenoid Coil Manufacturing: High-density copper spooling for industrial solenoids, heavy-duty choke coils, and power filter inductors.
● Relays & Electrical Contactors: Repeatable multi-turn winding for automotive relays, industrial contactors, and switchgear activation coils.
● Custom Magnetics & R&D Laboratories: Quick program selection and rapid parameter setup for custom inductor prototyping and small-to-medium batch manufacturing.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
