Feature

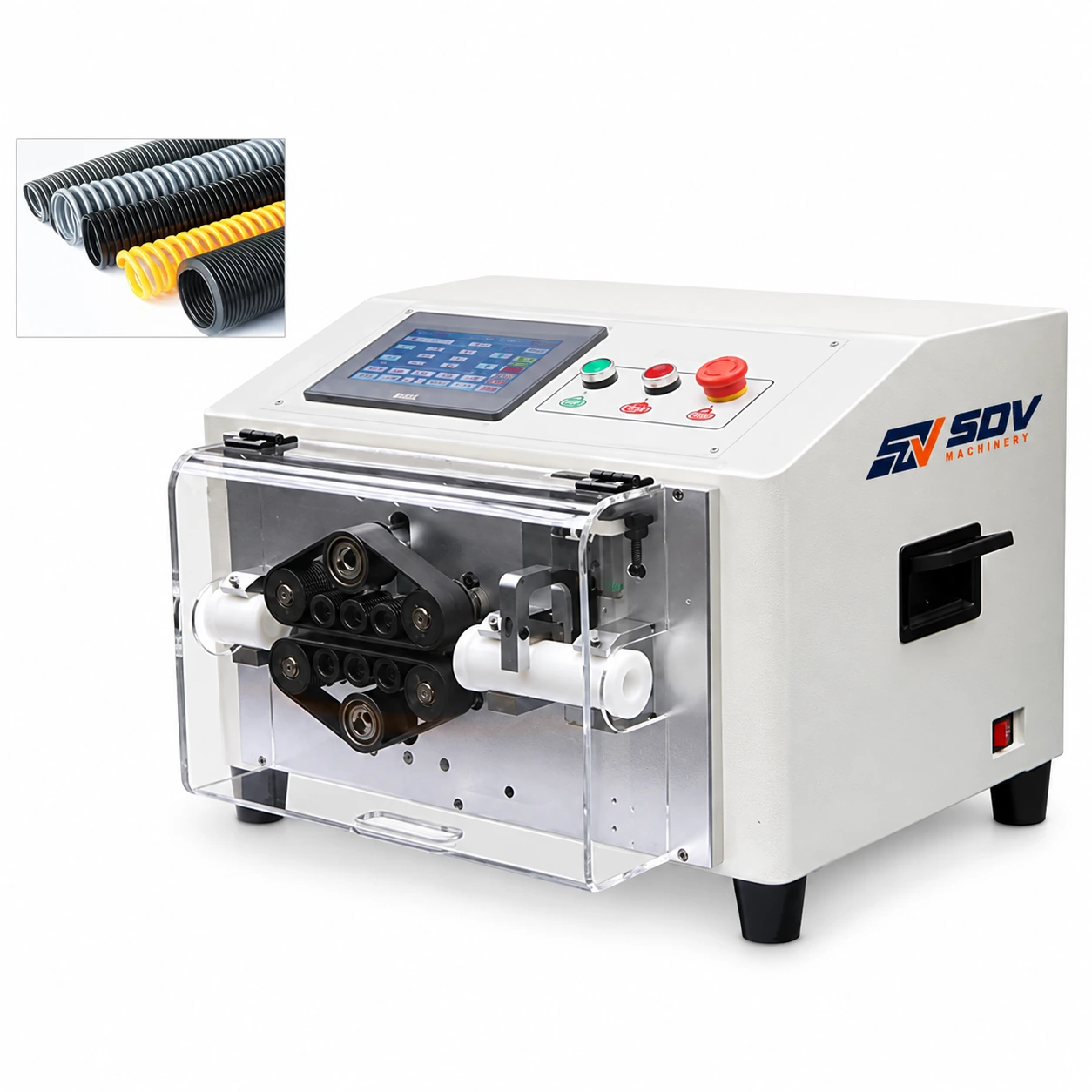

● High-Speed Belt Feed System (6,000 pcs/h): Motor-driven belt feed distributes clamping pressure evenly over a broad surface area, preventing outer surface indentations or tube collapse on corrugated conduits and hollow pipes.
● 100% Fully Electric Operation (No Air Needed): Plug-and-play setup running solely on AC 220V power—eliminates compressed air overhead, reduces noise, and lowers energy consumption.
● High Cutting Precision (±0.1 mm Tolerance): Delivers precise, repeatable cuts for tube lengths ranging from 5 mm to 9,999 mm (for non-elastic materials).
● 100 Programmable Job Recipes: Microcomputer controller stores up to 100 distinct cutting profiles for instant job switching and minimal changeover downtime.
● Quick-Change Tube Guide System: Simple mechanical architecture allows operators to rapidly swap guide tubes for different material diameters up to 30 mm OD.
● Broad Material Compatibility: Effortlessly processes hard hollow plastic tubes, corrugated conduits, flexible sheaths, and heavy round electrical cables.
Application Range
● Automotive Wire Harness Protection: High-speed cutting of corrugated conduits and protective split tubing up to 30 mm OD.
● HVAC & Industrial Fluid Lines: Precision cutting for hard hollow plastic pipes, PVC hoses, and liquid transfer tubes.
● Electrical & Power Cable Assembly: High-capacity, scratch-free cutting for heavy round power cables and multi-core leads.
● Medical & Appliance Tubing: Indentation-free tube cutting for delicate polymer conduits requiring pristine outer surface quality.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
