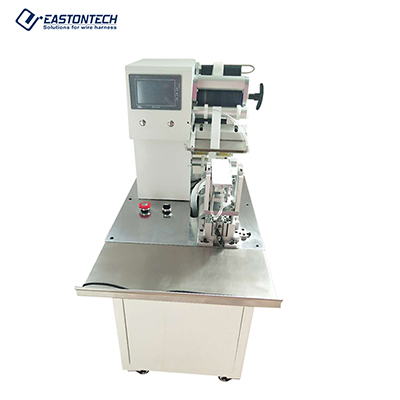

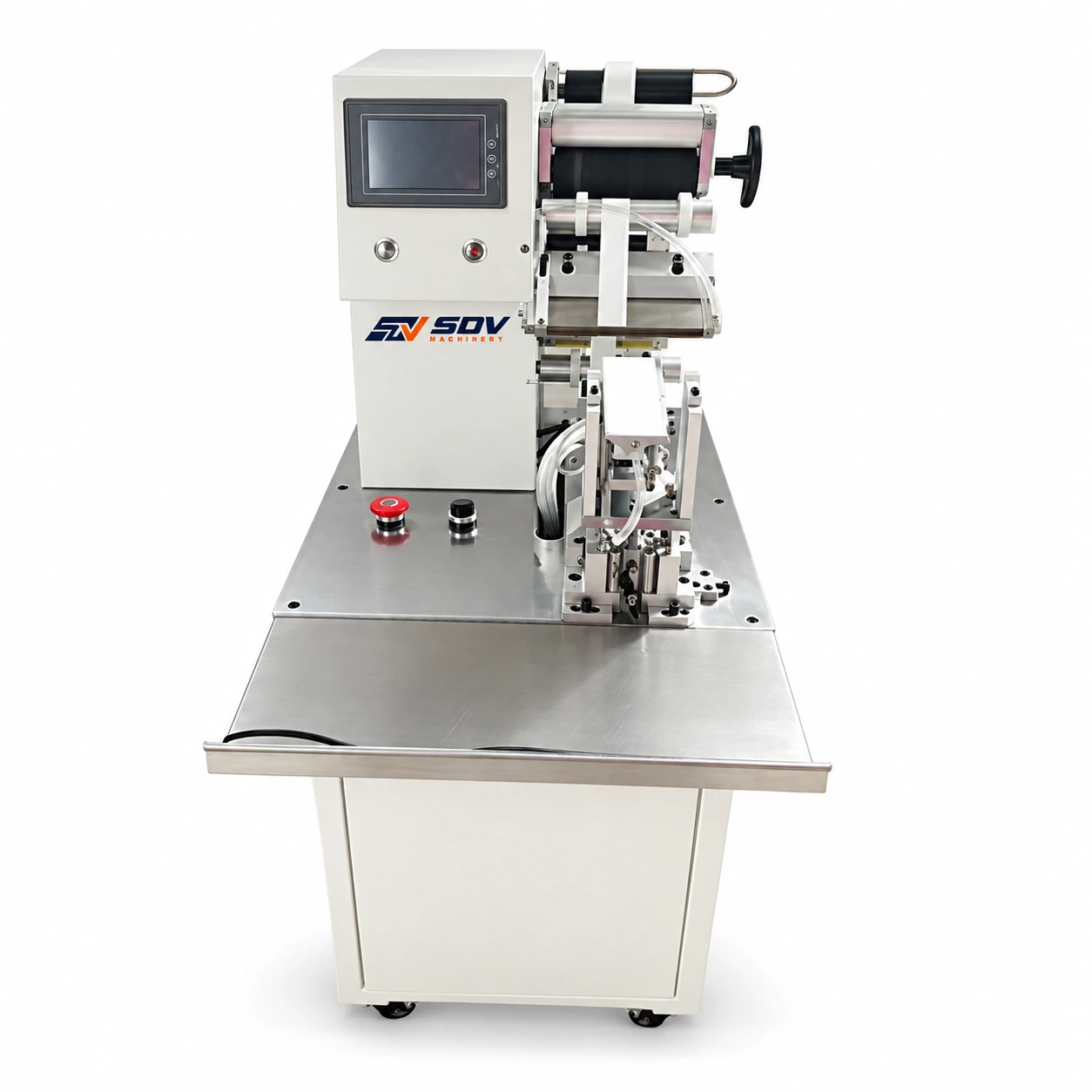

Feature
● Tool-Free Touchscreen Parameter Adjustment: Input label dimensions and cable diameter directly into the digital controller—no manual screw twisting or mechanical trial-and-error required during changeovers.
● High-Precision Servo Positioning & German SICK Sensor: Integrated German SICK photo-electric sensor detects label gaps instantaneously, pairing with servo motor control to ensure tight ±0.2 mm flag alignment.
● Rapid Output Rate (800 – 2,000 pcs/h): Dramatically reduces manual labor costs while delivering clean, smooth, and bubble-free flag folds at high production speeds.
● Universal Wire & Pipe Compatibility: Standard configurations cover round and flat cables with outer diameters from 0–3.5 mm, 3.0–5.5 mm, to 4.0–10 mm (with custom tooling options beyond 10 mm).
● Broad Label & Material Support: Handles self-adhesive paper, film labels, electronic supervision codes, barcodes, and serial numbers with label lengths from 20 to 160 mm and widths from 5 to 45 mm.
● Ergonomic Foot-Pedal Control & Compact Footprint: Includes a 200 mm positioning ruler for consistent placement, easy material roll replacement, and intuitive foot switch actuation for hands-free operator feeding.
Application Range
● Electronics & Peripheral Assemblies: High-precision flag labeling for earphone wires, USB cables, Type-C cables, and computer peripheral wiring.
● Electrical Appliances & Power Cords: Safety warning, rating plate, and serial barcode flag labeling on AC/DC power cords and appliance harnesses.
● Telecommunications & Optical Fiber: Traceability flag labeling for patch cords, optical fiber jumpers, and network cables.
● Pneumatic & Industrial Piping: Folded flag identification for air hoses, tracheal tubes, and industrial water pipes.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
