Feature

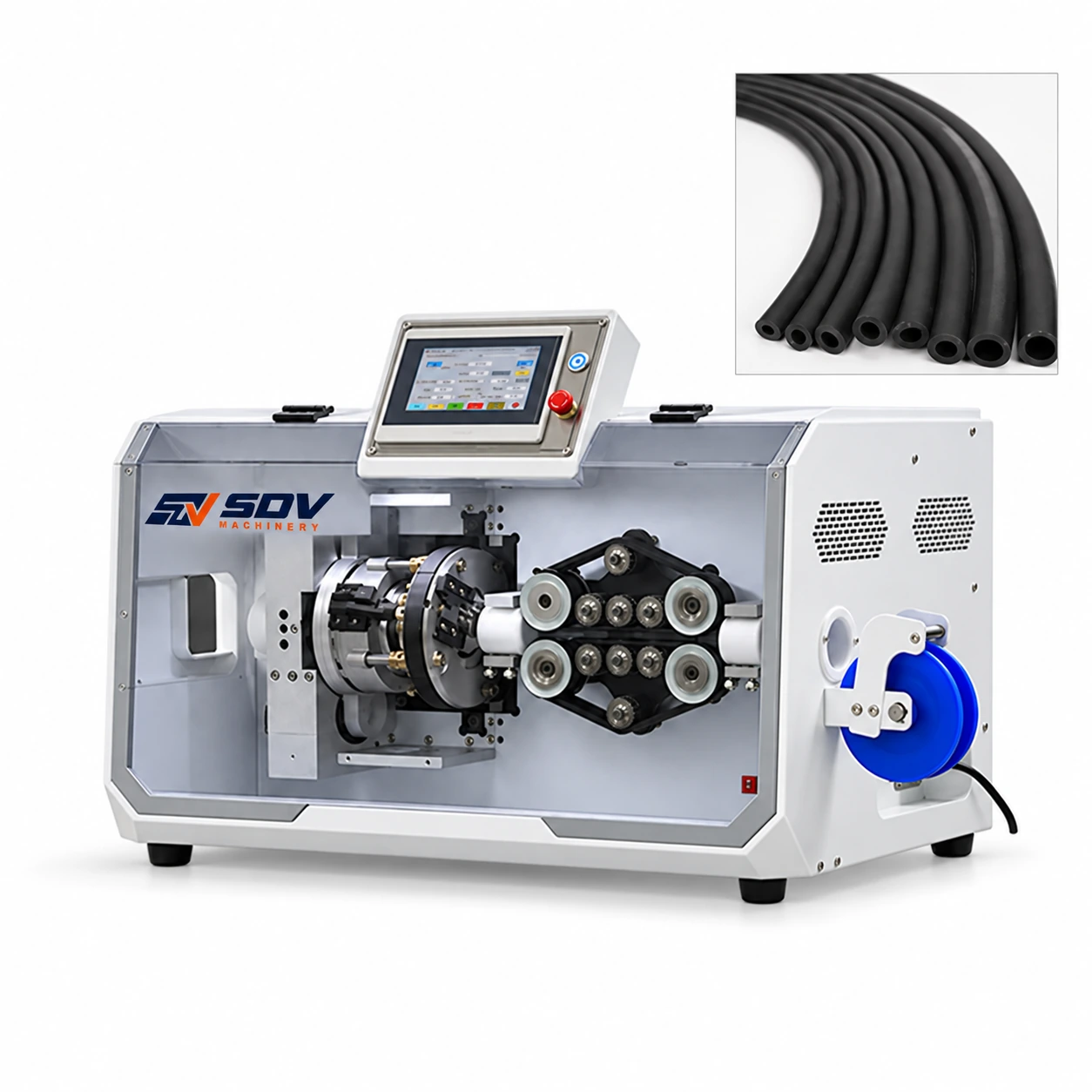

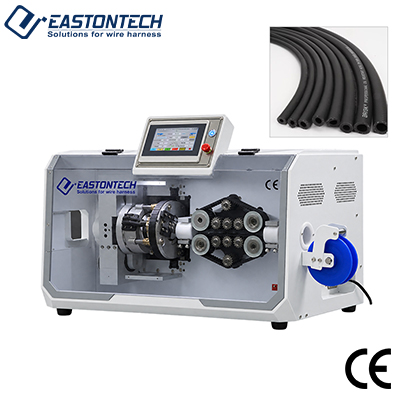

● Crush-Free Circumferential Rotary Cutting: The cutter rotates smoothly around the pipe's outer circumference while a servo-driven ball screw mechanism feeds the blade inward. This action prevents crushing or flattening on hollow paper cores, honeycomb structures, and rigid PVC pipes.
● 100% Full-Electric Operation (Zero Air Required): Operates entirely on electric power—eliminating pneumatic cylinders, air compressors, and pneumatic maintenance. Lower operating noise, reduced energy consumption, and easy plug-and-play installation anywhere on the shop floor.
● Dual Servo Precision Drive: Combines a high-torque rotary servo motor with a 400W cutter motor and a precision ball screw blade feed. Maintains strict cutting length tolerances within L × 0.005 (L = target length).
● Scratch-Free Belt Conveyor Feed: High-traction belt conveyor feeds tubes continuously without leaving grip marks, scratches, or indents on soft or polished pipe surfaces.
● Smart Touch Screen HMI & MES Ready: Programmed via an intuitive 7-inch color touch-screen HMI powered by an industrial motion control board. Supports optional MES/IoT smart factory integration, fixed-point coding, and peripheral alarm expansion.
Application Range
● Packaging & Protective Shipping Tubing: High-speed, crush-free cutting of honeycomb paper pipes, edge-protection tubes, and paper packaging cores.
● Plastic Pipe & Conduit Processing: Clean, burr-free fixed-length cutting of rigid PVC pipes, ABS conduit, and structural plastic tubing.
● Industrial Paper Core Manufacturing: Precision slicing of heavy-duty paper cores, yarn spools, and cardboard winding tubes.
● Medical & Industrial Sleeve Assembly: Fixed-length processing of smooth plastic sleeves requiring scratch-free outer surfaces and clean edge profiles.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
