Feature

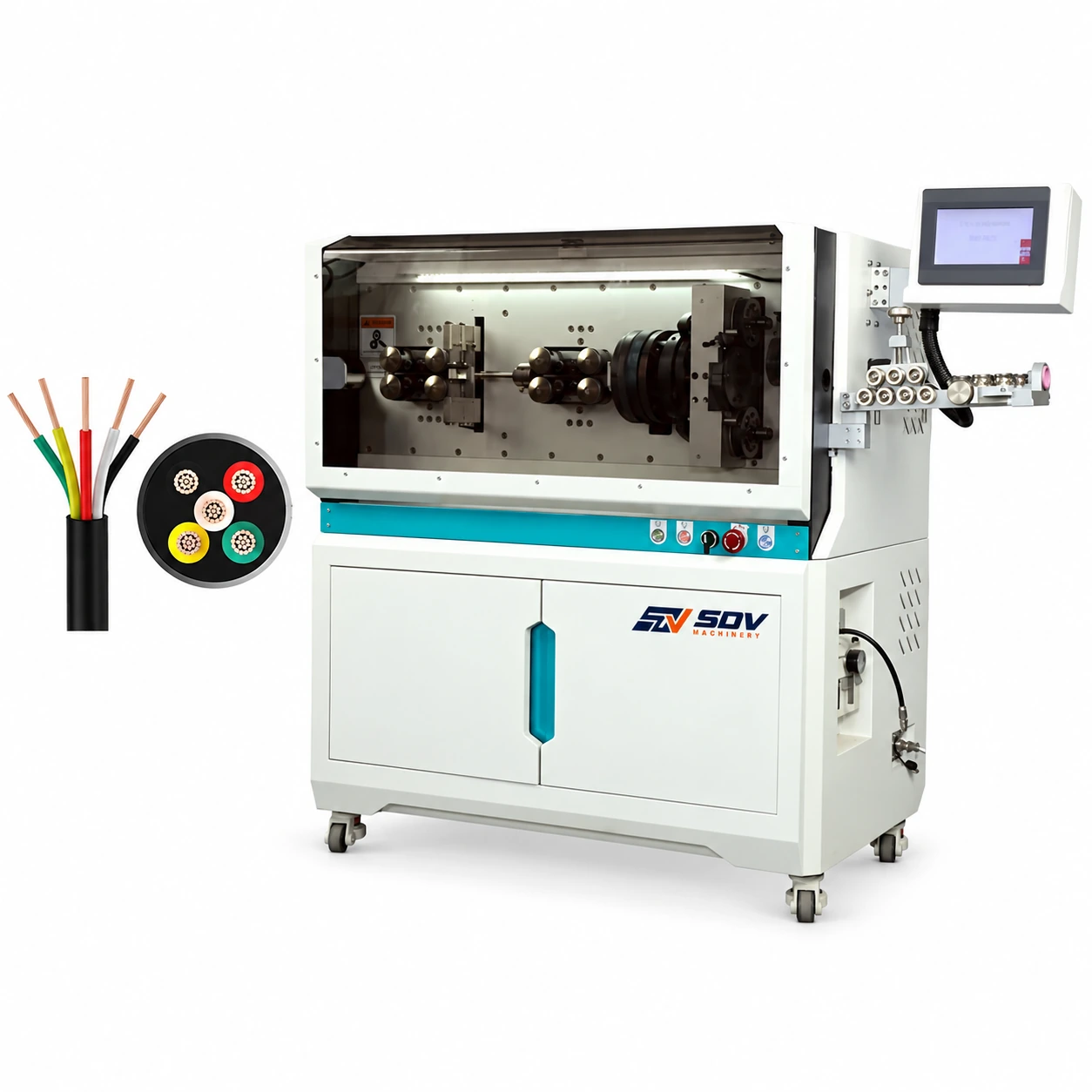

● 360° Rotary Scoring Blade Mechanism: Scores cleanly around circular cable jackets for a perfectly square 360-degree cut. Ideal for tough rubber, PUR, or Teflon sheaths where standard V-blades crush or deform the insulation.
● Zero Shield & Inner Core Damage: Rotary blade depth and blade rotation speed are digitally controlled to cut precisely through the outer sheath only—preserving internal braid shielding, aluminum foil, and individual wire insulation intact.
● 16-Roller Belt Drive with Pressure Stripping: Heavy-duty belt feed mechanism distributes clamping force over a wide contact surface, providing high pulling torque for heavy cables while guaranteeing zero roller surface scratches.
● Touchscreen Digital Roller Gap Adjustment: Eliminates manual mechanical handwheels. Roller clearance and clamping pressure are set directly on the 7-inch color PLC touchscreen for fast, repeatable program recall.
● Extended Half-Strip Lengths (Up to 1500 mm): Capable of full jacket stripping up to 200 mm and half-stripping up to 1,500 mm on Side I, making it ideal for long break-out lengths in control cabinets and power distribution boxes.
● Modular Automation Upgrades: Expandable with optional pre-feeders, middle-strip (window strip) modules, wire twisters, motorized coilers, conveyor stackers, inline inkjet printers, and Industrial Control Systems (ICS).
Application Range
● Shielded Automotive & EV Cables: Precision rotary scoring of outer sheaths on shielded EV high-voltage cables and sensor leads without disturbing delicate braid wires.
● Industrial Automation & Robotics Cabling: Processing tough PUR, PVC, and Neoprene jacketed multi-core flex cables for drag chains and control panels.
● Medical & Military Wire Assemblies: Clean 360° perimeter cuts on high-spec insulated leads where insulation burs or uneven cuts are unacceptable.
● Power Distribution Harnesses: Long-length jacket stripping (up to 1,500 mm) for industrial switchgear, motor leads, and power supplies up to 30 mm².
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
