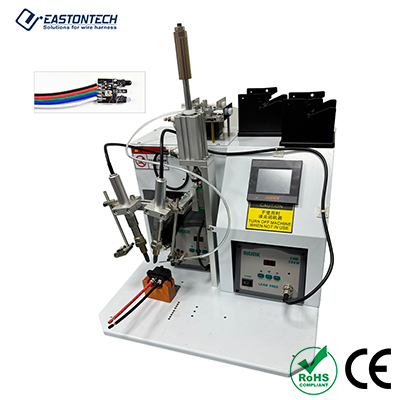

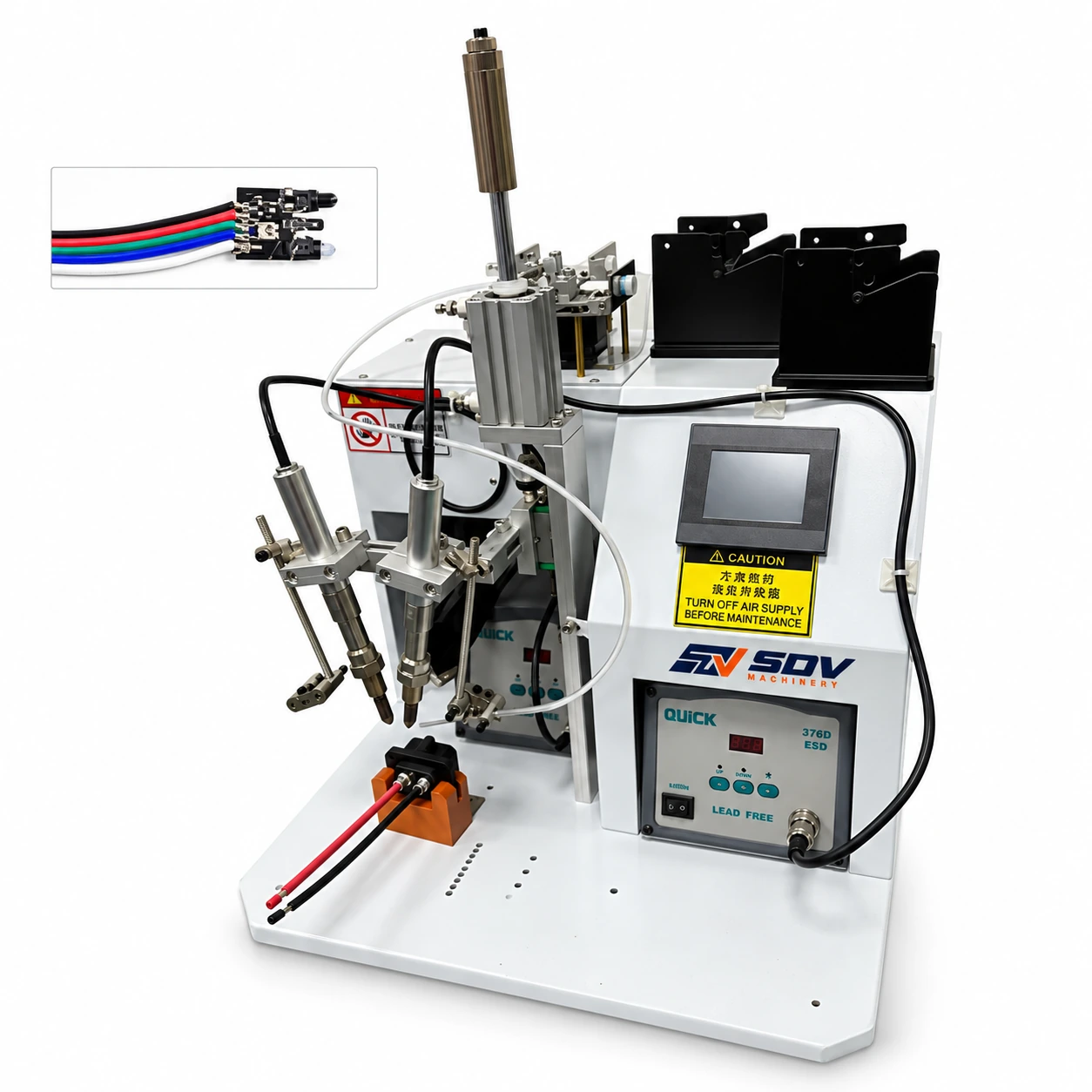

Feature
● Double-Gun Head Design: Dual soldering tips perform simultaneous twin-point soldering, doubling working efficiency compared to single-head equipment.
● Pneumatic & Electric Drive Options: Choose between the EW-6015 (0.4–0.6 MPa pneumatic drive for shop-air environments) or the EW-6015-1 (electric motor drive for workstations without compressed air).
● Stable 160W Thermal Output: Delivers fast thermal recovery and uniform heating to guarantee smooth, reliable solder joints without cold welds.
● Ergonomic Foot Pedal Trigger: Hands-free foot pedal switch frees both of the operator's hands for quick component alignment and loading.
● Ultra-Compact Benchtop Footprint (20 kg): Measuring just 400 × 400 × 450 mm, this lightweight 20 kg unit easily integrates into crowded assembly lines.
● High-Repeatability Process Control: Standardizes dwell time and tip contact pressure, eliminating solder defects caused by manual hand-soldering fatigue.
Application Range
● Wire Harness Terminal Lead Soldering: High-speed double-point soldering for connector plugs, pins, and terminal leads.
● Electronic Component Assembly: Precision dual-joint soldering for PCB header pins, switches, sensors, and relays.
● Automotive & Appliance Wiring: Repeatable, uniform soldering for automotive harness leads and internal power wires.
● Lighting & LED Driver Assembly: Efficient twin-point wire attachment for LED lighting modules and power supplies.
