Feature

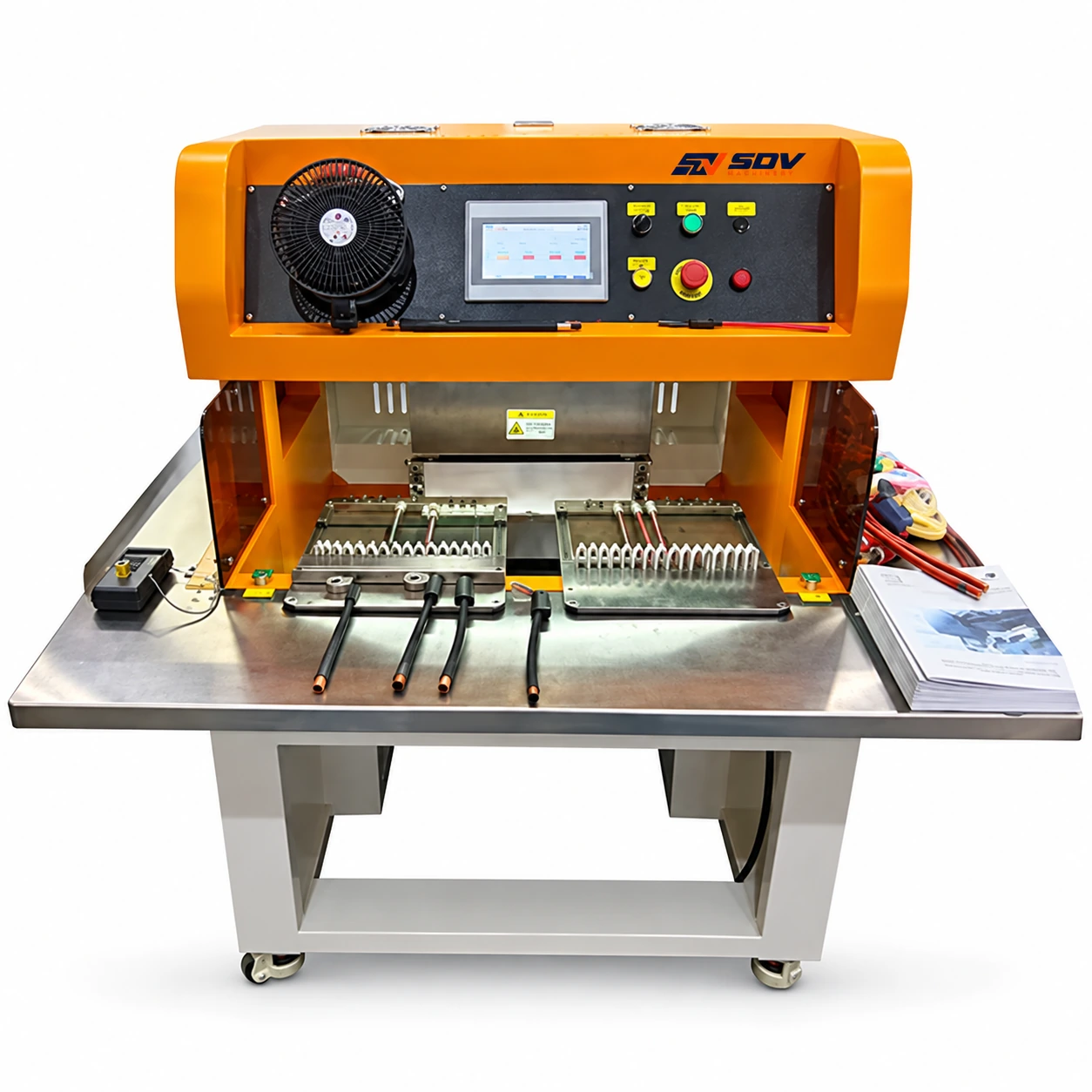

● Vortex Hot Air Circulation Technology: Penetrates both inner and outer walls of shrink tubing within seconds, achieving uniform 360-degree shrinkage and full adhesive overflow without scorching adjacent corrugated tubing.
● Servo Double-Station Action: Motorized dual-station mechanism doubles production throughput, providing smooth, automated station cycling for continuous harness loading and shrinking.
● Laser Alignment & Anti-Scalding Limit Fixtures: Built-in laser alignment guide allows operators to position shrink tubing intuitively, while adjustable anti-scalding limit strips lock tubing in place for exact post-shrink location.
● PID Precision Temperature Control (Up to 320 °C): Digitally managed heating cavity delivers stable thermal performance tailored for PVC, PET, PVDF, and dual-wall adhesive-lined shrink tubing.
● Modular Fixture Compatibility: Rapidly adapts to complex EV harness geometries through customizable, quick-change positioning fixtures.
● High Efficiency Cycle Output (3–20s / pcs): Rapid heating cavity reduces process time to as low as 3 seconds per component, maximizing throughput on high-voltage assembly lines.
Application Range
● New Energy & EV High-Voltage Wire Harnesses: Precision sealing for battery power distribution leads, motor inverter cables, and high-voltage charging couplers.
● Double-Wall Adhesive Tubing Water Sealing: 360-degree glue activation for IP67/IP68 waterproof wire splices and connector backshells.
● Corrugated Pipe Junction Transitions: Safe heat application at corrugated tube breakout points without warping or melting the outer plastic jacket.
● Automotive Control Module Wiring: High-repeatability shrink insulation for multi-pin connector joints and busbar connections.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
