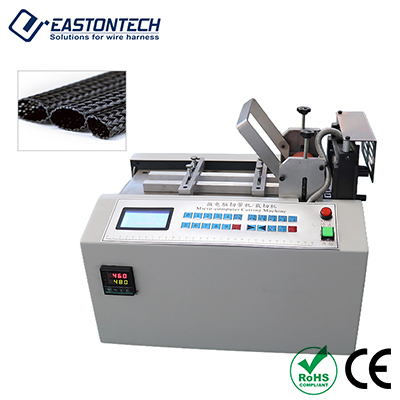

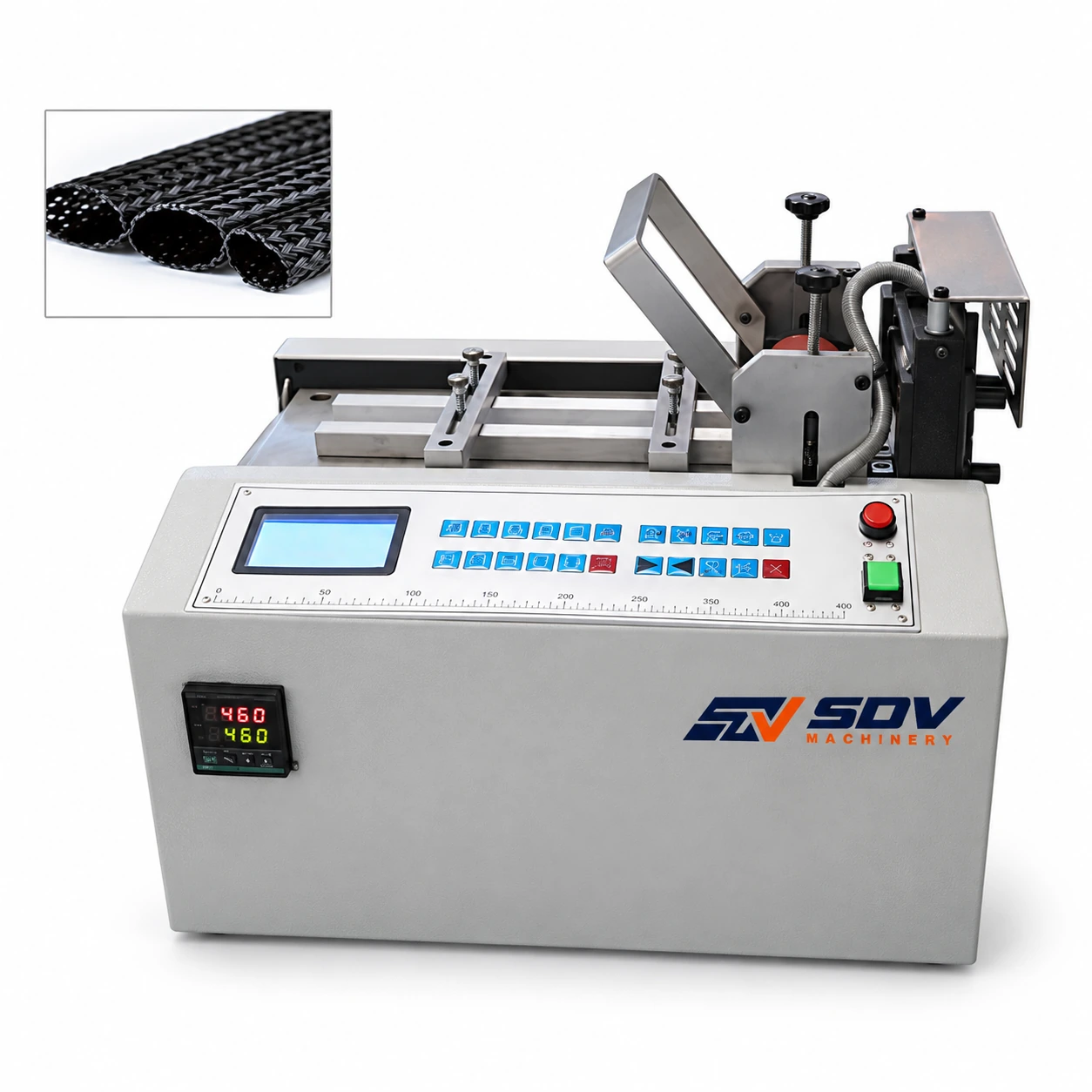

Feature
● Simultaneous Hot Cutting & Thermal Edge Sealing (Up to 400°C): High-temperature heated blade instantaneously fuses synthetic fibers during the cut, preventing unravelling and producing smooth, burr-free sealed edges.
● Ultra-Durable SKD-11 High-Speed Steel Blades: Premium SKD-11 alloy steel blades retain sharp cutting edges under continuous high thermal loads, extending tool life and reducing maintenance downtime.
● High Production Efficiency (6,000–7,200 pcs/h): High-speed motorized feeding produces up to 7,200 pieces per hour for 50 mm cut lengths, eliminating manual trimming bottlenecks.
● Precision ARM Processor & AC Motor Control: Advanced ARM microcontroller regulates material feeding to guarantee tight ±0.1 mm length accuracy across 1 mm to 9,999 mm cutting ranges.
● Intuitive HD Display & Multi-Functional Batch Controls: Clear English/Chinese LCD interface features total count tracking, batch pause timing, length compensation, and one-touch reset for rapid setup.
● Customizable Material Width & Universal Voltage: Standard 1 mm to 80 mm width capability (customizable for wider strips) supported by global 110V/220V dual-voltage power compatibility.
Application Range
● Garment & Apparel Labeling: Fray-free hot cutting of nylon care labels, printed satin tags, and decorative ribbon trims.
● Automotive & Industrial Webbing: Precision thermal cutting and edge sealing for safety belt straps, polyester webbing, and baggage tie-downs.
● Wire Harness Protective Sleeving: Clean cutting and tip sealing for braided PET expansion sleeving, woven wraps, and heat-shrink tubing.
● Medical & Outdoor Equipment Straps: Fast, repeatable hot cutting for hook-and-loop fasteners, lanyard ribbons, and synthetic bag handles.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
