Feature

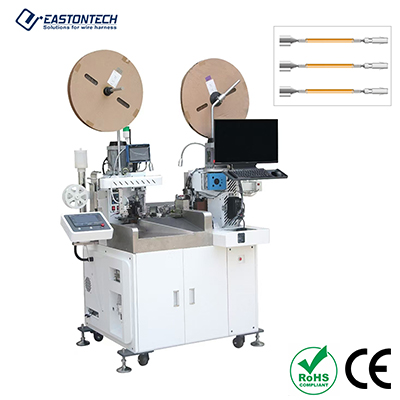

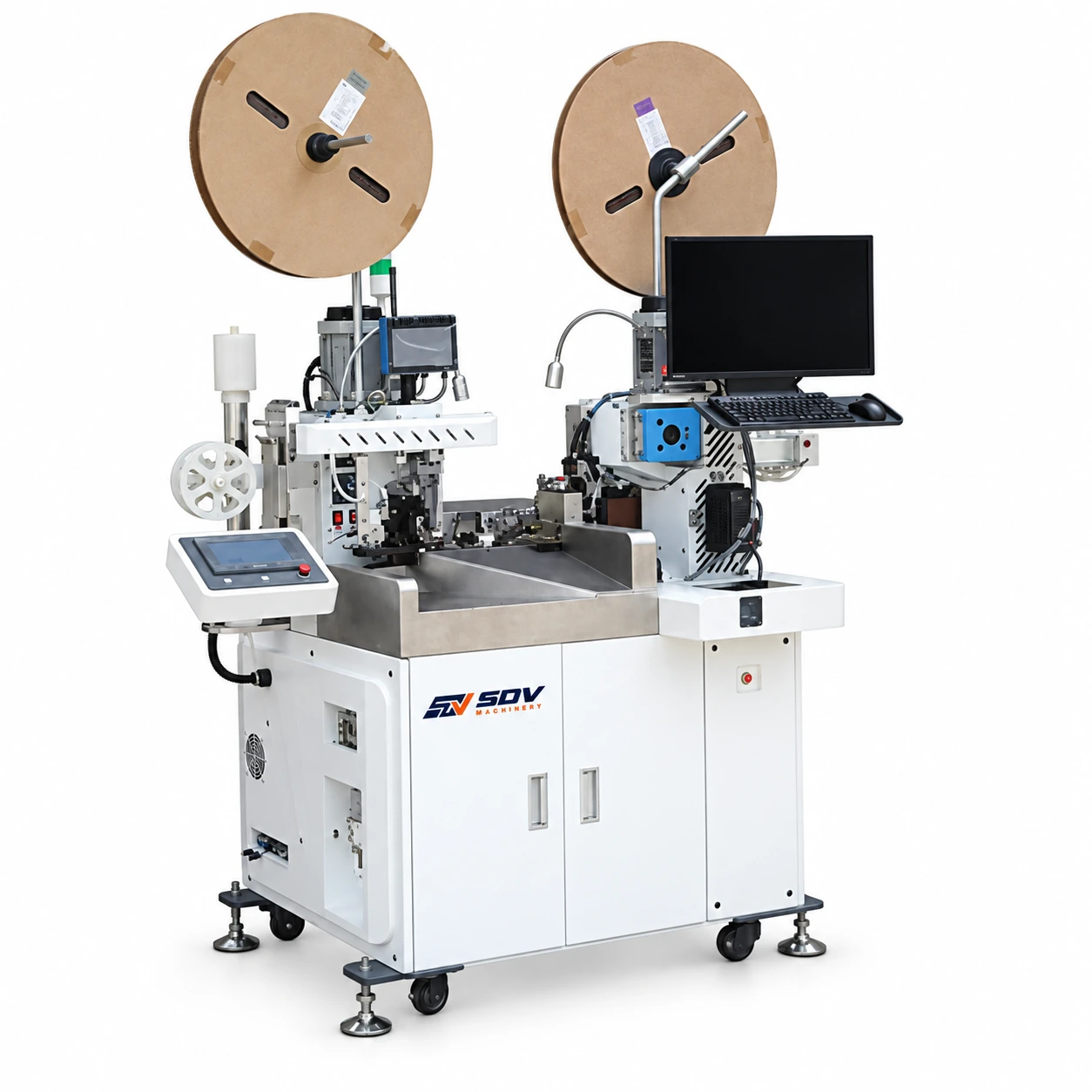

● This machine is suitable for a wide range of wires, including electronic wires, high-temperature wires, halogen-free wires, Teflon wires, and more. It performs fixed-length cutting, stripping, single/twin-end crimping, and tail-end tin dipping, making it versatile for various wire processing tasks.
● The machine improves work efficiency by reducing operator fatigue, optimizing production speed, and enhancing precision in wire processing, thus saving both time and materials.
● Operators simply need to load the wires, and the machine will automatically perform the required operations, such as cutting, stripping, crimping, and tin dipping, based on preset parameters. The machine is equipped with a customizable tin dipping length and offers an adjustable stripping length (up to 15mm), contributing to a high level of flexibility.
● Featuring a user-friendly touchscreen LCD for easy parameter setting, this machine also integrates precise servo-driven controls and auxiliary systems for terminal scrap discharge, waste insulation collection, and air pressure monitoring. The adjustable space and interchangeable fixtures further improve operational convenience.
● With high efficiency and a production rate of 2000–2800 pcs/hour, this machine ensures consistent quality with minimal downtime, while offering cost-effective production capabilities.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
