Feature

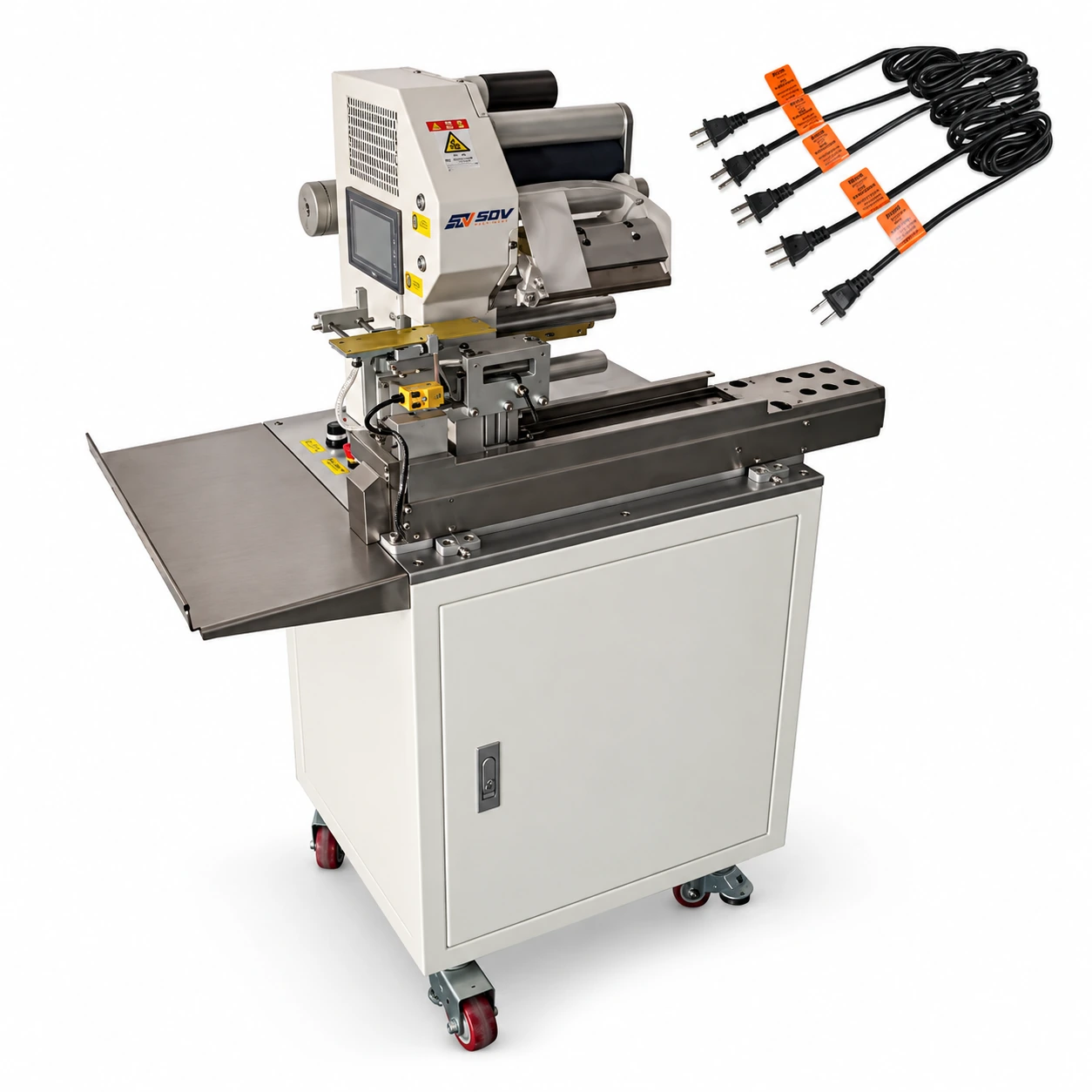

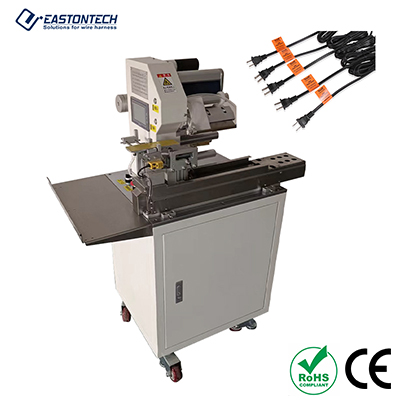

● This professional folded flag label machine adopts high-precision servo motor for stable positioning, ensuring labeling accuracy up to ±0.2mm (excluding errors from products and labels).
● It is fitted with imported Germany SICK photoelectric eye, which quickly identifies label gaps and realizes reliable label detection for continuous operation.
● The machine features a rational and humanized mechanical structure, enabling smooth and stable labeling performance for long-term workshop use.
● It supports a wide range of adjustments and is universally applicable to round wires, flat wires, water pipes and other tubular products. Standard product diameter ranges from 0-3.5mm, 3.0-5.5mm, 4.0-10mm and 7-20mm, and customized sizes are available.
● Equipped with an intelligent display panel, parameter adjustment is tool-free. Operators only need to input label size and wire diameter data directly to complete setup, no screw tightening required.
● A dedicated fine-tuning key is designed for label tolerance calibration. Meanwhile, the built-in data memory function can save multiple sets of production parameters for fast product switching.
● The labeling speed reaches 1000 to 1800 pieces per hour, effectively solving the pain points of low efficiency, poor accuracy and high labor cost of manual labeling.
● Applicable label specifications: label length 40-160mm, label width 5-45mm. Both label length and width can be customized for special production demands.
● The maximum outer diameter of label roll is 240mm and inner diameter is 76mm, with a 200mm positioning ruler, and customized ruler length is supported.
● Working condition: required air pressure 4–6 bar, operating temperature +5~+40℃, relative humidity 20%-90%RH. It comes with a foot pedal for flexible operation.
● Universal power supply AC110V/220V, rated power 0.25 KW. Overall dimension 580×680×1000mm, net weight about 86KG.
● The whole machine complies with CE and RoHS standards, meeting international industrial safety and environmental requirements.
Application Range
● Wire harness production for consumer electronics such as earphones, data cables and charging cables.
● Labeling and marking for automotive internal wires, sensor cables and vehicle wiring harnesses.
● Identification labeling for industrial pipelines, water pipes and various tubular accessories.
● Electrical equipment, home appliance internal wiring and low-voltage cable marking processes.
● Mass production workshops that need to replace manual labeling to improve efficiency and product consistency.
