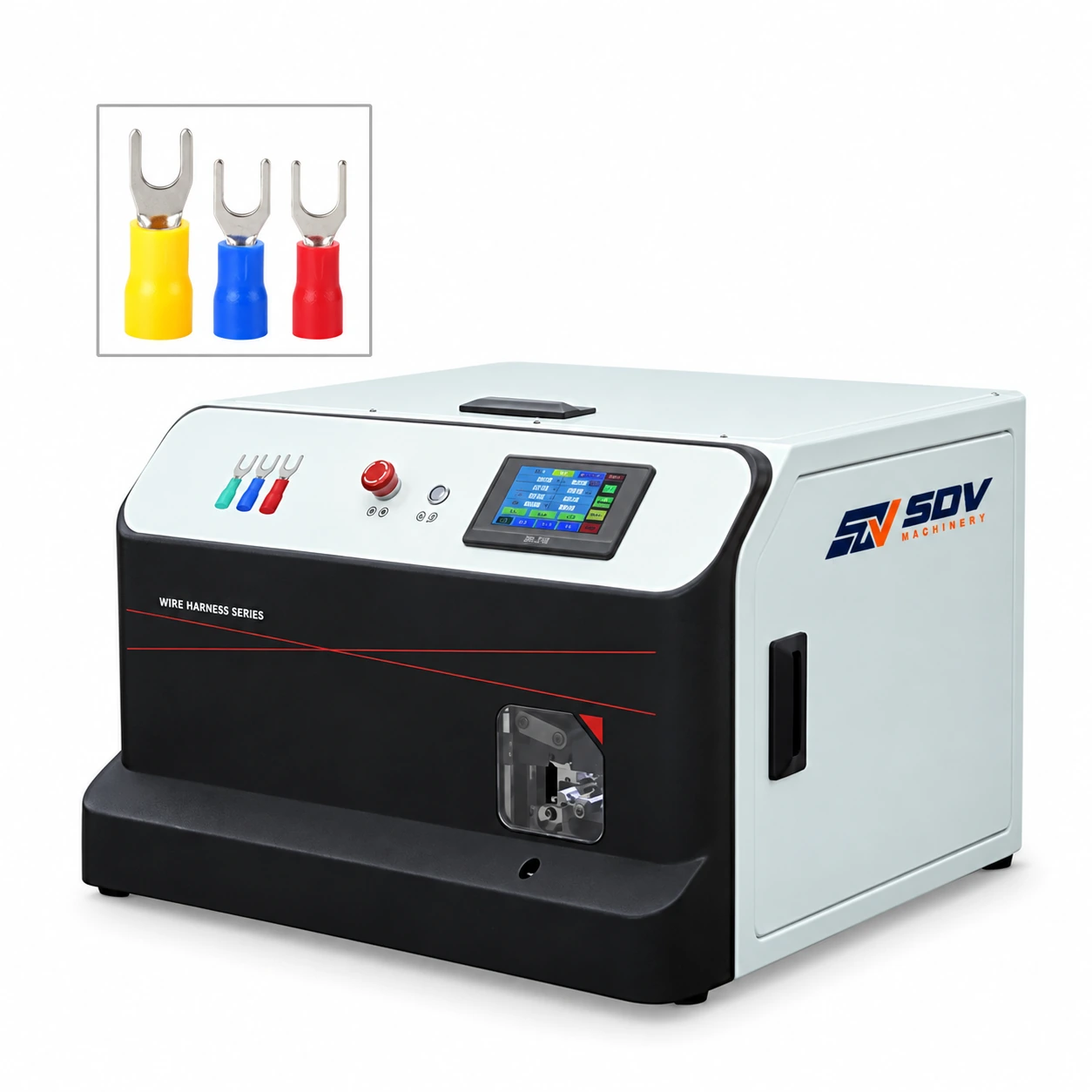

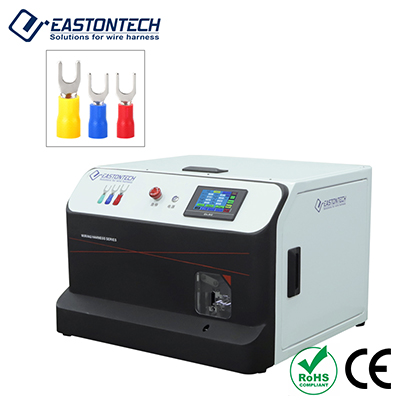

Feature
● Heavy-Duty BVR Wire Optimization: Built specifically to handle tough, flexible stranded copper core BVR conductors spanning from 0.5 mm² to 6 mm². The intake guide prevents loose copper strands from splaying or buckling before entry into the terminal barrel.
● Universal OT & UT Lug Integration: Seamlessly automates the high-speed processing of ring (OT) and fork/spade (UT) heavy-duty connection lugs, converting a slow manual crimping station into an automated single-cycle assembly run.
● Sub-Millimeter Kinetic Positioning: Boasts an incredibly tight tangent and positioning error window locked between 0.1mm and 0.15mm, completely eliminating uneven strip margins, copper strand cutting, or misplaced terminal crimping sleeves.
● Industrial-Scale 1500 PCS/H Throughput: Accelerates processing velocities to yield between 1400 and 1500 completed pieces per hour, allowing lean contract manufacturing cells to meet strict corporate fulfillment timelines easily.
● Compact High-Force Benchtop Build: Packages a robust 1200W electric-pneumatic power system into a space-saving 75KG desktop chassis. It drops effortlessly into existing lean cell layouts without requiring heavy floor re-allocations.
Application Range
● New Energy Storage Packs & EV Infrastructure: Prepares robust grounding leads, busbar bridge lines, and high-current battery management jumpers requiring flawless metal-to-metal connection seals. (Highly targeted at renewable energy hubs in Germany, Spain, Poland, Mexico, and the USA).
● Chassis Enclosures & Electrical Control Cabinets: Speeds up the fabrication of internal terminal block connections and interlocking relay bridges for massive power distribution switchgears.
● Industrial Machinery Telemetry & Telecom Hubs: Provides low-resistance, vibration-proof terminal connections for heavy production equipment panels and communication backup grid setups.
