Feature
● 2–13 Core Cable Processing
Automatically processes 2–13 core sheathed cables for wire harness production.
● High-Speed Production
Up to 1,000 pcs/h (5-pin, 150 mm) and 700 pcs/h for 13-core cables.
● Servo Precision Drive
Servo motors with screw-drive transmission ensure stable, high-precision processing.
● Standard CFM Monitoring
Built-in Crimp Force Monitoring (CFM) helps maintain consistent crimp quality.
● Independent Wire Separation
Separates conductors automatically without dedicated separation tooling.
● Damage-Free Cable Feeding
Adjustable wire clamps protect the inner insulation during processing.
● Smart Control System
Integrated hardware and software design supports reliable operation and future upgrades.
● Automation-Ready
Optional safety guarding, conveyor systems, and MES integration support automated production lines.
Application Range
The EW-9365 is designed for manufacturers that require fully automated processing of multi-core sheathed cables with dual-end crimping and dual heat shrink tube insertion in a single production cycle.
● Automotive Wire Harness Manufacturing: Processes 2–13 core cables for vehicle lighting, door harnesses, body control systems, and interior electrical assemblies.
● Home Appliance Wiring Production: Suitable for multi-core harnesses used in air conditioners, washing machines, refrigerators, and other household appliances.
● Electrical Cabinet & Control Panel Assembly: Prepares sheathed control cables with terminal crimping and heat shrink protection for industrial electrical equipment.
● Industrial Automation Equipment: Produces multi-core cable assemblies for machinery, robotics, sensors, and automation control systems.
● Aerospace & Specialized Cable Processing: Supports high-precision processing of multi-core cables where consistent crimp quality and insulation protection are essential.

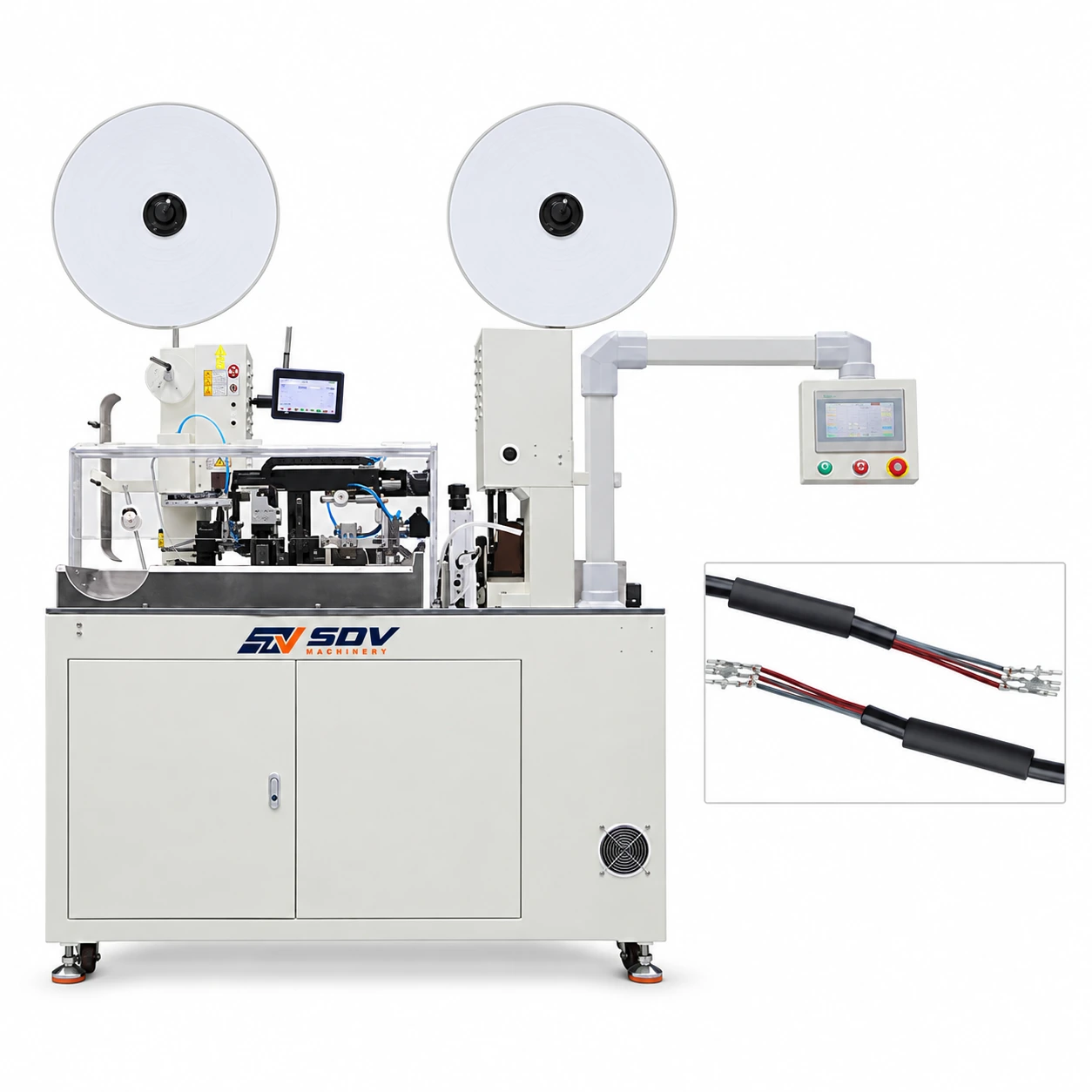

Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
