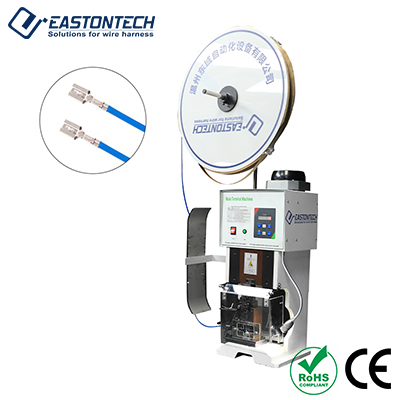

Feature
● Heavy-Duty 4-Ton Crimp Force: Delivers 40 kN of reliable pressing power to handle thick wire gauges, heavy-duty automotive terminals, and robust wire-to-board connectors.
● Integrated Safety Protective Shield: Equipped with a transparent protective safety cover that encloses the press stroke zone, preventing operator injury during foot pedal actuation.
● Quick-Change Applicator Interface: Universal mounting platform allows effortless swap-outs between OTP horizontal, OTP vertical, and custom mini-applicators for fast job changeovers.
● Selectable Stroke Length (30 mm / 40 mm): Accommodates diverse terminal types and press shut-height standards with configurable 30 mm or 40 mm stroke options.
● Stable Electric Drive & Low Noise: High-torque 0.75 kW electric drive delivers constant voltage stability, fast processing cycle speeds, and low energy consumption without requiring external compressed air.
● Ergonomic Foot Pedal Actuation: Foot switch enables hands-free operation, allowing technicians to align wire strands and terminals accurately prior to each crimp cycle.
Application Range
● Automotive Harness Manufacturing: Precision crimping for heavy battery terminals, sensor leads, relay connectors, and automotive wire looms.
● Industrial Power & Control Cabinets: Crimp processing for ring terminals, spade lugs, and pin contacts used in industrial equipment panels.
● Home Appliances & Consumer Electronics: High-speed benchtop terminal assembly for power cords, HVAC wiring, and appliance harnesses.
● Contract Wire Harness Shops: Flexible benchtop press for short-run production or multi-station harness assembly lines requiring frequent die changes.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
