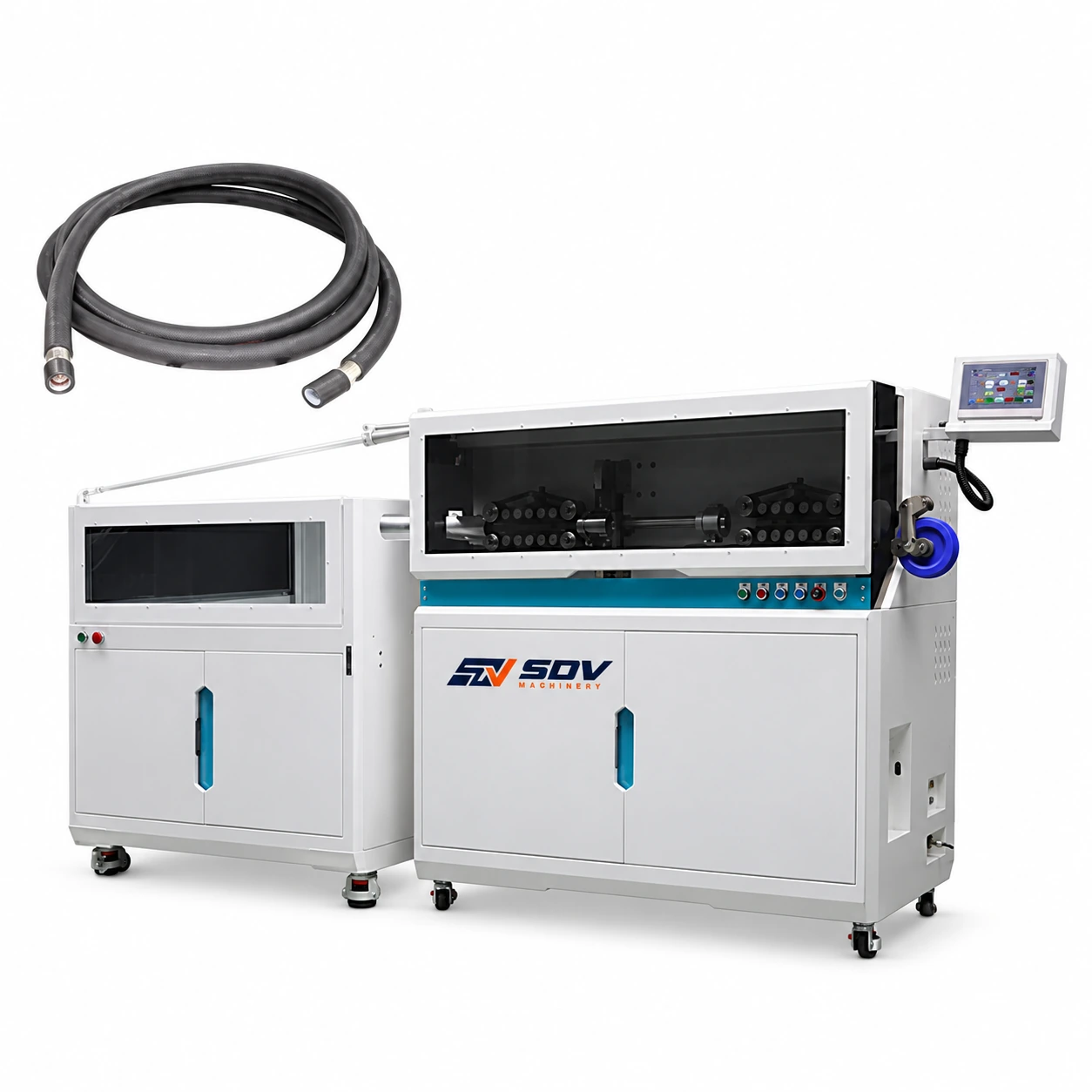

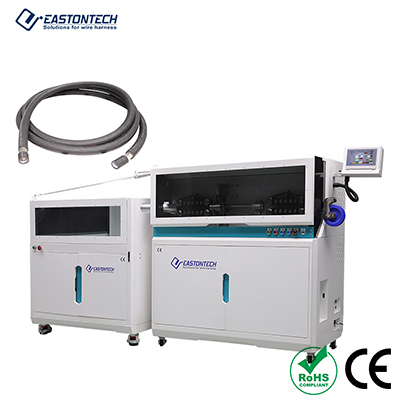

Feature
● Heavy-Gauge Processing (10-300 mm²): Powerfully processes single-core, multi-core, and shielded cables up to 300 mm² with a maximum guide tube diameter of 38 mm. It executes deep stripping up to 300 mm on both ends utilizing a heavy-duty double-servo, double-screw tool holder.
● Mark-Free 28-Wheel Belt Feed: Utilizes a synchronized 28-wheel independent drive belt system with digitally adjustable stepper-motor lifting. This delivers massive pulling traction for heavy reels while leaving zero physical marks or scratches on delicate outer cable jackets.
● Synchronized Servo Coiling (2.5 m/s): Equipped with an active-follow servo coiling unit that dynamically tracks the main machine's stripping speed up to 2.5 m/s. It easily winds processed cables into perfect coils with programmable inner diameters from 200 to 960 mm.
● Fail-Safe Pneumatic Safety Guard: Features an automatic pneumatic safety door that drops instantly when the foot switch or start button is pressed. It opens automatically upon cycle completion, allowing the operator to safely retrieve the coiled bundle.
● Micro-Tolerance Precision Cutting: Achieves extreme cutting length accuracy of within 0.002 * L (where L represents total cutting length) for lengths up to 999999.99 mm. High-quality imported high-speed steel universal V-blades (or optional radius blades) guarantee crisp, clean cuts every time.
Application Range
● High-Voltage Grid Distribution: Processing thick grounding lines, substation wires, and industrial power cables.
● Heavy Machine & Marine Wiring: Cutting, stripping, and coiling high-capacity cables for shipbuilding, cranes, and railways.
● New Energy Megaprojects: Manufacturing heavy-duty battery pack connections for large-scale utility battery storage installations.
● High-Volume Cable Distribution: Custom-length cable order preparation for electrical wholesalers and wire distributors.
