Feature

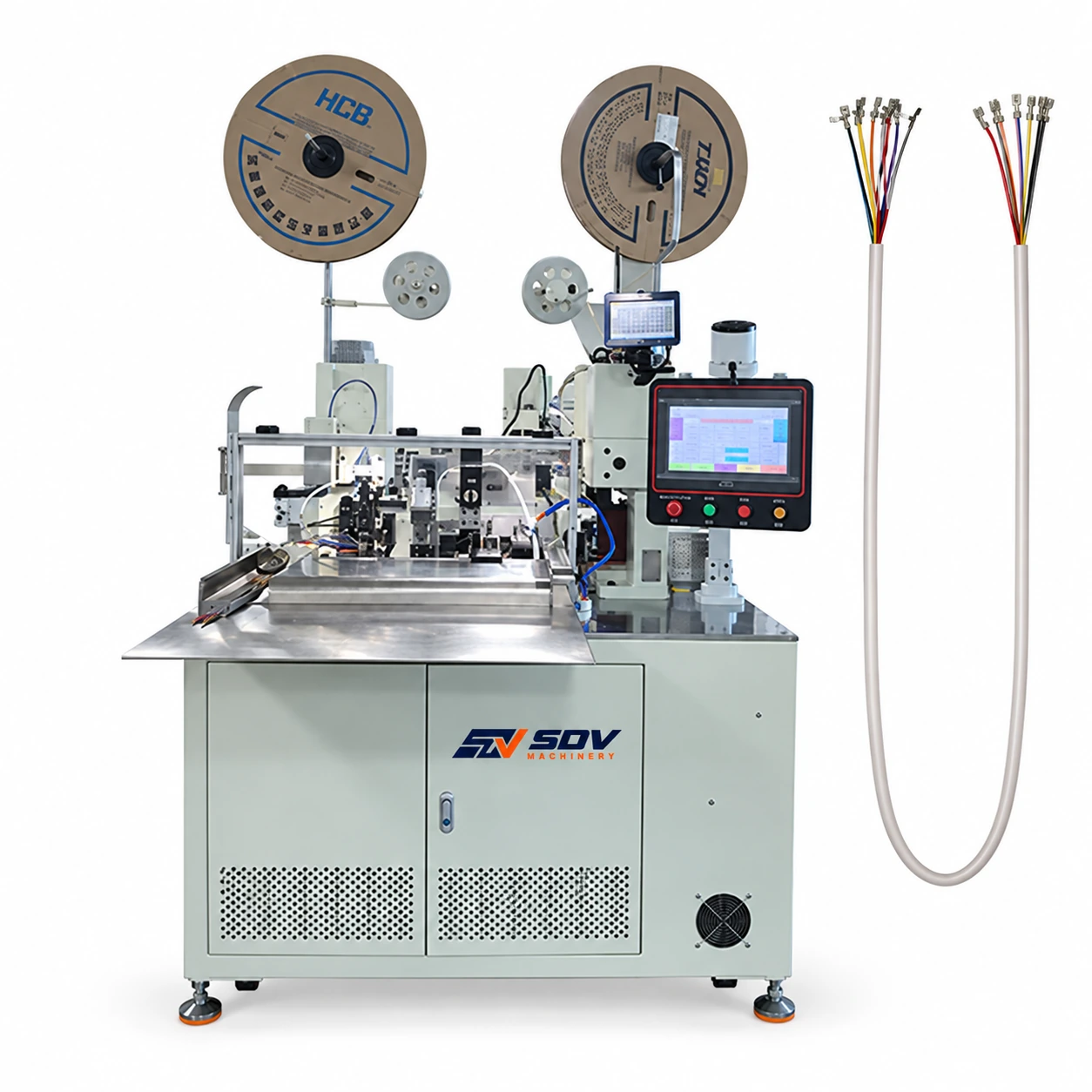

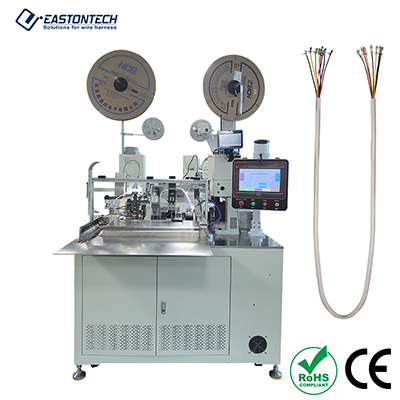

● Synchronous Double-Head Core Processing: Simultaneously strips outer jackets, strips inner core insulation, and crimps terminals on both ends of multi-core cables in a single automated cycle.
● Multi-Core Sheathed Cable Compatibility: Designed specifically for 2 to 6+ core sheathed cables (OD 3–8 mm, AWG 28–20), handling jacket stripping lengths from 30 to 150 mm and core strips from 2 to 10 mm.
● Servo Motor & Ball Screw Precision: High-rigidity servo motor paired with ball screw drive ensures smooth wire feeding and tight length tolerances of ±[0.5 + (L × 0.002)] mm.
● Universal Applicator & Custom Crimping: Features a 2.0 Ton crimping press (30mm or 40mm stroke) compatible with horizontal, vertical, flag, European mini-style, and Japanese/Korean standard applicator dies.
● Comprehensive Quality Monitoring: Equipped with integrated terminal presence detection, air pressure sensors, missing wire/kink detection, and optional Crimp Force Monitoring (CFM/CFA) to prevent defective wire runs.
Application Range
● Automotive & Commercial Vehicle Harnessing: Multi-core sensor cables, door harness assemblies, and CAN bus communication lines.
● Home Appliance & Consumer Electronics: Multi-conductor power leads, control board interconnects, and HVAC wiring trees.
● Industrial Automation & Robotics: Multi-core signal cabling, servo encoder wires, and power distribution leads.
● Medical & Telecommunications Equipment: Shielded multi-core jumpers and precision multi-lead harness assemblies.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
