Feature

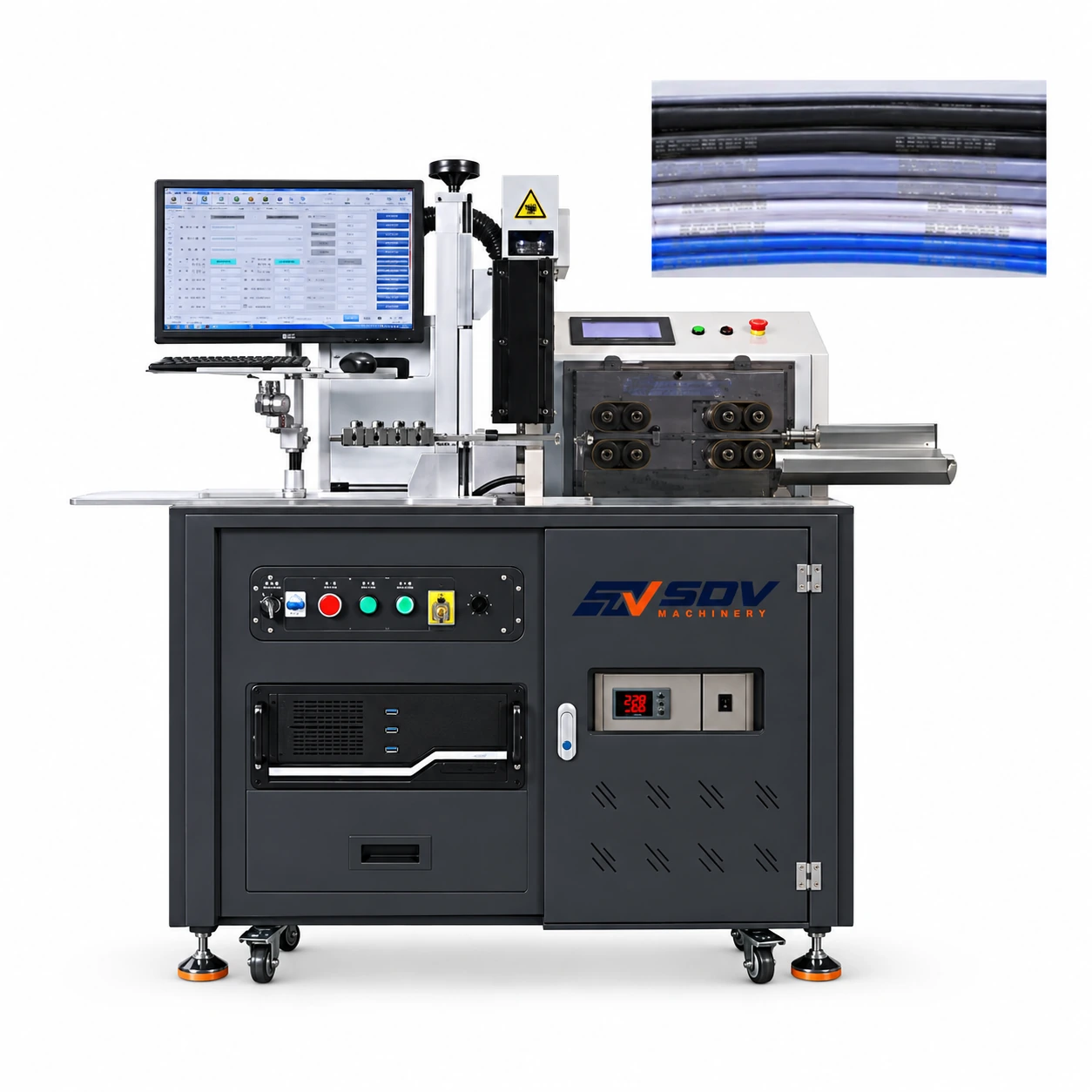

● Working principle of the computerized wire stripping machine.
● The computerized wire stripping machine is set up by adjusting the desired parameters and placing the wire or cable to be stripped onto the machine.
● The machine utilizes a transmission system and stripping blades to perform the wire stripping operation. The stripping blades can be adjusted to ensure the appropriate length and depth of the stripping.
● During the stripping process, the machine controls the speed and force of the blades to ensure accuracy and consistency.
● Once the stripping is completed, the outer insulation material of the wire or cable is removed, exposing the internal conductors.
● The laser marking machine generates a high-energy laser beam using a laser generator.
● The laser beam is focused and controlled through an optical system to form a fine beam.
● The control system operates the laser beam by precisely controlling its movement and switching based on the desired marking content.
● When the laser beam is directed onto the surface of the target object, it interacts with the material, causing chemical or physical reactions that form visible marks on the surface.
● The control system can adjust the laser's power, scanning speed, and scanning mode to achieve different marking effects and requirements.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
