Feature

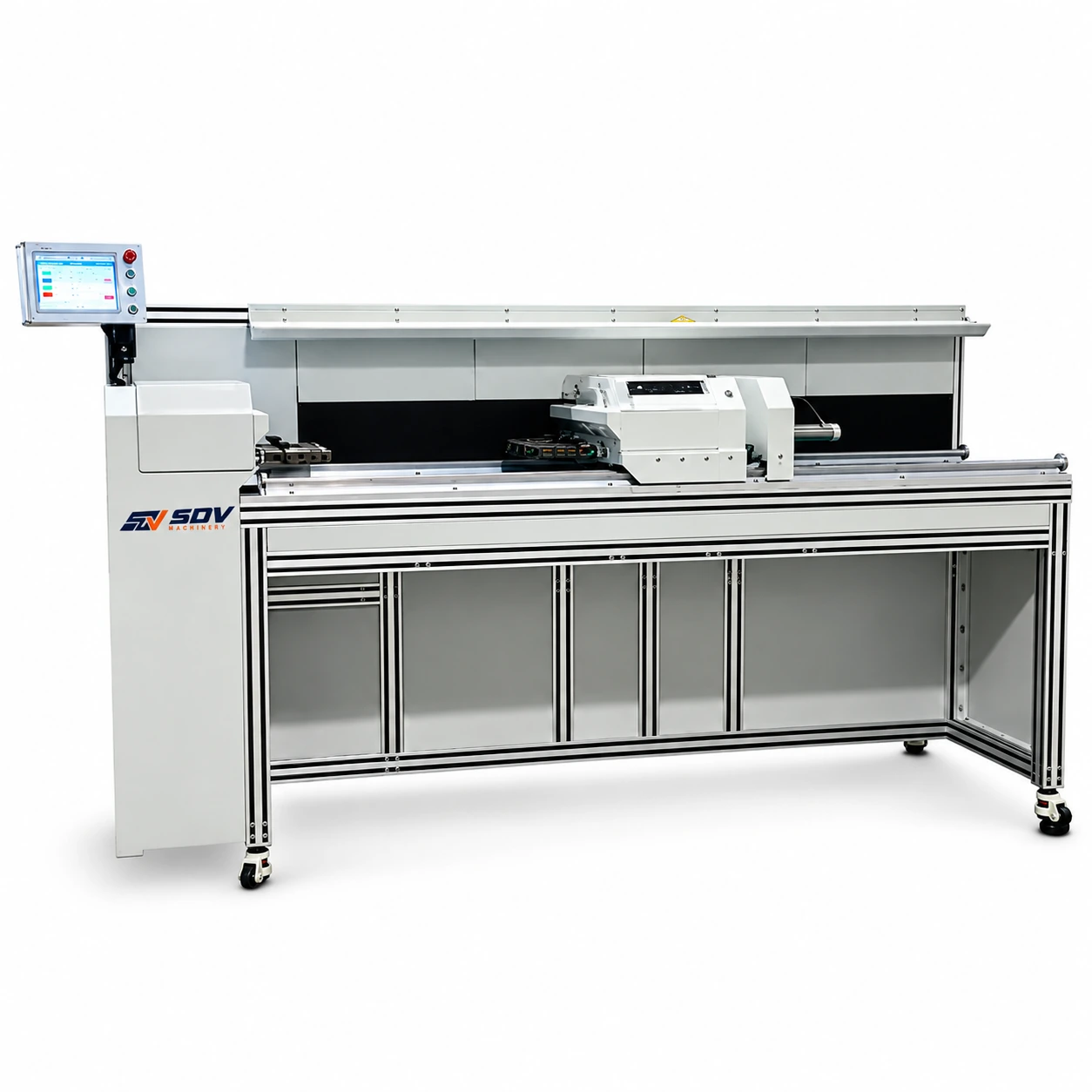

● Four-Axis Simultaneous Twisting (2 to 4 Wires): Multi-spindle design twists up to 4 individual wires or multiple pairs in a single operation, quadrupling output over standard single-axis units.
● High-Power 2000W Motor (Up to 3,000 RPM): Delivers smooth, continuous rotational torque to achieve tight, uniform twist density on conductors from 0.3 to 4.0 mm².
● Customizable Twist Pitch & Strand Length: Offers standard twist pitch options of 10, 20, and 30 mm (fully customizable) across strand lengths from 100 to 1,250 mm (customizable for extended runs).
● Broad Cable Compatibility (TJ, U, BV, RVV): Versatile clamping jaws accommodate single-core copper wires, stranded flexible leads, sheath cables, and multi-conductor power lines.
● Compact & Cost-Effective Footprint: Engineered with a streamlined 190 kg frame that conserves shop floor space while significantly reducing processing cost per wire harness.
Application Range
● Multi-Conductor Electrical Cabling: High-volume twisting for BV and RVV sheath power wires used in building and industrial equipment.
● Automotive & Commercial Vehicle Wiring: Uniform multi-wire twisting for lighting, sensor, and auxiliary power distribution leads.
● Home Appliance Wire Assemblies: Fast processing of multi-strand jumper leads for washing machines, HVAC units, and control panels.
● Contract Wire Harness Manufacturing: High-speed batch production of custom 2-wire, 3-wire, or 4-wire twisted sets with specific pitch requirements.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
