Feature

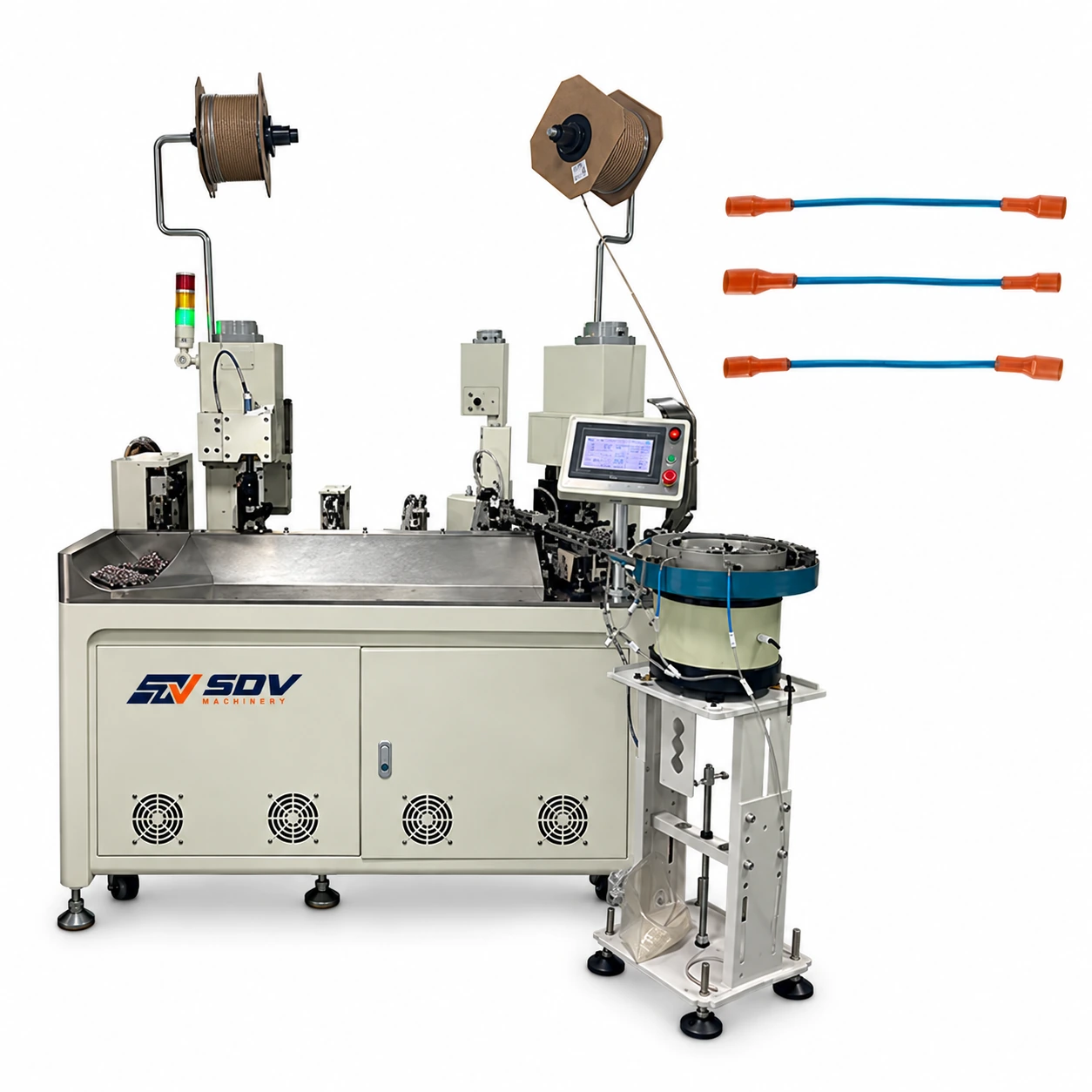

● Simultaneous Sleeve Insertion & Crimping: Drastically cuts labor costs by fully automating wire feeding, dual-end stripping, insulation sleeve/housing insertion, and terminal crimping in a single automated flow.
Mid-to-Heavy Gauge Optimization: Tailor-made to process rugged industrial and automotive wire profiles from #22 to #14 AWG.
● 0.01mm Micro-Resolution Cutting Depth: Features an advanced stripping head with a maximum blade adjustment depth of 5.50mm and an ultra-precise resolution of 0.01mm, preventing any damage to copper strands.
● Massive & Scalable Processing Length: Accommodates an exceptionally wide wire cutting spectrum from 86mm up to 99999mm, while delivering a steady output of 1500 wires/hour (for 80-100mm standard lengths).
● Programmable Strip Settings: Offers independent digital control for stripping profiles, supporting front-end stripping of 0.5~8.0mm and back-end stripping of 0.1~10.0mm.
● Multi-Sensor Fail-Safe Array: Equipped with real-time industrial monitors for low air pressure, abnormal power cord voltage/pressure, and abnormal wiring faults to ensure zero-defect production.
● Heavy-Duty 500kg Architecture: Anchored on a solid, vibration-dampening 500kg industrial frame (W800×D1400×H1800 mm). Ready for immediate global export with universal AC110V/220V (50/60HZ) power compatibility.
Application Range
● Automotive Wiring Systems: Mass production of fuse box connections, relay sockets, and high-current power distribution loops where terminals require rigid plastic insulation sleeves for circuit protection.
● White Goods & Heavy Appliances: High-speed preparation of internal wire harnesses for washing machines, industrial dryers, and ovens that demand quick-connect terminals with full sleeve isolation.
● Industrial Automation & Power Supplies: Prepares secure, insulated terminations for control cabinet panels, transformers, and industrial power distribution arrays.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
