Feature
● Automatic Strip & Crimp Processing
Completes insulation stripping and ferrule crimping in one continuous cycle for faster production.
● Four-Side Square Crimping
Produces square-simulated four-side crimps for secure ferrule termination and consistent wire insertion.
● Wide BVR Wire Compatibility
Processes 0.5–4.0 mm² BVR wires for industrial and electrical wiring applications.
● High Production Efficiency
Delivers 1400–1500 pcs/hour while maintaining stable processing quality.
● Precision Positioning
Provides 0.1–0.15 mm positioning and cutting accuracy for repeatable crimping results.
● Compact Desktop Design
The space-saving 50 kg machine fits easily into assembly workstations and production cells.
Application Range

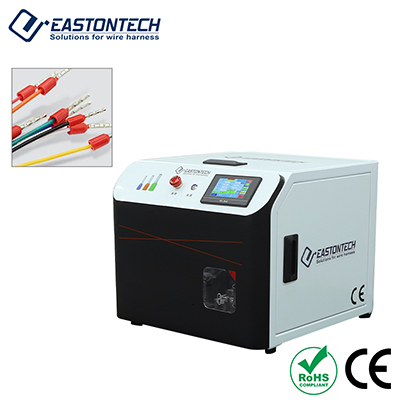

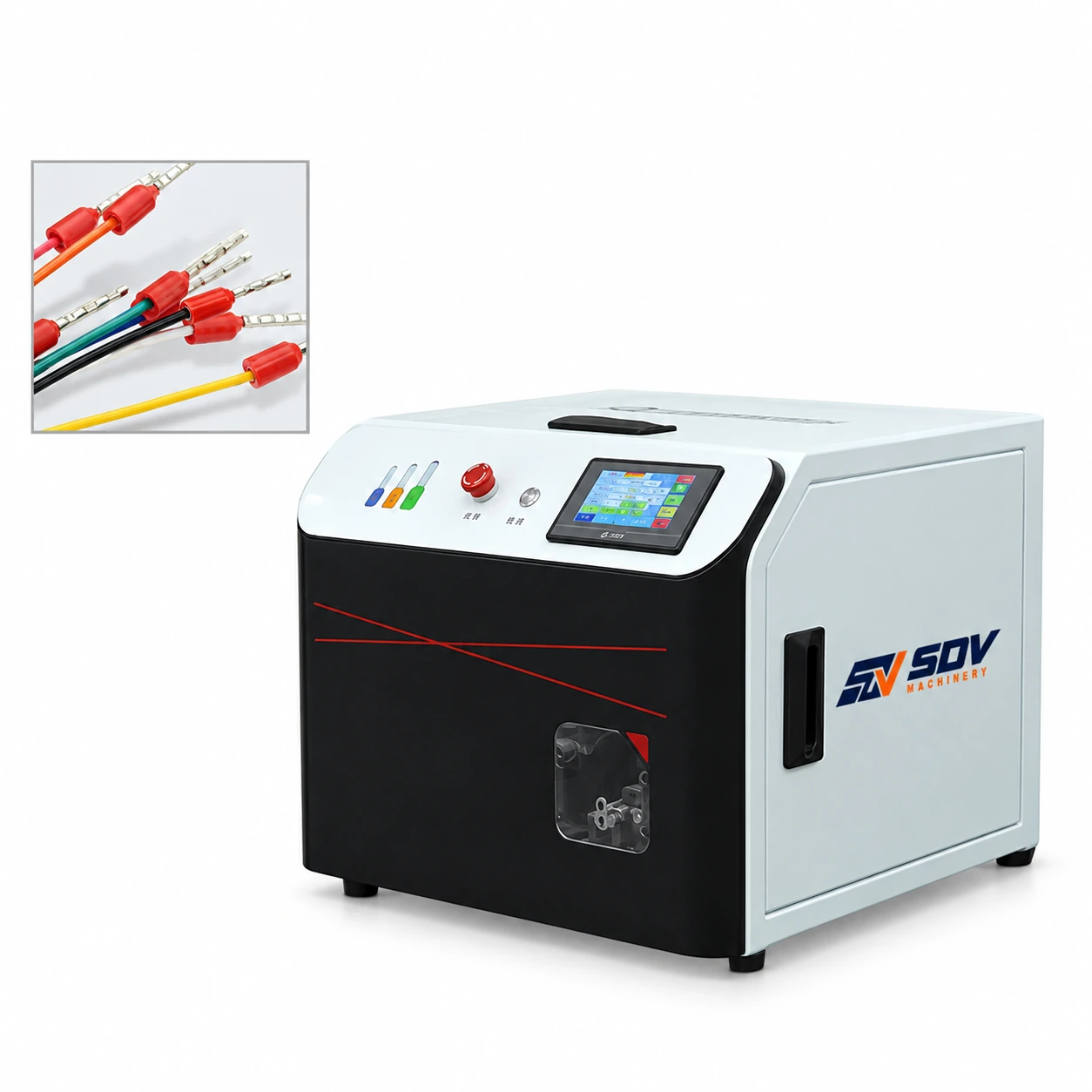

The EW-5620 is designed for manufacturers requiring automatic ferrule stripping and crimping with consistent square crimp quality.
● New Energy Wiring Harnesses: Processes ferrule terminals for battery systems, power distribution wiring, and renewable energy equipment.
● Electrical Cabinet Assembly: Produces ferrule-terminated conductors for control panels, switchgear, and electrical cabinets.
● Industrial Control Wiring: Suitable for PLC wiring, automation equipment, and industrial machinery assemblies.
● Electrical Equipment Manufacturing: Processes BVR wires used in electrical appliances and equipment production.
● Customized Cable Assembly: Supports OEM cable processing for electronics, communications, and industrial wire harness manufacturers.
