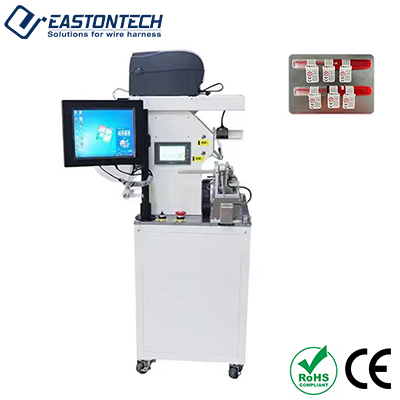

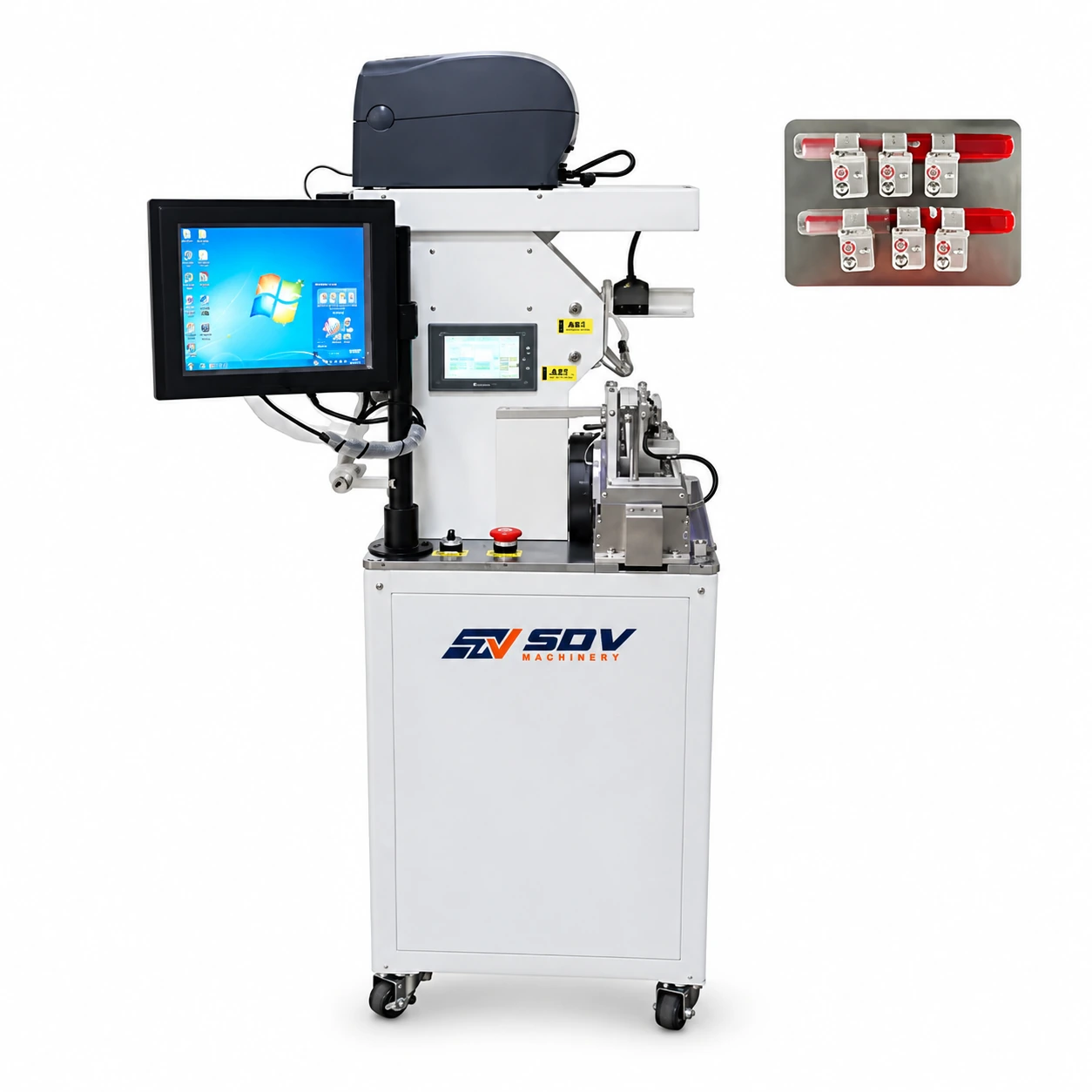

Feature
● Precision Servo & German SICK Sensor: Driven by a precision servo motor and German SICK photoelectric label sensor for instantaneous label gap detection and exact dispensing accuracy within ±0.5 mm.
● Screw-Free Touchscreen Parameter Setup: Eliminates tedious manual mechanical tweaking—operators simply input label dimensions and wire diameter on the touchscreen for automatic positioning.
● High-Speed Output (800–1,800 pcs/h): Replaces slow manual folding with continuous automated labeling, increasing output while eliminating line bottlenecks and reducing operator dependency.
● Broad Cable & Label Compatibility: Supports label lengths from 40 to 160 mm and widths from 5 to 45 mm on round wires, flat ribbon cables, and pneumatic/water pipes (15–200 mm positioning range).
● Optional Real-Time Online Printing Integration: Easily integrates with inline thermal transfer printers for real-time printing, batch printing, and synchronous one-by-one print-and-apply workflows.
● Single-Touch Fine-Tuning & Memory Storage: Features fine-tuning keys for on-the-fly tolerance micro-adjustments during active runs, with job memory for rapid recipe retrieval.
Application Range
● Automotive Wire Harness Manufacturing: Fast, wrinkle-free flag and fold-around labeling for automotive engine, door, and dashboard wiring.
● Telecommunications & Network Cabling: Precision barcode and spec labeling for ethernet cords, coaxial cables, and fiber optic leads.
● Industrial Automation & Appliance Wiring: Repeatable fold labeling for internal power supplies, control panel wiring, and flat ribbon cables.
● Medical & Fluid Tubing Systems: Accurate wrap-around and flag labeling on flexible pneumatic tubes, silicone hoses, and fluid transmission lines.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
