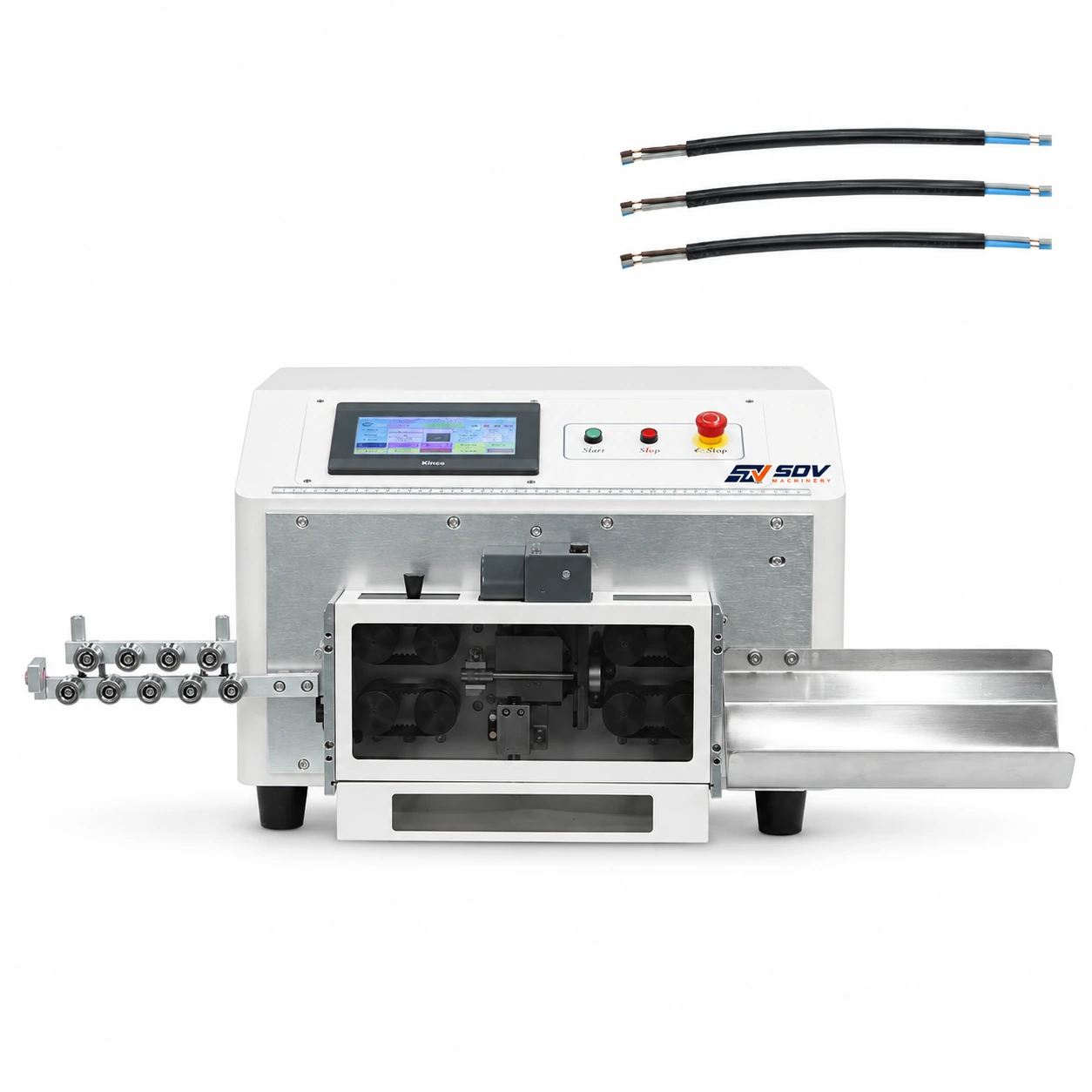

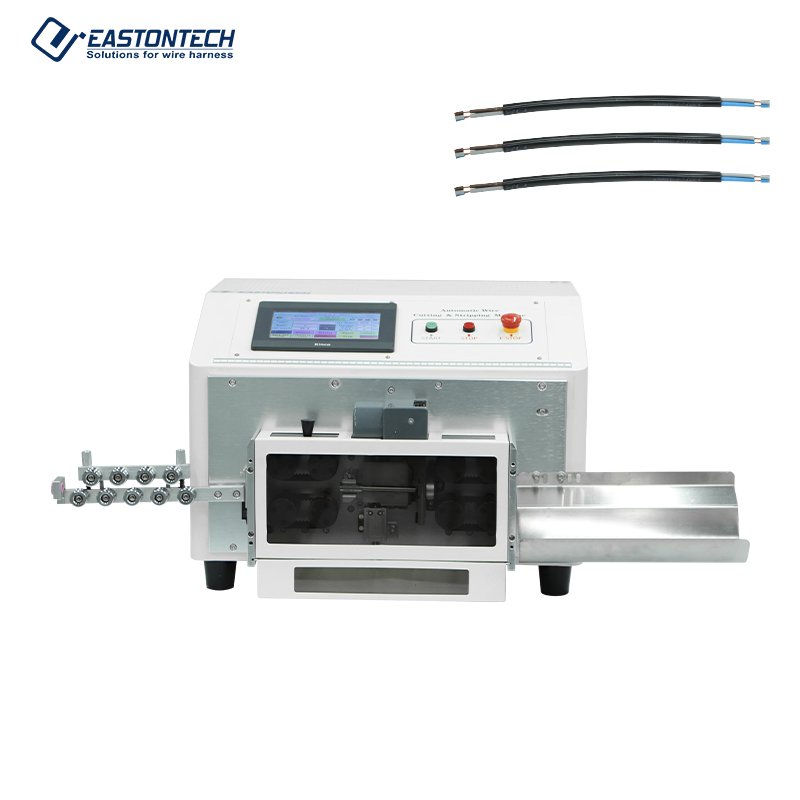

Feature
● Simultaneous Double-Layer Cutting & Stripping: Processes both the outer jacket and inner core leads (2–8 cores) in a single automated cycle, eliminating manual pre-stripping steps and handling delays.
● Wide Multi-Core Processing Range (2–10 mm OD / 2–8 Cores): Purpose-built for round multi-conductor cables up to 10 mm outer diameter, executing precise jacket stripping and core lead processing.
● Integrated Cable Carding & Alignment System: Built-in carding device automatically separates and aligns inner core wires before stripping, preventing core entanglement and blade collision.
● 0.01 mm High-Precision Silent Hybrid Stepper Motors: Low-noise hybrid stepper motor drives guarantee 0.01 mm stripping depth repeatability, preventing core conductor damage and scrap.
● Automatic Length Modification & Waste Reduction: Smart program control dynamically compensates for wire feed variations during continuous runs, ensuring strict cutting tolerances and minimizing material waste.
● Smart Wire Lack Detection & Auto-Alarm: Integrated sensor continuously monitors wire supply, automatically halting operation and sounding an alarm upon wire depletion to optimize labor usage.
Application Range
● Multi-Core Power & Control Cable Assemblies: Automated outer jacket and inner core stripping for 2 to 8 core power cords, industrial control lines, and sensor cables.
● Automotive & Transportation Wire Harnesses: High-precision double-layer stripping for multi-conductor vehicle signal wires, sensor leads, and sub-assemblies.
● Consumer Electronics & Appliance Power Cords: Fast processing for AC/DC power cables, multi-pin appliance wiring, and power supply leads.
● Industrial Automation & Robotics Cabling: Processing flexible multi-core cables requiring 0.01 mm stripping accuracy without scoring inner copper strands.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
