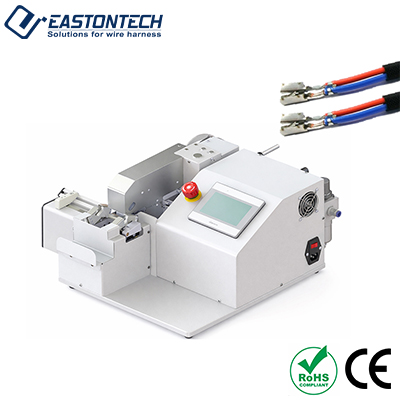

Feature
● 700 rpm High-Speed Uniform Winding: Delivers smooth, repeatable tape wrapping at 700 rpm, eliminating loose tape ends, uneven spiral overlap, and tape wrinkling common in manual wrapping.
● Adjustable Bundling Rounds (2–6 Rounds): Precise control over wrapping turns (2 to 6 rounds) allows flexible adaptation for light spot bundling or heavy-duty insulation fastening.
● Broad Tape Material Compatibility: Handles standard 9–19 mm tape widths across PVC, woven cloth, and fleece noise-damping materials on 32–76 mm mandrel rolls up to 150 mm outer diameter.
● Compact Desktop Footprint: Measuring just 450 × 475 × 220 mm with a low 150 W power rating, the space-saving benchtop design easily integrates into congested assembly lines and repair stations.
● Pneumatic-Assisted Wire Clamping: Operates on 0.4–0.6 MPa compressed air for stable wire clamping and vibration-free winding during continuous production runs.
● Global Electrical Compatibility: Supports dual-voltage 110V/220V AC (50/60 Hz) operation with low heat generation for uninterrupted multi-shift performance.
Application Range
● Automotive Wire Harness Assembly: Fast spot taping and branch bundling for car audio, lighting, and interior sensor wiring.
● Consumer Electronics & Appliance Cabling: Repeatable insulation taping and wire bundling for internal power distribution harnesses.
● Industrial Automation & Equipment Panels: Compact benchtop taping for control cabinet interconnects and sub-assemblies.
● Harness Repair & Laboratory Prototyping: Ideal for low-to-medium volume production, custom wire shops, and harness rework stations.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
