Feature

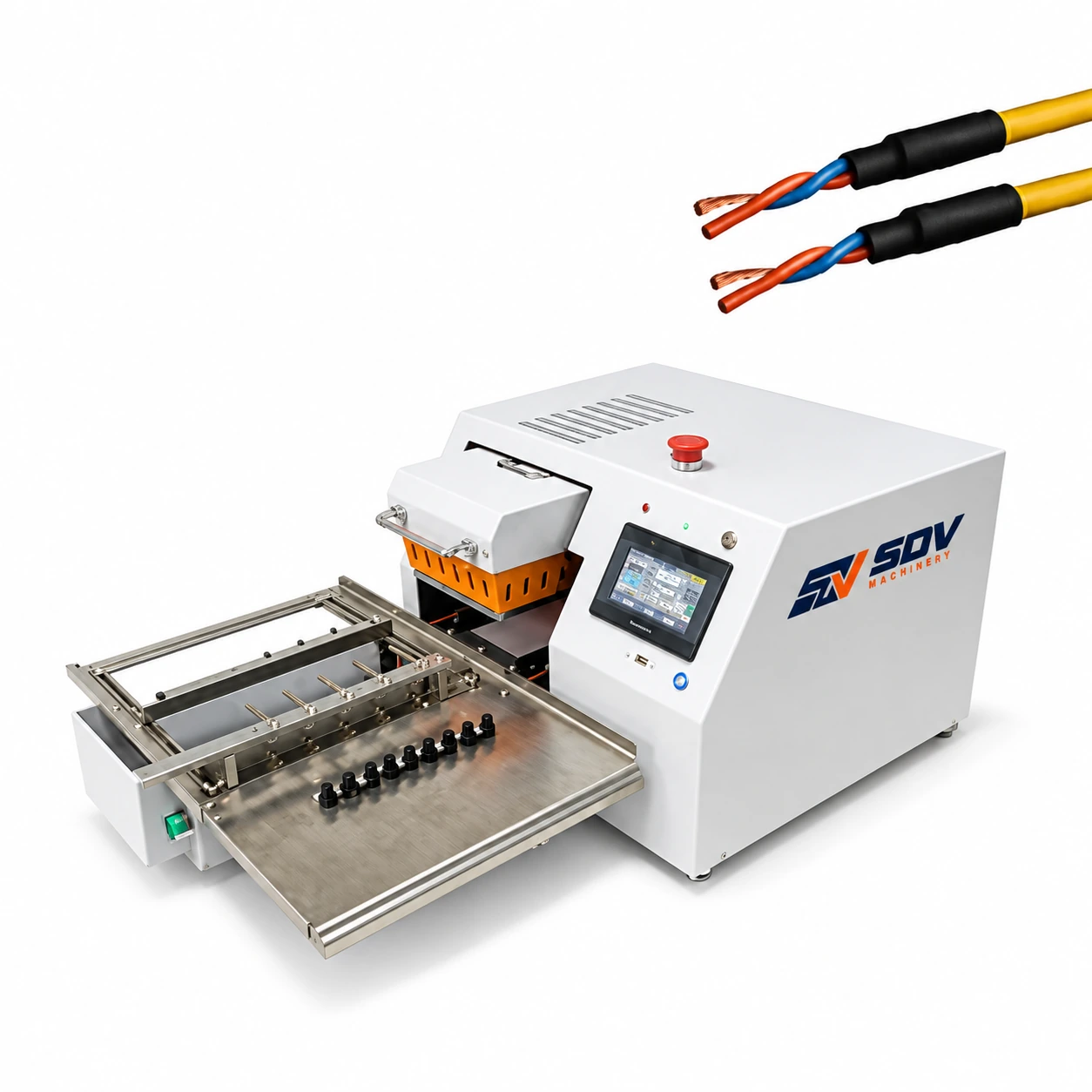

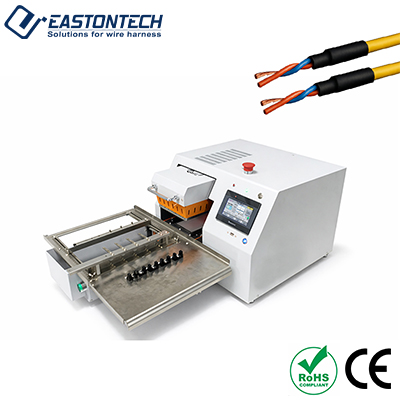

● Motorized Intermediate-Position Shrinking (240 mm X-Axis): Shrinks tubes directly on mid-span branches, Y-splits, and junction covers without accessing wire ends or bending cable trunks.
● Multi-Wire Parallel Baking (300 mm Panel): Wide 300 mm heating zone accommodates multiple harnesses in a single cycle (up to 120 mm² cross-section) for maximum throughput.
● Programmable Multi-Stop Sequences: Executes automated multi-position heating routines with independent dwell times and temperatures per stop on a single complex harness.
● 620 ℃ Wide Temperature Range: Broad thermal capability supports all standard and high-temp tubing materials, including polyolefin, PVC, PTFE, and fluoropolymers.
● MES Connectivity & 14-Day Data Traceability: Integrated network interface streams live cycle data to MES databases and stores a rolling 14-day history for IATF 16949 compliance.
● Vision Inspection & Admin Access Control: Dedicated interface supports post-shrink machine vision checks, while password-protected admin rights lock down approved process parameters.
Application Range
● Automotive Main Harness Y-Splits: High-volume insulated sealing for interior branch points, ground splices, and Y-split junction covers.
● EV & High-Voltage Power Wiring: Reliable heat shrinking on heavy-gauge battery cables and power distribution lines up to 120 mm².
● High-Temperature Fluoropolymer Tubing: Clean, bubble-free activation for PTFE and fluoropolymer protective sleeves requiring temperatures up to 620 ℃.
● Smart MES-Connected Factories: Seamless integration into Tier 1 automotive plants requiring real-time process logging under IATF 16949 auditing standards.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
