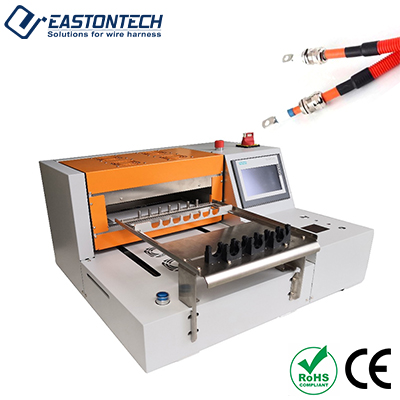

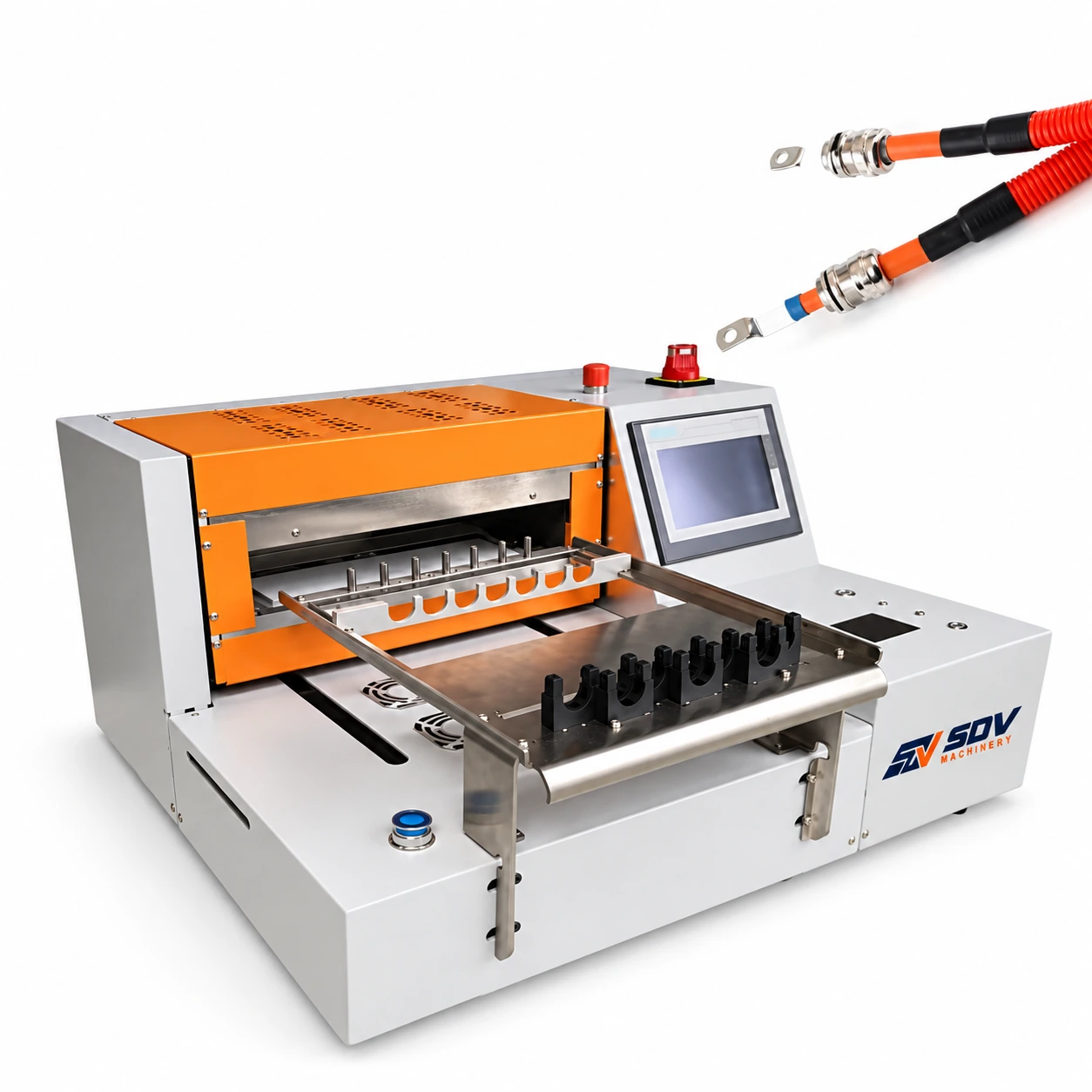

Feature
● The machine leads to the heat-shrinking process safer and more efficient. The tube is heated and shrinked compactly and flatly.
● Wide Adaptability to Wire Harness
By adjusting the height of heating module, the machine applies to wire harness of which sectional area is between 2.5 and 120 mm², and applies to tubes of which diameter is up to 35mm.
● Good Thermal Compensation Effect
The machine has sufficient power and fast thermal compensation.
● Good Quality of Heating, Shrinking and Cooling
After the heating-shrinking process is completed, the glue melts evenly, the tube is cooled enough and the harnesses do not adhere to one another.
● Multiple Protection
There are several ways to protect the heating module, especially when the machine crashes or when there is sudden power outage.
● Data Storing and Communicating
● The machine reserves network ports for communicating with MES system and realizes intelligent production. The temperature data can be stored, reviewed and exported in 14 days.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
