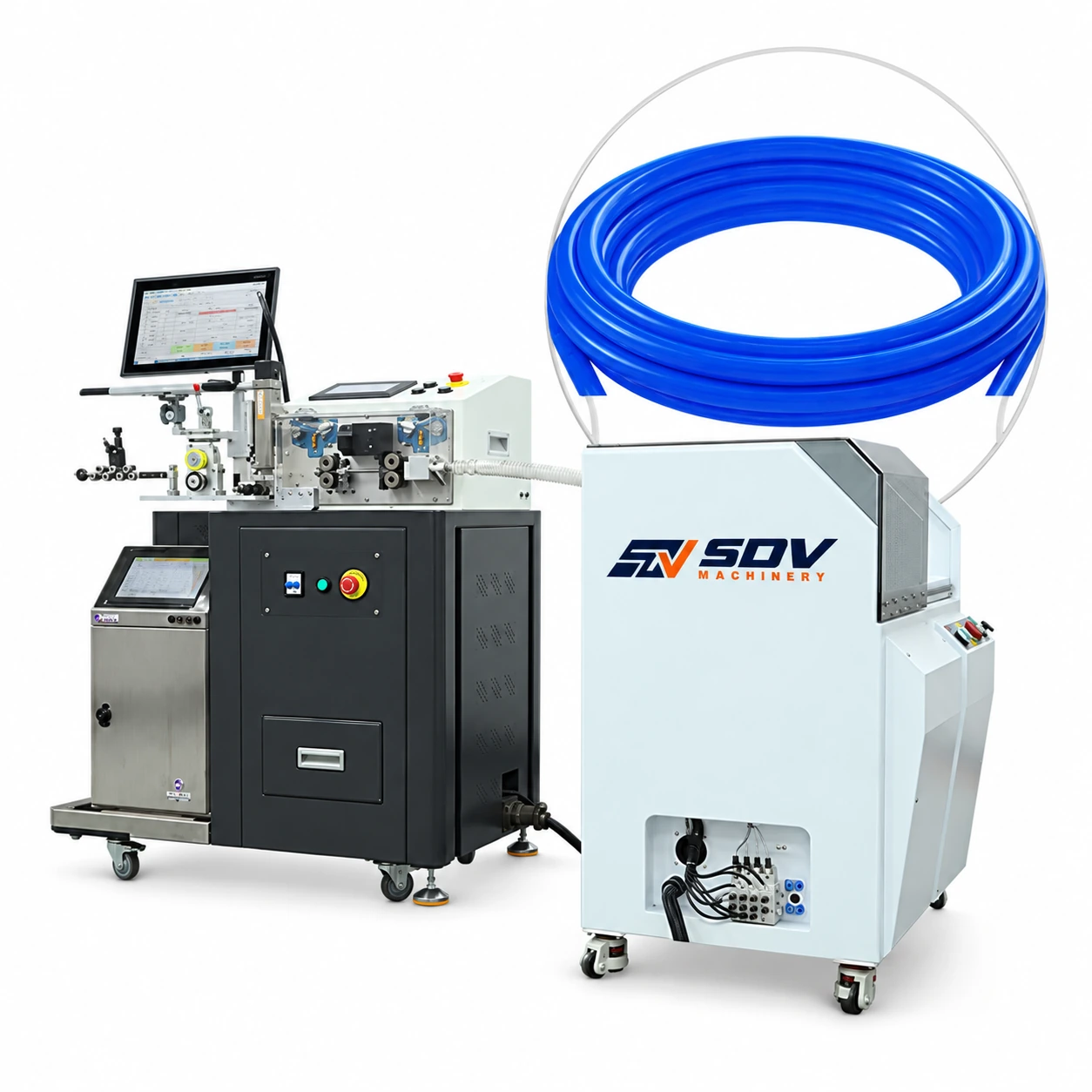

Feature
● Provide general and customized versions of Excel to realize batch and fast import of tasks.
● Production tasks can be traced back, providing daily, monthly, and annual reports.
● Hybrid stepper motor, integrated control board, mute subdivision driver, offers precise cutting and stripping, low noise, no noise pollution.
● Processing capabilities: full strip, partial strip and multi-step stripping, max 13 steps.
● Automatic correction of cutting length saves much time and ensure the cutting accuracy.
● STEP function show every single step clearly, it's very helpful for initial operation,training operator and troubleshooting.
● Detection of lack wire, when wire is used up, the machine automatically stops working and sounds alarm to report it.
● The marking position can be freely set in the program.
● The equipment is set to single-cycle mode and used in conjunction with a foot switch.
● Pressing the foot switch once, or pressing the start button, initiates cone single-cycle run
● Afterward, the processed and rolled product is manually picked up,and the cycle repeats.
● The running speed is automatically synchronized. The faster the equipment's set speed, the faster the winding mechanism follows. Different magnification ratios can be digitally set to adjust the winding size.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
