Feature

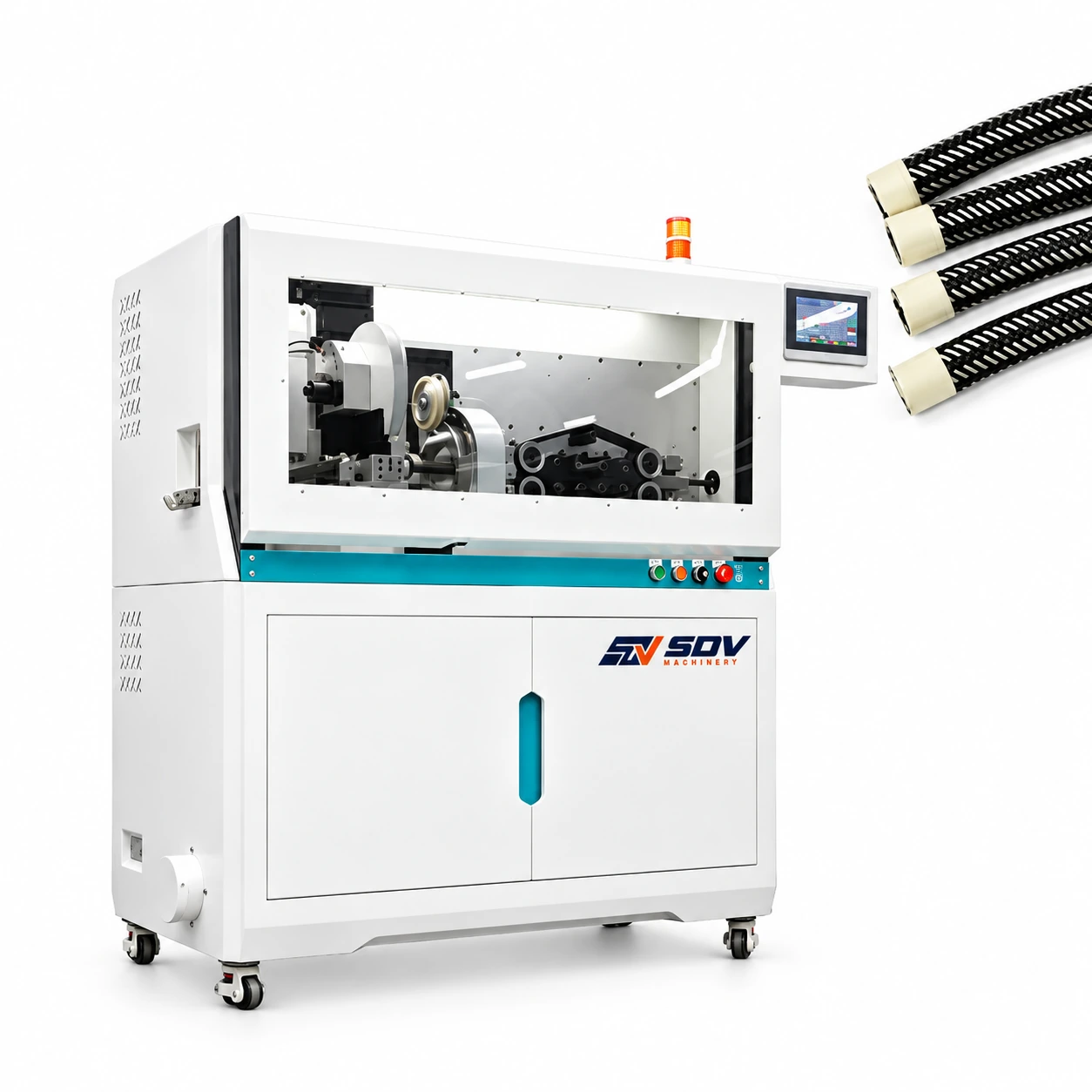

● All-in-One Cut, Strip & Inline Tape Application: Cuts, strips (head stripping 1–800 mm), and automatically wraps self-adhesive tape at specified positions in a single automated cycle.
● Scratch-Free 16-Wheel Belt Feed System: Heavy-duty belt feed mechanism prevents cable surface embossing, clamping marks, or sheath damage on flexible PVC tubes and soft copper bars.
● High Precision & Speed (Up to 1,800 pcs/h): Servo-driven cutter combined with belt feeding achieves tight tolerances (0.002 × L for wire / 0.003 × L for hose) at throughputs up to 1,800 pcs/h.
● Broad Material Versatility (Up to Φ33 mm OD): Easily processes multi-conductor cables, flat ribbon wires, flexible PVC tubing, corrugated conduits, and soft copper rows up to 30 mm (customizable to 50 mm).
● Smart Feed Detection & Special Functions: Features automatic wire feed detection, pressurized stripping, head conduit full stripping, and optional take-up manipulators for complete end-to-end automation.
Application Range
● Automotive & EV Heavy Cable Assembly: Synchronized cutting, stripping, and taping for battery cables, high-voltage lines, and protective tubing.
● Industrial Control Cabinets & Soft Copper Bars: Clean, scratch-free feed processing for soft copper rows and heavy multi-core control cables.
● Medical & Industrial Flexible Hose Processing: Precise cutting and tape-marking for protective sheath tubes, PVC hoses, and conduits.
● Consumer Electronics & Ribbon Cables: High-speed processing for flat ribbon wires requiring localized taping and head insulation stripping.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
