Feature

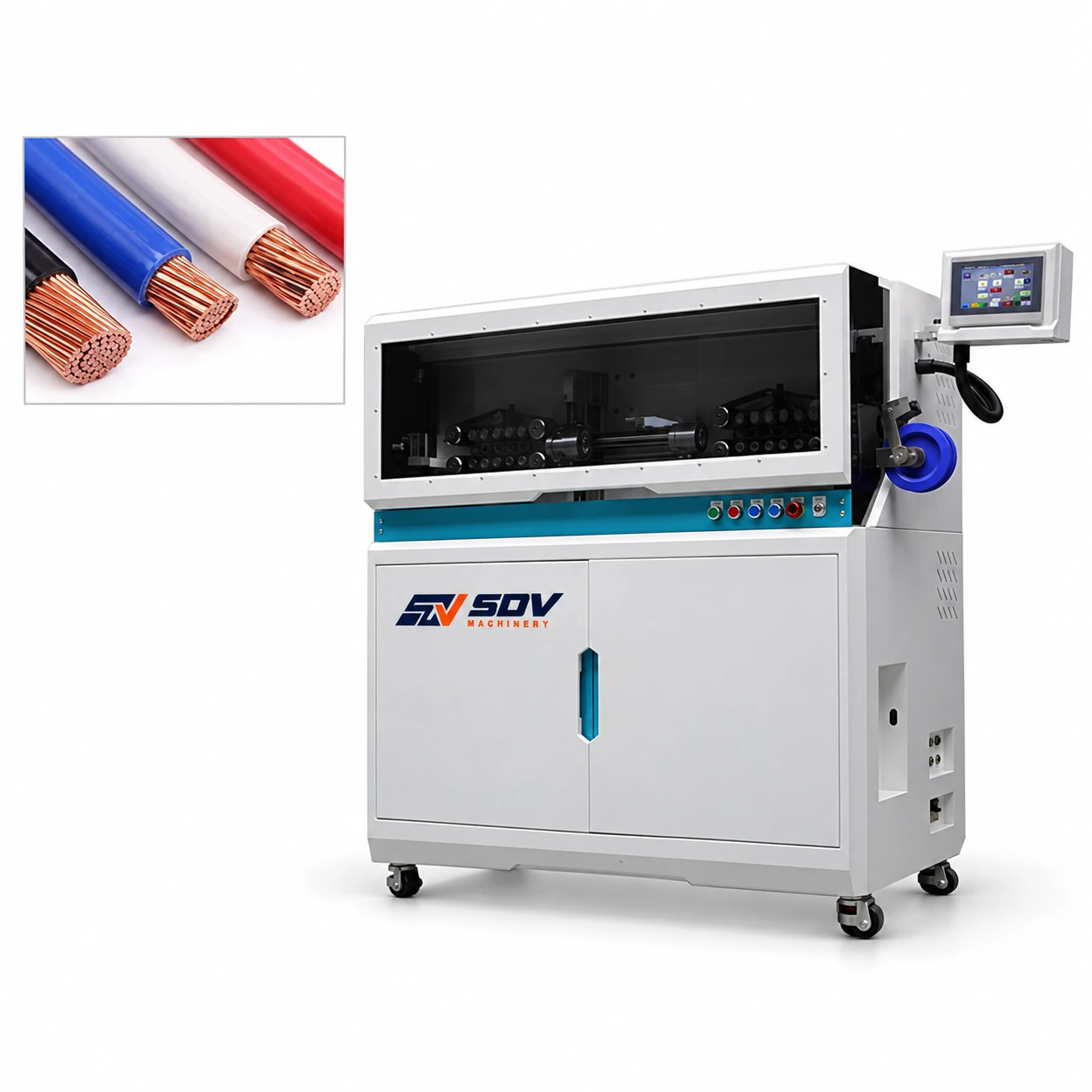

● Uncompromising 300 mm² Extreme Processing: Engineered to cleanly cut and strip heavy high-power industrial cables, vehicle battery links, and marine electrical wires spanning from 10mm² up to an ultra-thick 300mm² (with an outer diameter of up to 38 mm).
● 28-Wheel Separate Servo Roller Drive: Moving away from traditional shared gears, each roller set in the 28-wheel drive system is powered by its own dedicated, independent servo motor. This eliminates mechanical backlashes, guarantees 100% synchronized feeding speed, and prevents belt-slip on heavy coils.
● Double Blade Holder with High-Torque Servo: Features an upgraded dual-blade holder powered by an enhanced high-torque servo motor. This setup allows you to run standard 'V' stripping blades alongside specialized radius (die) blades simultaneously.
● Smart Synced Coiling with Circular Safety Guard: Includes an integrated heavy-duty coiler with an automated up/down circular cover. The rewinding speed automatically synchronizes with the main cutting machine. Operators can digitally adjust the magnification ratios on the HMI to control the tightness and diameter of the finished coil.
● Semi-Automated Operator Protection Loop: Pressing the foot switch or start button automatically drops the robust safety shield before any feeding or spinning starts. Once the single-cycle cutting, stripping, and coiling are complete, the guard automatically raises, allowing safe and effortless manual pickup of the finished product.
● 100-Recipe Digital Memory Program: Save up to 100 processing profiles directly on the touchscreen. Parameters such as cutting length, stripping length, and pull-off distance can be modified and loaded instantly, cutting changeover times to under a minute.
Application Range
● High-Voltage Battery Cable Harnessing: Efficiently cuts and strips large 200mm² to 300mm² orange copper conduits for electric vehicle (EV) battery packs and electric buses.
● Heavy Electrical Grid Panels: Prepares heavy-gauge single-core feeder cables for connection to heavy-duty terminal lugs inside switchgear and substation panels.
● Industrial Generator & Marine Cables: Handles thick multi-core jacketed lines and heavily shielded control cables used in harsh maritime and wind-power generator environments.
