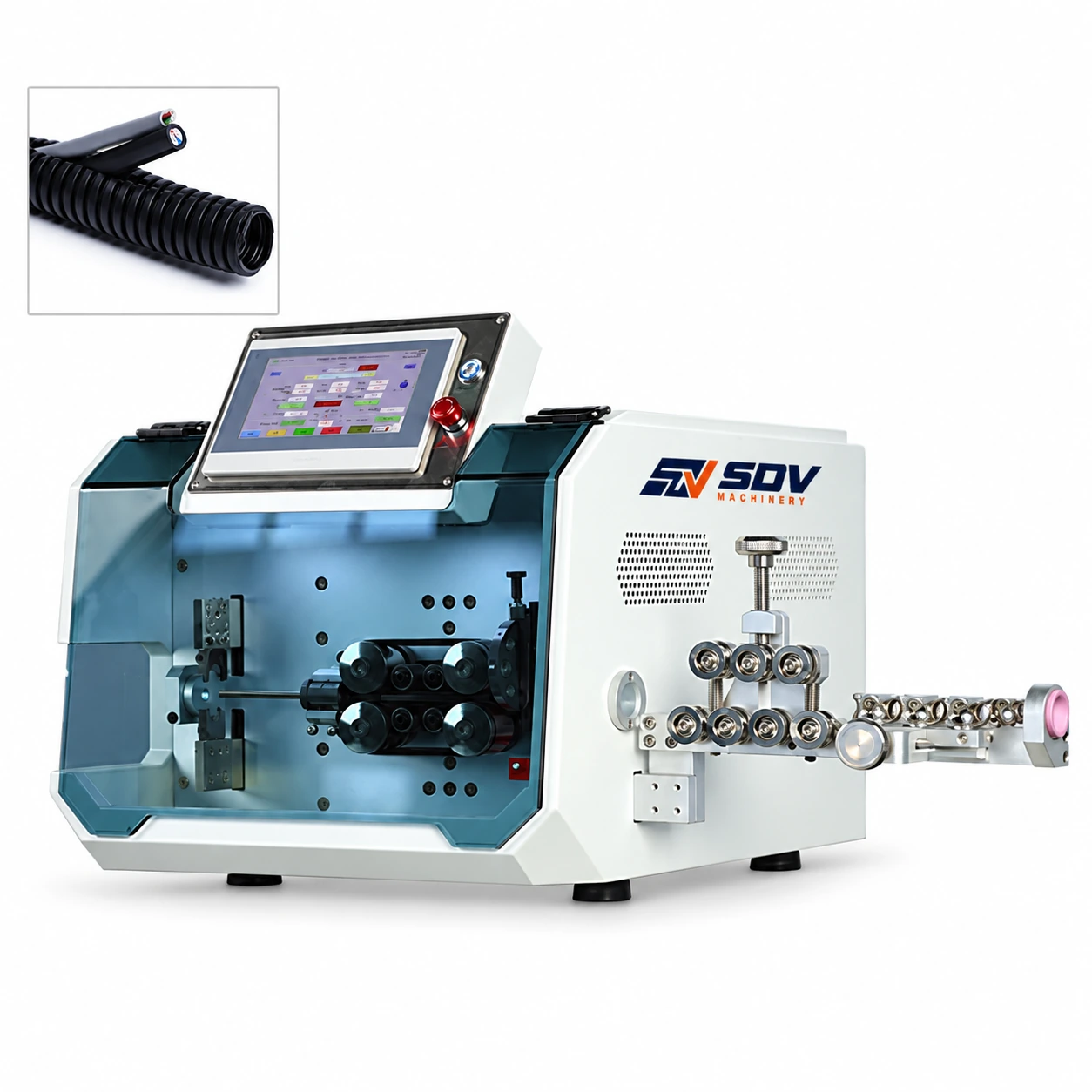

Feature
● 16-Wheel Scratch-Free Belt Drive: Utilizes a 16-wheel belt conveyor system paired with digital height adjustment. This broad contact area distributes feeding traction evenly, allowing high-force feeding of rigid PVC tubing and shielded cables with zero surface indentations or jacket scratches.
● High-Speed Servo Cutter Assembly: Features a precision stepper feeding motor coupled with a servo-driven cutter holder. This dual-drive architecture achieves high-speed cycle times up to 5,500 pcs/hour while keeping cutting length tolerances strictly within ±(0.002 × L).
● Versatile Front-End Stripping Range: Equipped for automated fixed-length cutting with integrated front-end stripping—supporting full stripping from 1 to 200 mm and partial stripping up to 1500 mm for downstream terminal crimping or connector assembly.
● Modular Architecture & MES / IoT Ready: Built on an open modular framework with dedicated communication interfaces. Easily upgrades with optional MES/IoT connectivity, mid-span stripping modules, fixed-point marking devices, and peripheral auxiliary equipment alarms.
● User-Friendly 7-Inch Color HMI: Programmed through an intuitive 7-inch touch-screen interface, enabling operators to digitally adjust belt clamping pressure, store processing recipes, and recall non-standard job setups in seconds.
Application Range
● Industrial Control & Electrical Cabinet Wiring: Precision cutting and front-end stripping of single-core and multi-core power leads.
● Automotive & EV Wire Harness Assembly: Automated preparation of heavy-gauge cabling and shielded communication lines.
● Plastic & PVC Tubing Fabrication: Fixed-length high-speed cutting of PVC sleeves, protective conduits, and industrial hard piping up to 18 mm OD.
● Contract Electronics Manufacturing (EMS): High-mix, high-volume production lines requiring fast job recall and zero jacket surface damage.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
