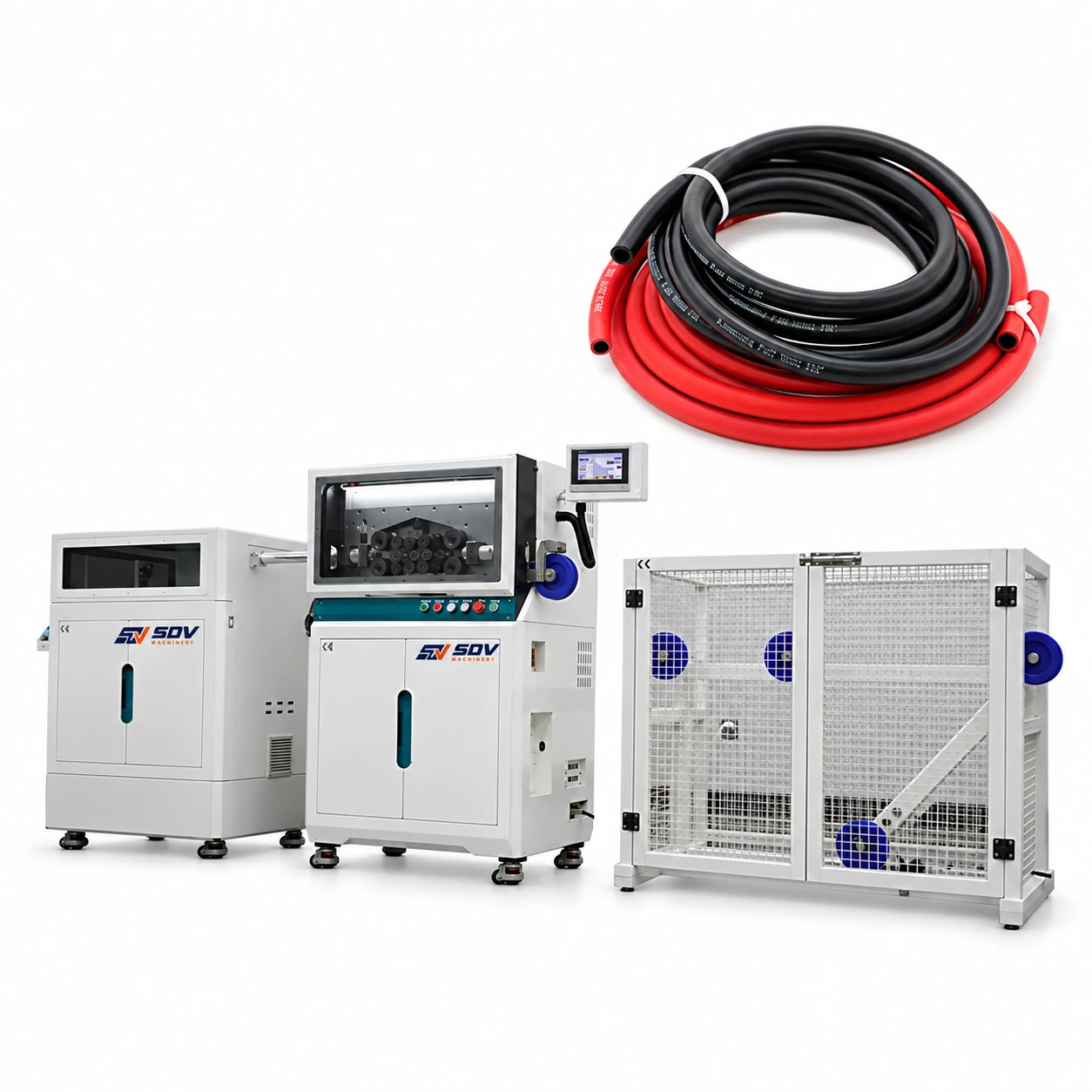

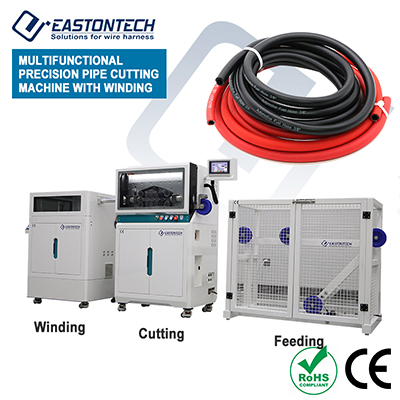

Feature
● 14-Wheel Scratch-Free Belt Transport: 14 synchronized drive wheels paired with wide belt feeding distribute clamping force evenly, guaranteeing zero indentation or surface damage on soft or smooth-walled tubes.
● Servo Motor & Precision Ground Ball Screw Cutter: Servo-driven tool holder with ground ball screw execution provides precise digital adjustment for both upper and lower blade limits, delivering clean shearing cuts across thick-walled hoses.
● Synchronized Automatic Winding Unit: Automatically coils cut materials into uniform bundles with inner diameters from 200 to 680 mm at up to 1.5 m/s with intelligent speed adaptation to prevent tension jerks.
● Airless 100% Electric Operation: Operates fully on electric power without requiring an external compressed air supply, lowering operational noise, maintenance overhead, and energy consumption.
● 7-Inch Touchscreen HMI & IPC Compatibility: Intuitive touchscreen setup allows rapid input of cut lengths, batch limits, and digital roller height adjustments, with optional IPC connection for automated batch scheduling.
Application Range
● Automotive & Fluid Transfer Hoses: High-speed cutting and automatic coiling for low-pressure fuel lines, air conditioning hoses, coolant lines, and radiator tubing.
● Electrical Insulation & Heat Shrink Tubing: Mark-free, fixed-length sectioning for soft PVC sleeves, corrugated conduit, and thin-walled heat shrink tubes.
● Industrial Pneumatic Lines: Batch processing for polyurethane (PU) air hoses, polyamide (PA) tubing, and flexible rubber hoses.
● Heavy Wire & Cable Harnesses: Automated feeding, shearing, and large-diameter bundle winding for industrial power cables and multi-core wiring.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
