Feature

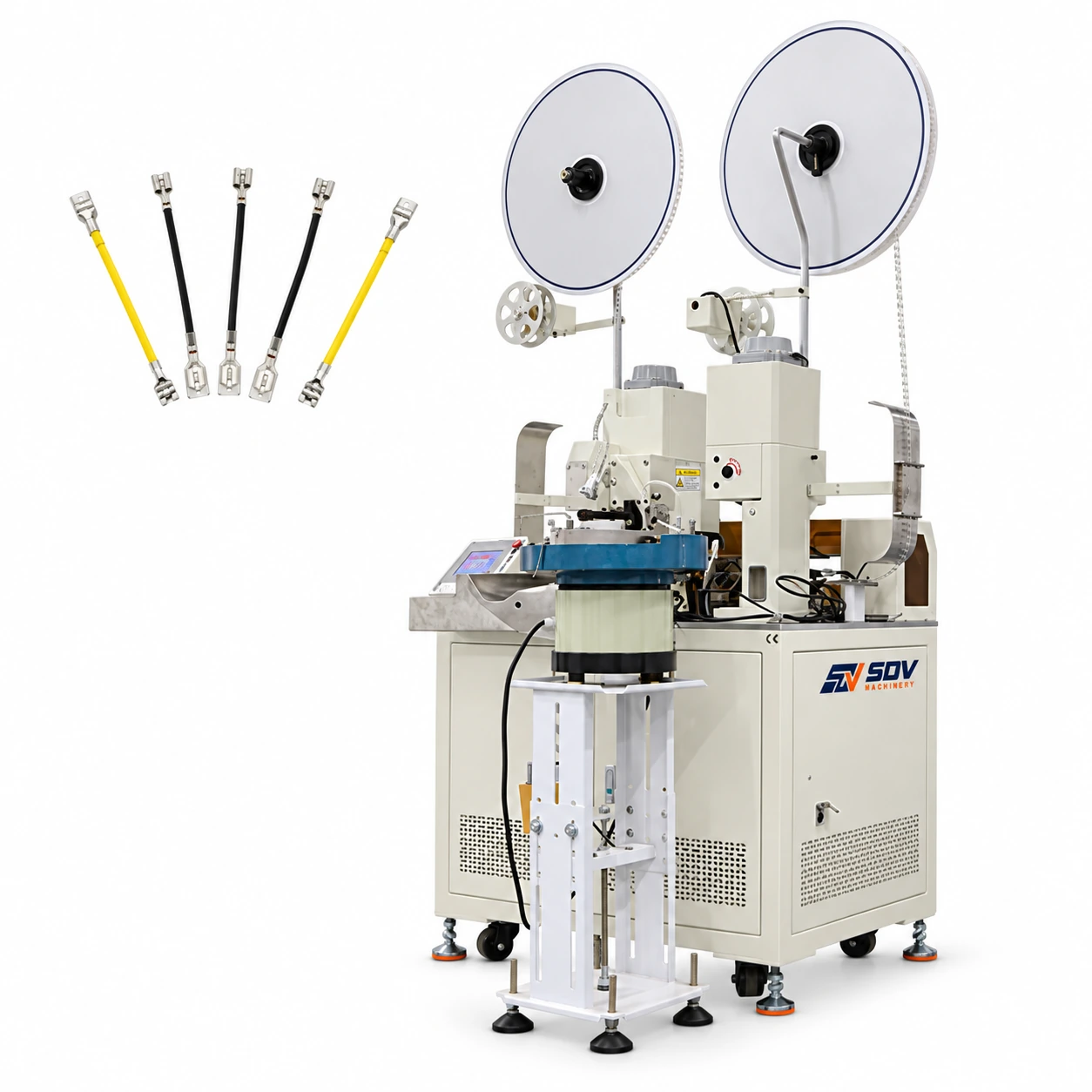

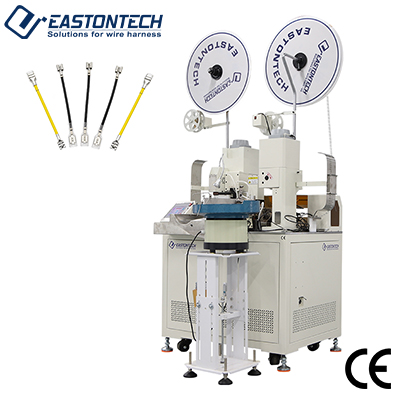

● Fully Automated 4-in-1 Process: Streamlines your workflow by executing wire cutting, dual-end stripping, automated plastic protective sheath feeding/threading, and heavy-duty terminal crimping in a single cycle.
● Heavy-Duty 3.0T Press Capacity: Features an adjustable 2.0T to 3.0T crimping force with a standard 30mm stroke, providing gas-tight connections for both standard straight and flag terminals.
● Universal Sheath Adaptability: Highly optimized for standard global quick-connect electrical boots, including 110, 187, and 250 type straight pipe insulating sheaths.
● Broad Gauge & Extreme Length Scale: Handles a versatile wiring range from AWG 26 to AWG 14 with an ultra-wide programmable cutting length from 60mm up to 99999mm ($\pm2\%$ cutting precision).
● Automotive-Grade QC Add-ons: Supports high-end optional integrations like CCD Visual Inspection (for strip accuracy and layout checking) and Crimp Force Monitoring (CFM) to achieve 100% real-time defect sorting.
● Slim Floor Footprint: Packs this heavy 300Kg system into a space-efficient frame measuring just 800×700×1800mm, operating reliably on universal 110V/220V (50/60Hz) factory grids under 0.5-0.7Mpa air pressure.
Application Range
● White Goods & Home Appliances: Mass production of internal power lines, heating elements, and switch harnesses for washing machines, microwave ovens, and refrigerators requiring 187/250 insulated terminals (Highly targeted at manufacturing hubs in Mexico, Poland, and Turkey).
● HVAC & Industrial Control Panels: Fast termination of relay wires, compressor bundles, and capacitor circuits that demand strict electrical shock-proof sheath isolation.
● Automotive Electrical Components: Prepares localized sub-harnesses, fuse link connectors, and sensory clusters complying with Tier 1 quality tracking mandates.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
