Feature

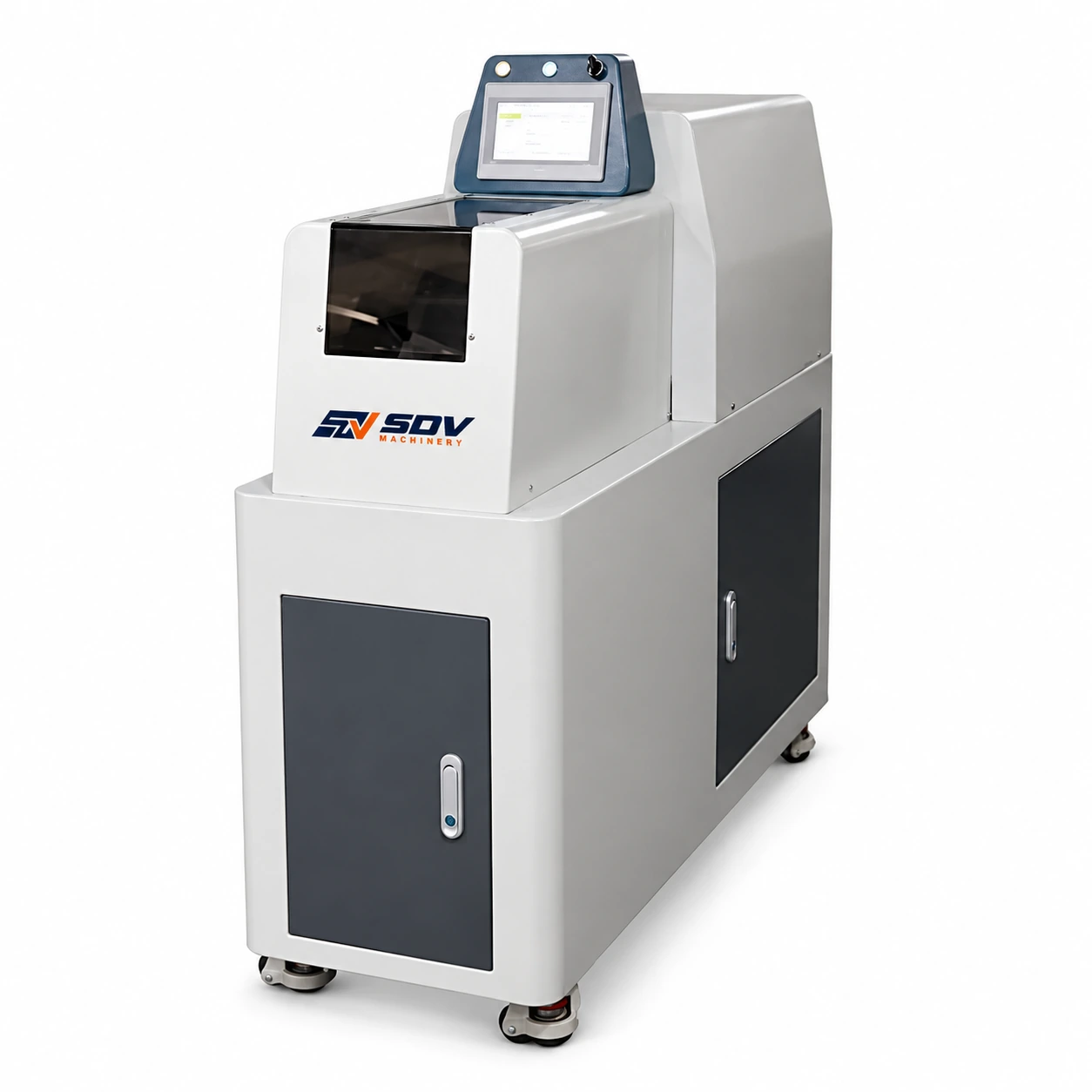

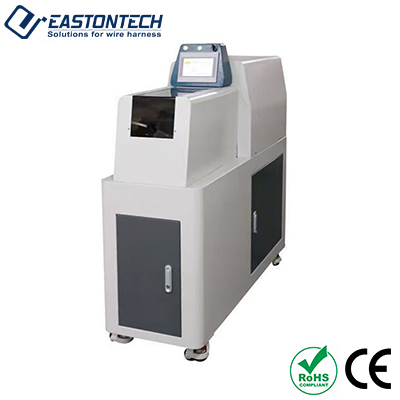

● Up to 9-Layer Stripping (OD 3–30 mm & 300 mm Length): Handles small to extra-large communication cables, stripping up to 9 distinct layers across long strip distances up to 300 mm in a single automated pass.
● 4-Blade Tungsten Steel Head & Ball Screw Drive: Combines 4 heavy-duty tungsten steel rotating blades with a 2000 W motor/ball screw drive to deliver 0.01 mm depth precision and vibration-free cutting.
● Zero-Tooling Changeover & 99 Memory Recipes: Processes different cable diameters without swapping cutters, saving all rotation speed, strip depth, and feed parameters to a 99-recipe touchscreen memory.
● Program-Controlled Auto Self-Centering Clamp: Automatically aligns cables from 3 to 30 mm along the central rotary axis while controlling clamping force dynamically to prevent crushing soft insulation layers.
Application Range
● High-Power RF & Cellular Infrastructure: Precision stripping for thick 50-ohm feeder cables, base station jumper lines, and antenna feed lines.
● Aerospace, Radar & Military Wiring: Multi-layer cable preparation for heavy military-spec coax, radar signal leads, and avionics communication feeds.
● Broadcasting & Offshore Cable Assemblies: Clean, repeatable multi-layer jacket removal on heavy broadcast transmission lines and marine communications cabling.
● Heavy Industrial Communications: Processing large shielded multi-core control cables requiring deep jacket stripping up to 300 mm.
Feature ● Wire cutting, single (or double) end stripping, single (or double) end crimping, single end insertion of heat-shrink tub and heating, single end sleeve inserting machine ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Functions: Wire cutting, single/double-ended stripping, single/double/parallel-ended crimping, single/double/parallel heat-shrink tubing application. ● The entire machine supports customisation across multiple aspects, including cutting and stripping lengths. ● Optional crimping force monitor equipment（CFM） and visual inspection equipment
Feature ● Equipped with high-precision servo motors for cutting and stripping mechanisms, the system delivers exceptional accuracy and consistency in wire processing operations. The positive and negative screw structure cutting blade ensures precise stripping results, while the robust ductile iron crimping mechanism provides stable crimping height and superior rigidity for reliable terminal connections. ● Featuring an intuitive color touchscreen interface with comprehensive program memory functions, the machine enables rapid product changeover through one-key parameter recall. The modular design allows individual function modules to be activated or deactivated as needed, maximizing production flexibility and equipment utilization across different product lines and manufacturing requirements.
Feature ● Maximum Rubber Sleeve Size: Diameter 30mm, Thickness 20mm, Square 30*30*20mm. ● Production Efficiency: Average 5 seconds/hole, slight differences may occur due to thread length and plastic shell positioning. ● Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes. ● High production efficiency, saving 2-5 people and reducing manual labor intensity. ● High equipment compatibility; can achieve threading of various rubber sleeves through changeover, changeover time 15 minutes. ● High safety performance; multi-step, two-hand start-up. ● One-button switching between single and two rubber sleeve functions (customizable).
