Feature

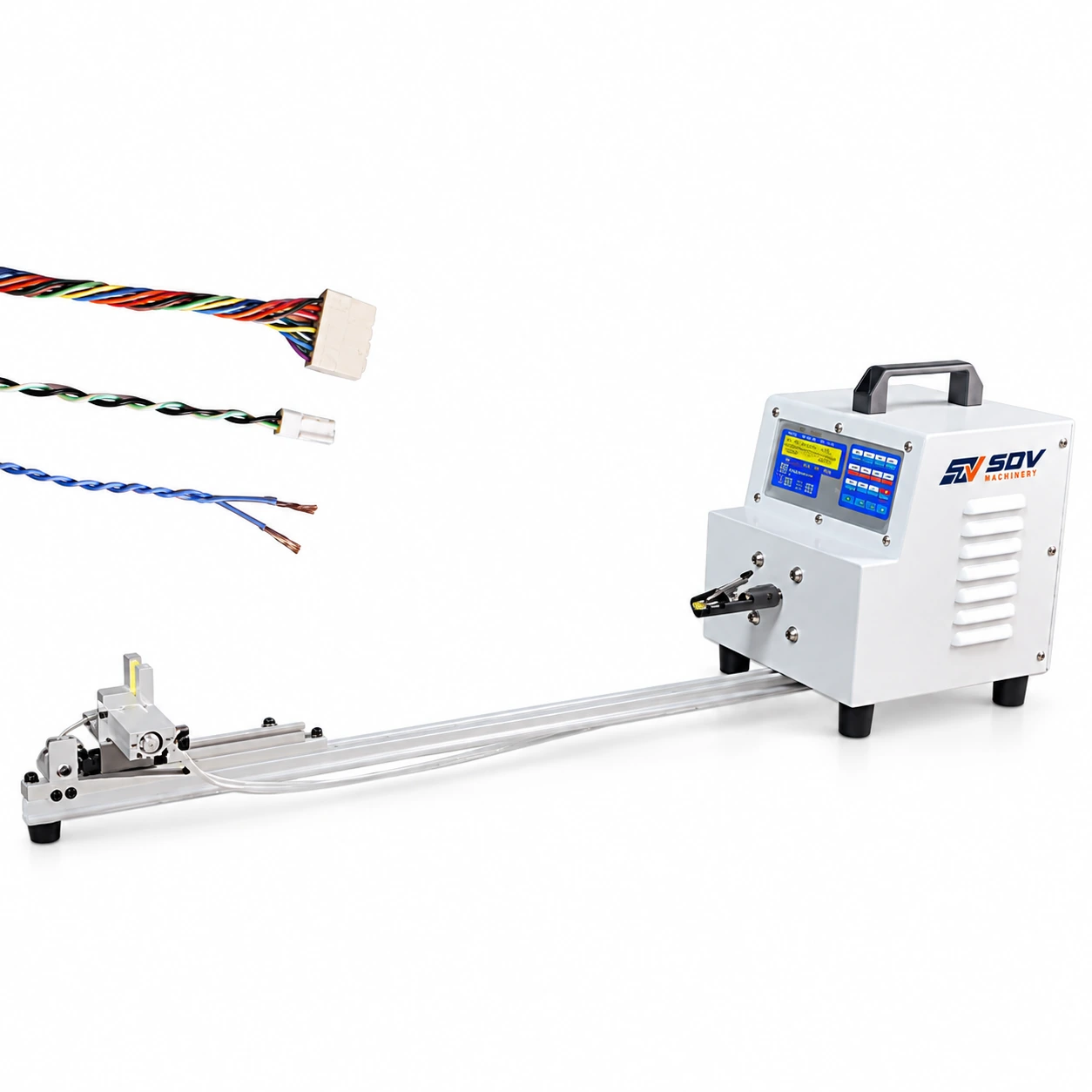

● Extended Pneumatic Sliding Table
The long sliding table design provides better support for long wires, improving twisting stability and reducing wire movement during processing.
● Adjustable High-Speed Twisting
The main motor operates from 300–5,000 rpm, allowing flexible twisting speeds for different wire materials and applications.
● Intelligent Slow-Start Protection
Nine selectable slow-start modes help reduce startup tension and minimize the risk of wire breakage when processing delicate conductors.
● Forward & Reverse Spindle Rotation
The spindle supports both forward and reverse rotation, allowing operators to adapt twisting direction for different production requirements.
● LCD Backlit Control Interface
The user-friendly LCD display simplifies parameter adjustment and makes daily operation more efficient.
Application Range
The EW-20F-4 is designed for manufacturers requiring stable twisting of long wires, making it suitable for wire harness production, electronics assembly, and industrial cable processing.
● Wire Harness Manufacturing: Twists long conductors for automotive, appliance, and industrial wire harness assemblies with improved consistency.
● Electronics Production: Suitable for signal wires and fine conductors that benefit from controlled startup and stable twisting.
● Communication Cable Assembly: Processes twisted conductors used in communication equipment and signal transmission wiring.
● Industrial Equipment Wiring: Produces twisted wires for control cabinets, automation equipment, and electrical assemblies.
● OEM Wire Processing: Adjustable twisting speed, rotation direction, and slow-start settings allow quick adaptation to different wire specifications.
